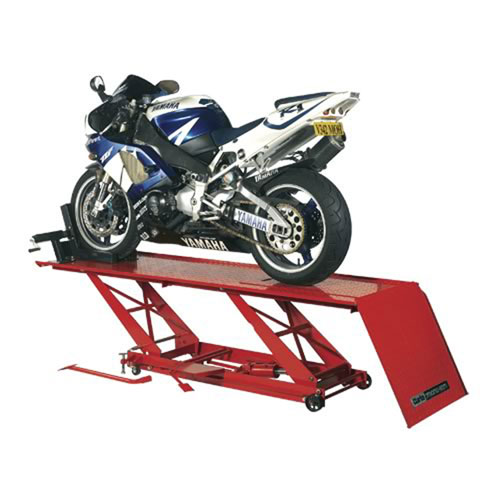

Clarke CML3Air – Air & Foot Pedal Operated Hydraulic Lift


The CML3 lift is designed to facilitate easier maintenance & repair of 2-wheeled vehicles by raising them to a comfortable working height. Controlled platform raising & lowering is performed by a hydraulic pump. This benefits from a dual operating system – compressed air operation for fast, easy lifting or manually, with a foot pedal, if there’s no source of compressed air available.

Download Product Manual


Out of stock

Notify me when this is avaliable

EAN: 5016086216995 SKU: 7610144 Category:


  • Platform dimensions – 2200mm x 685mm
  • Ramp dimensions – 685mm x 650mm
  • Maximum load 450kgs
  • Min. & Max. platform heights – 770mm raised, 177mm lowered (excl. wheel clamp)
  • Air pump requires 120 to 200psi input pressure from a min. 1hp compressor
  • Dimensions (LWH) 2790x685x770mm (fully raised). 139Kg weight
  • Please note – illustrated Motor Cycle is not included with this lift
