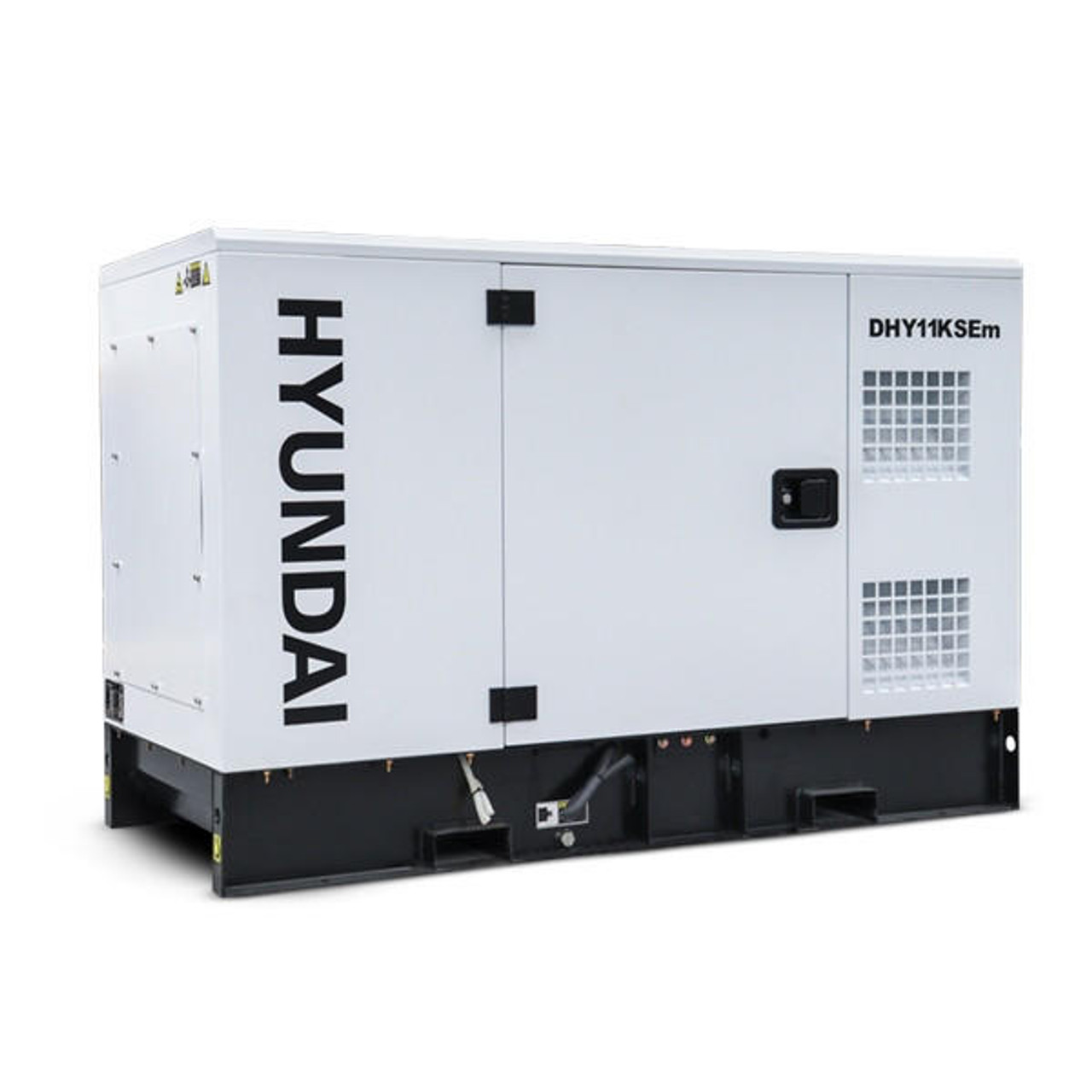

Hyundai DHY11KSEm 11kW/13.75kVA Single Phase Diesel Generator

Description

11kW Single-Phase Diesel Generator
The DHY11KSEm is a powerful single-phase diesel generator from Hyundai. Suitable for providing your home or business with either prime power, if you just have a few appliances to run, or for backup power when the national grid lets you down, this diesel gensets has a maximum output of 14KVA.
Powered by a 13hp HY390 diesel engine, the DHY11KSEm is able to produce a maximum output of 13.75KVA / 11kW backup power and 12.5KVA / 10kW prime power.
ATS Compatible Hyundai Generator
The DHY11KSEm can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system, which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off.
This is ideal for those who need to guarantee constant power – for example, if you run servers or have refrigeration units.

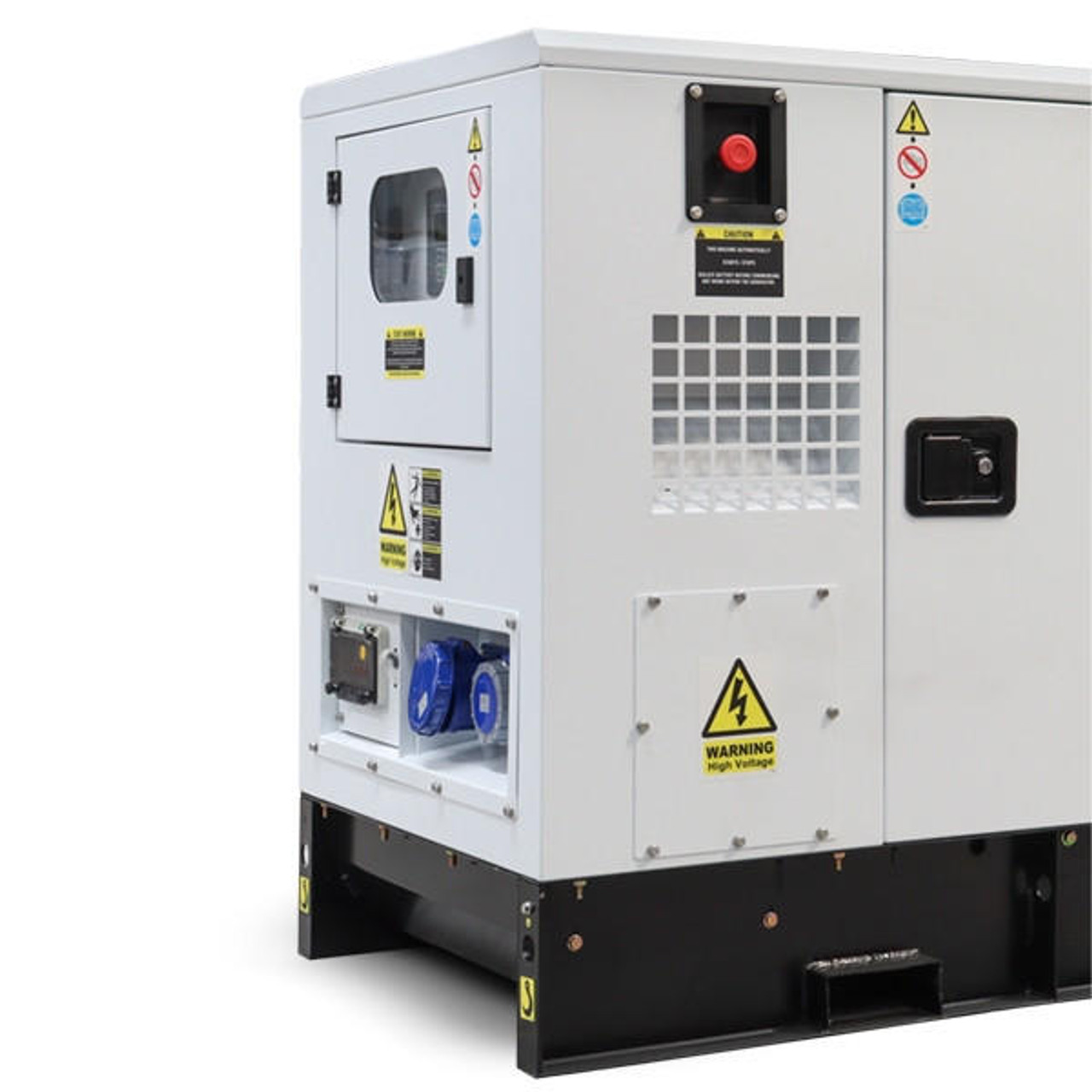

Silenced Generator

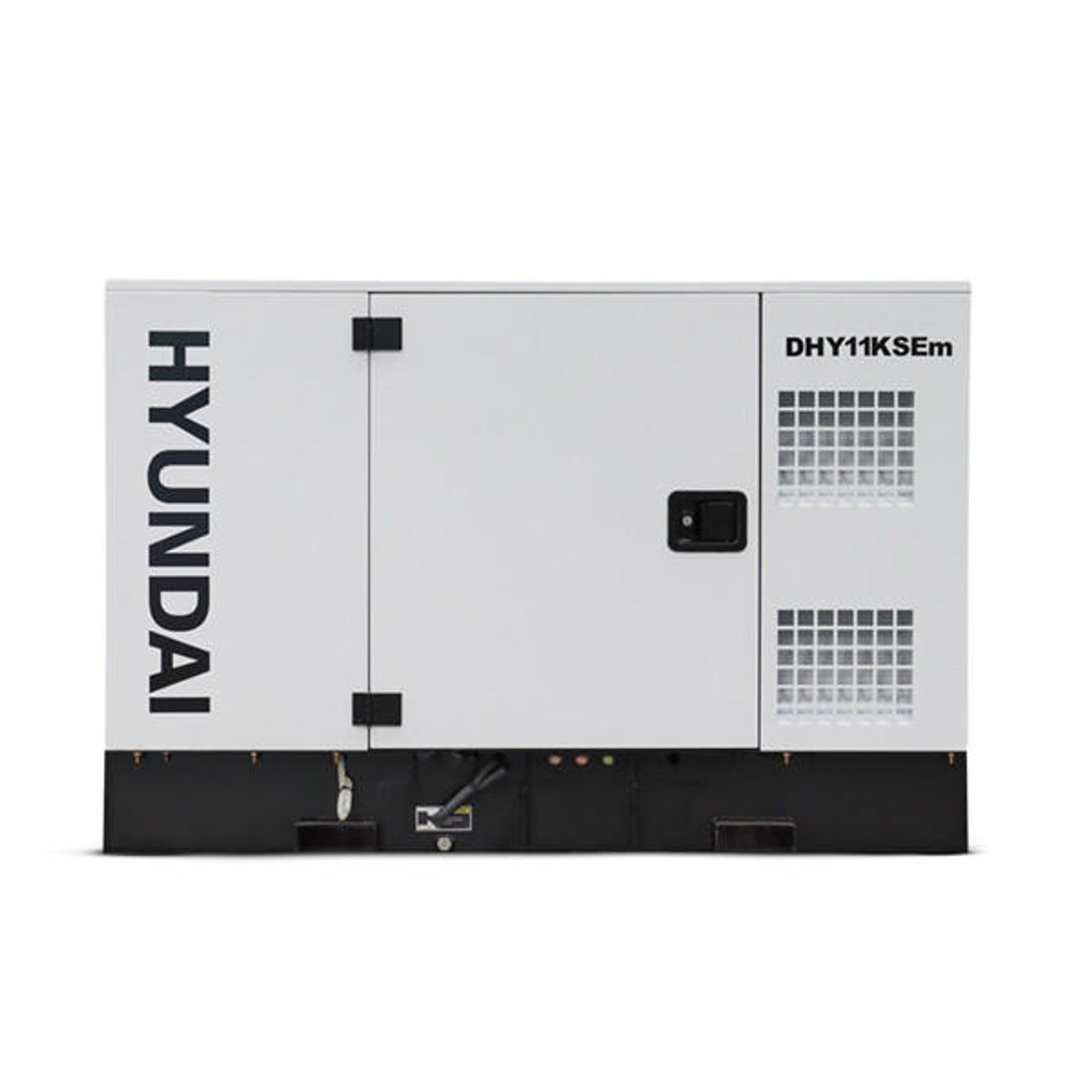

Housed in a weather-proof ‘silenced’ canopy, the DHY11KSEm produces only 64dB @ 7 metres which makes it a quiet standby generator which won’t interrupt you at home or work.
Diesel generators are ideal for backup applications as sometimes petrol can go stale and prevent a generator working. Our diesel generators also run happily on budget-friendly red diesel, without voiding the warranty and making it cost-effective to refuel.
1500rpm Generator
1500rpm diesel generators are ideal for static installation for daily prime power, as well as for regular standby generator/backup generator use.

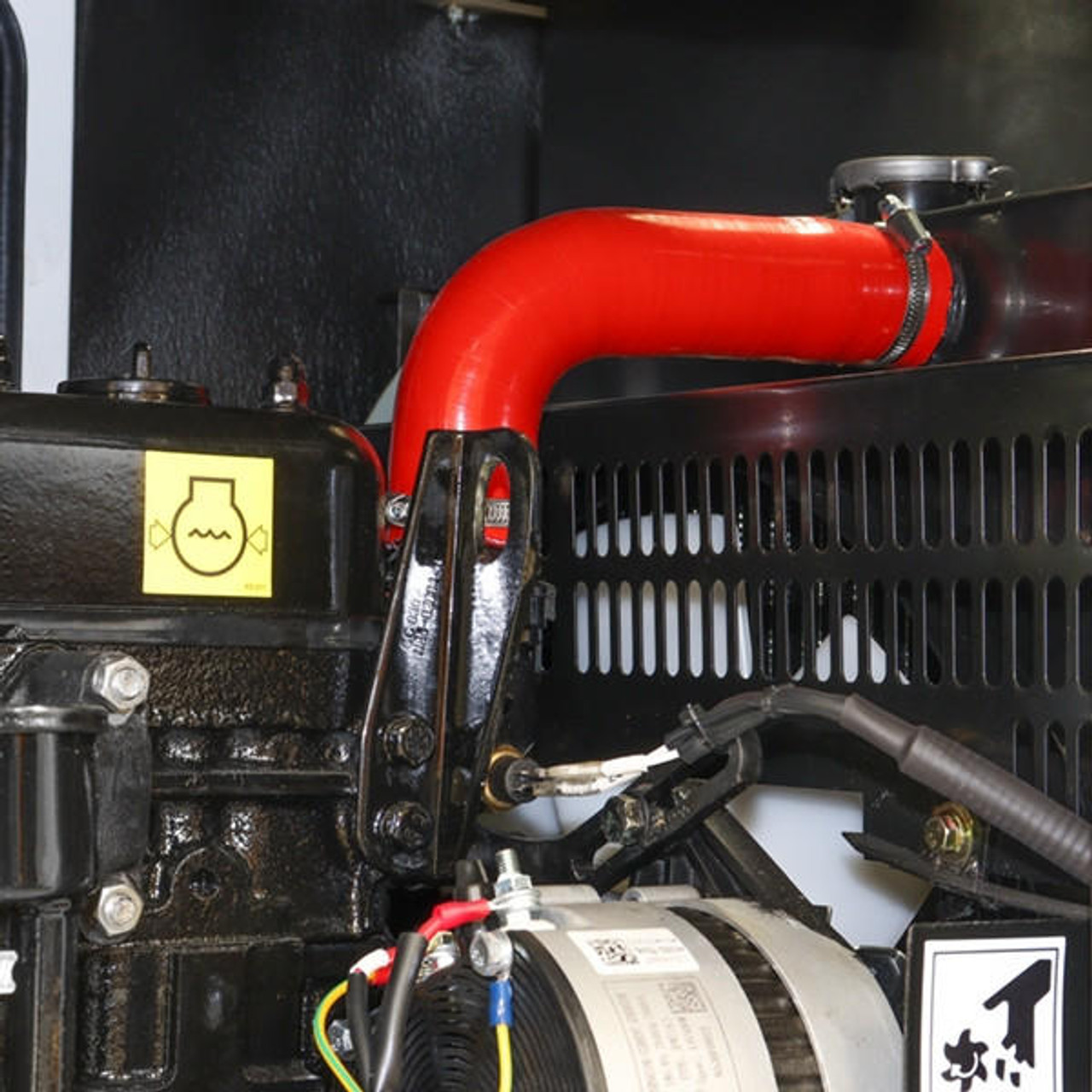

1500rpm generators have slower running, water-cooled engines which are less stressed than 3000rpm generators, which make them the best option if you’re going to use your generator as your main power source and will also prolong its lifespan.
Equipped with an AVR alternator to produce clean energy, the DHY11KSEm is suitable for powering sensitive electronic equipment, such as televisions, PCs and laptops, in your home or business.
Delivery
Kerbside delivery is included in the price. However, please note that a forklift will be required for unloading.
2 Year Warranty
This 14kVA diesel generator comes with a 1 year / 1,000 hour warranty which can extended to 2 years* (subject to standby use of 500 hours per year – terms apply) with full UK parts and service backup for added peace of mind. Read our warranty terms here.
Generator kVA Ratings
All of our single-phase generators have a kVA rating that is higher than the kW. This is because we have assumed the appliances you are going to power have a load factor/power factor of 0.8 – therefore the ‘assumed’ kVA rating of the load would be higher. This is industry standard and it is usually best to scope the right unit based on the kW.
Key Features
Single-phase diesel generator: Produces up to 14kVA of backup power and 12.5KVA of prime power
Powered by a 1500rpm engine: Extends the lifespan of the generator
Fitted with an AVR alternator: Able to produce a clean energy output
Silenced generator: Housed in a weather-proof canopy, producing only 64dB at 7m
ATS compatible: Automatically transfers power to the generator in the event of a power cut
Peace of mind: Up to 2 year Hyundai warranty* (terms apply)

  • Single-phase diesel generator: Produces up to 14kVA of backup power and 12.5KVA of prime power
  • Powered by a 1500rpm engine: Extends the lifespan of the generator
  • Fitted with an AVR alternator: Able to produce a clean energy output
  • Silenced generator: Housed in a weather-proof canopy, producing only 64dB at 7m
  • ATS compatible: Automatically transfers power to the generator in the event of a power cut
  • Peace of mind: Up to 2 year Hyundai warranty* (terms apply)

£6,304.99

Out of stock

Notify me when this is avaliable

EAN: 700621496205 SKU: DHY11KSEm Category:

Specification

Model DHY11KSEm
Rated/Prime kVA* 12.5
Rated/Prime kW 10
Max/Standby kVA* 13.75
Max/Standby kW 11
Phase Single
Voltage 230

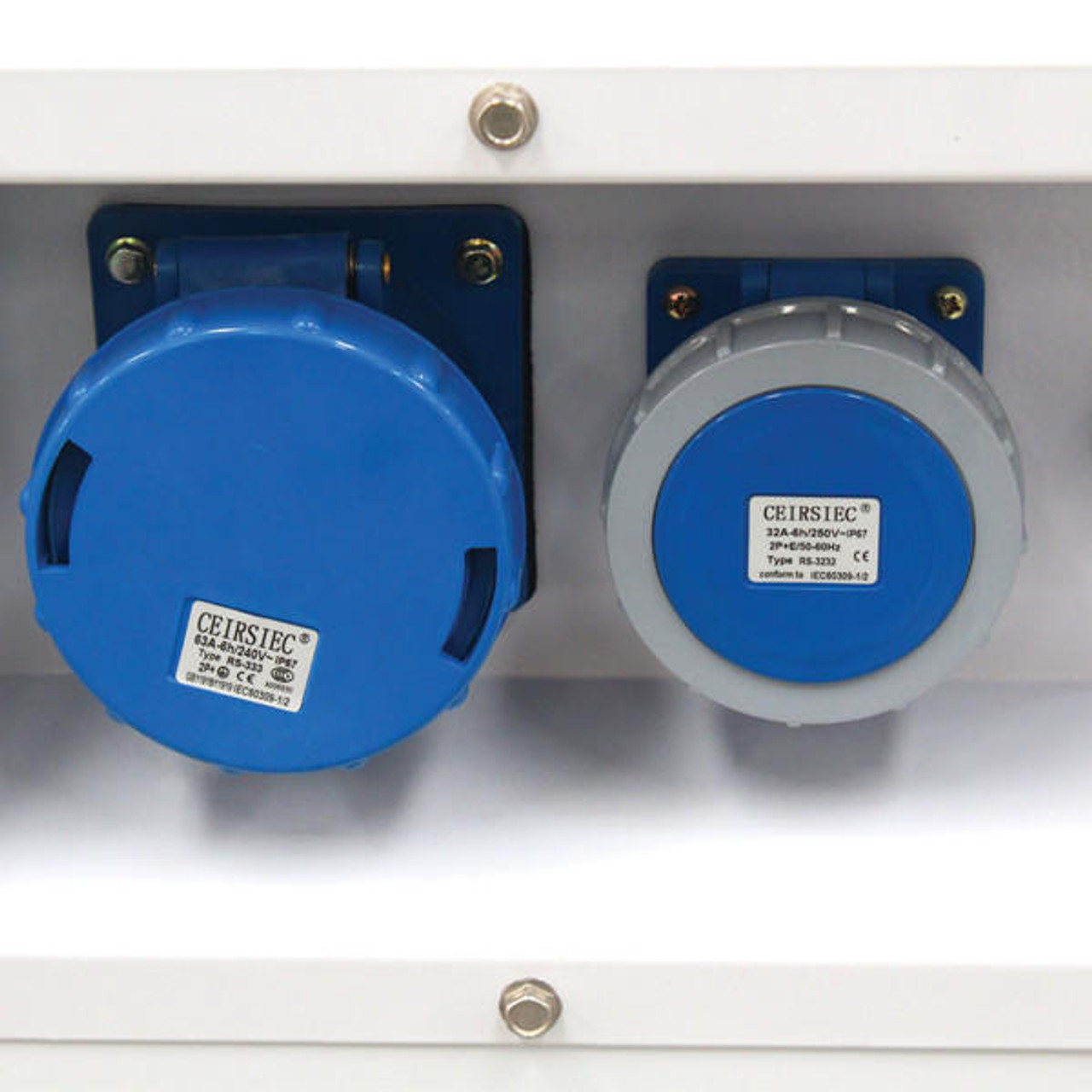

Connection Method(s) 1 x 230V/32A 1 x 230V/63A
Rated Speed (RPM) 1500
Frequency (Hz) 50
Max/Continuous Current (Amps) 47.8 / 43.5
Power Factor (Cosφ) 1
Fuel/Power Source Diesel

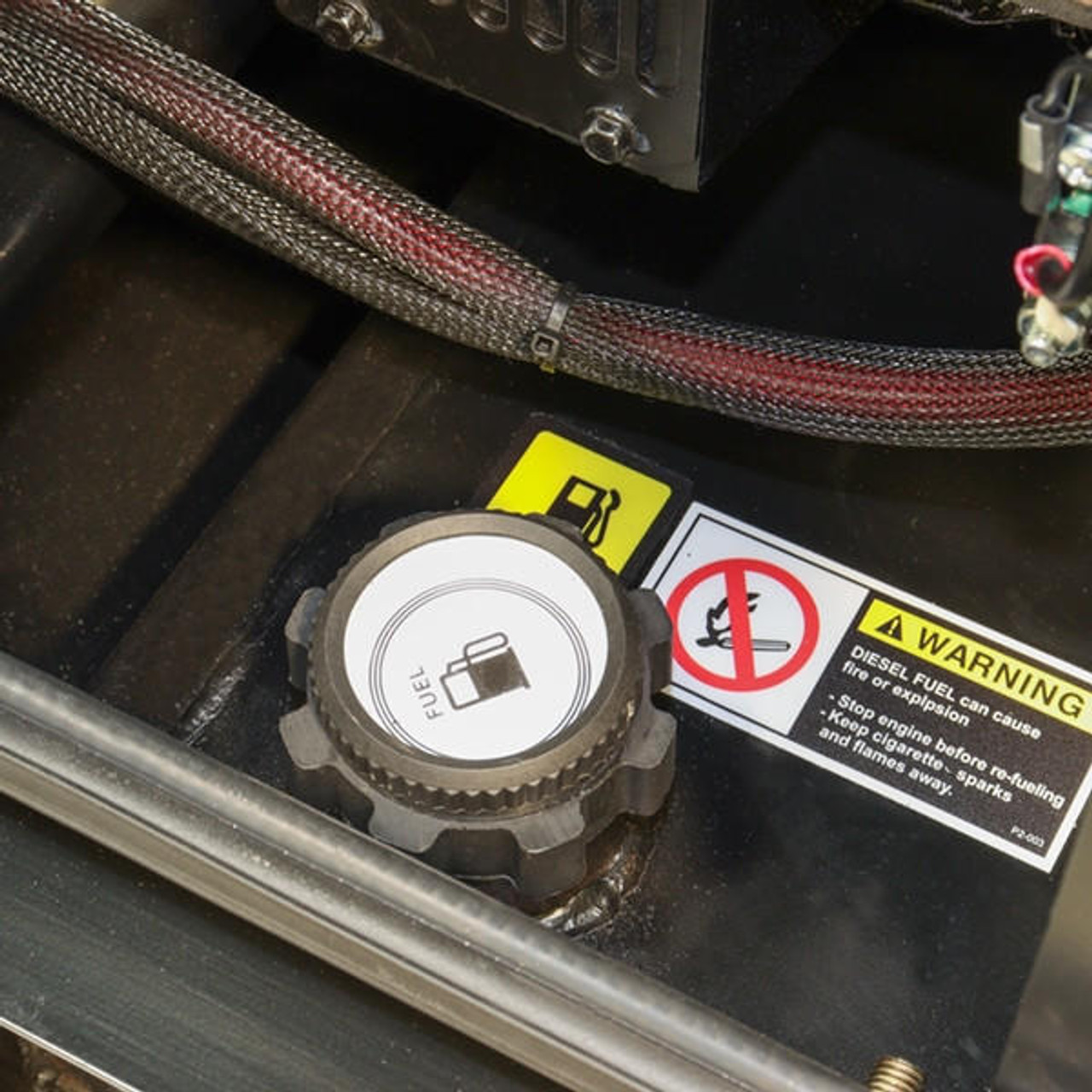

Fuel Tank (Litres) 46
Runtime (Hours) @ 100% Load 12.11
Noise Level @ 1m 75% load (dB) 62
Noise Level @ 7m 75% load (dB) 62

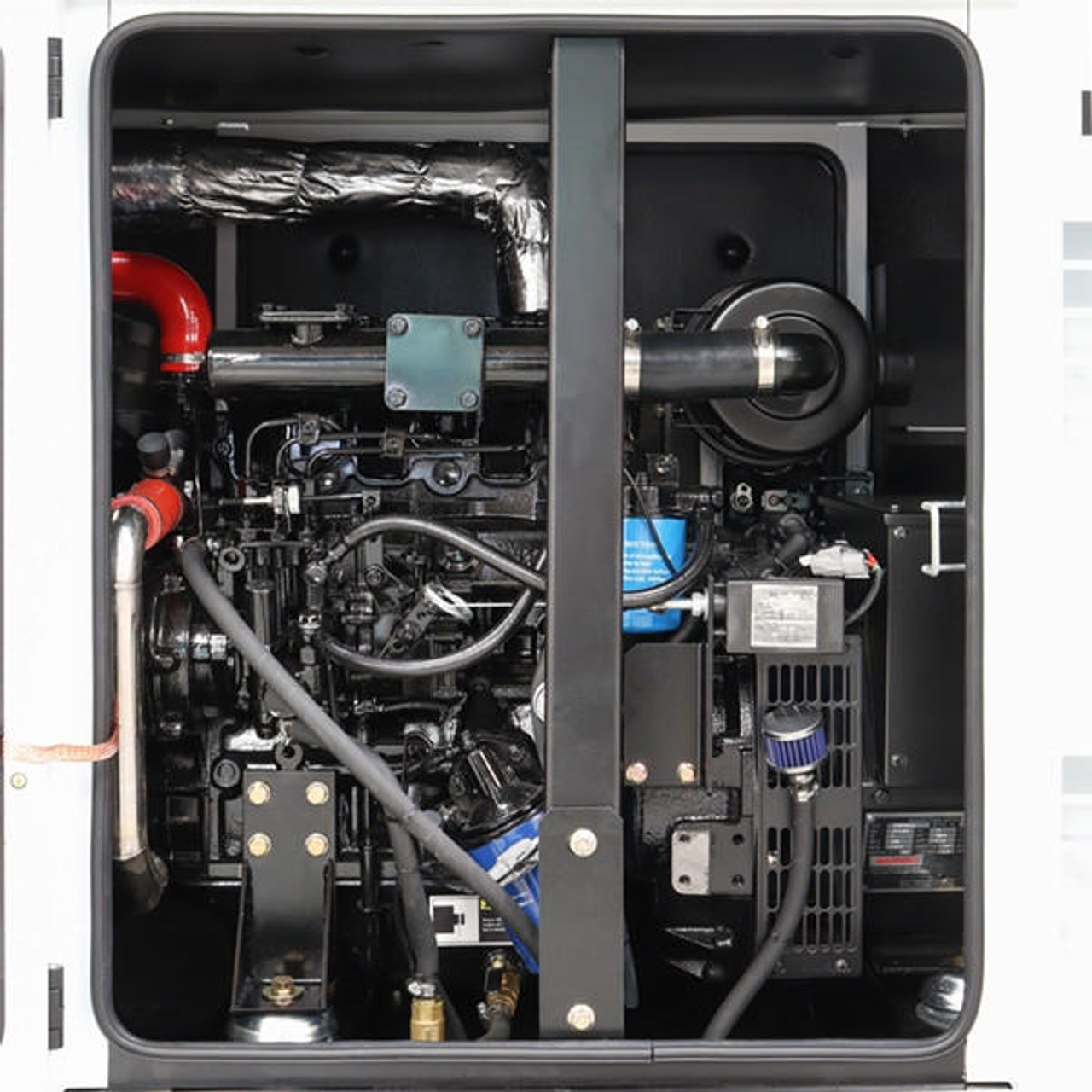

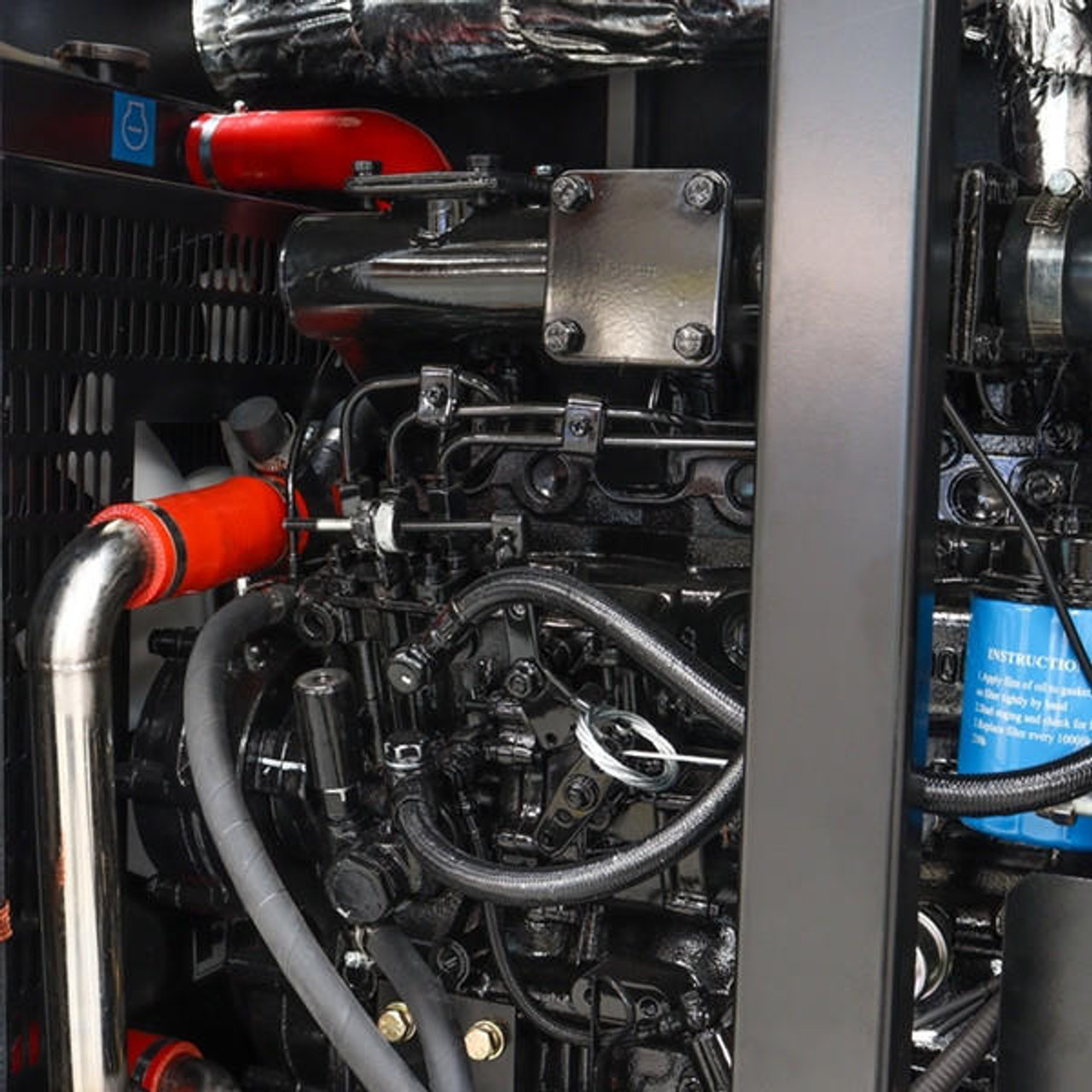

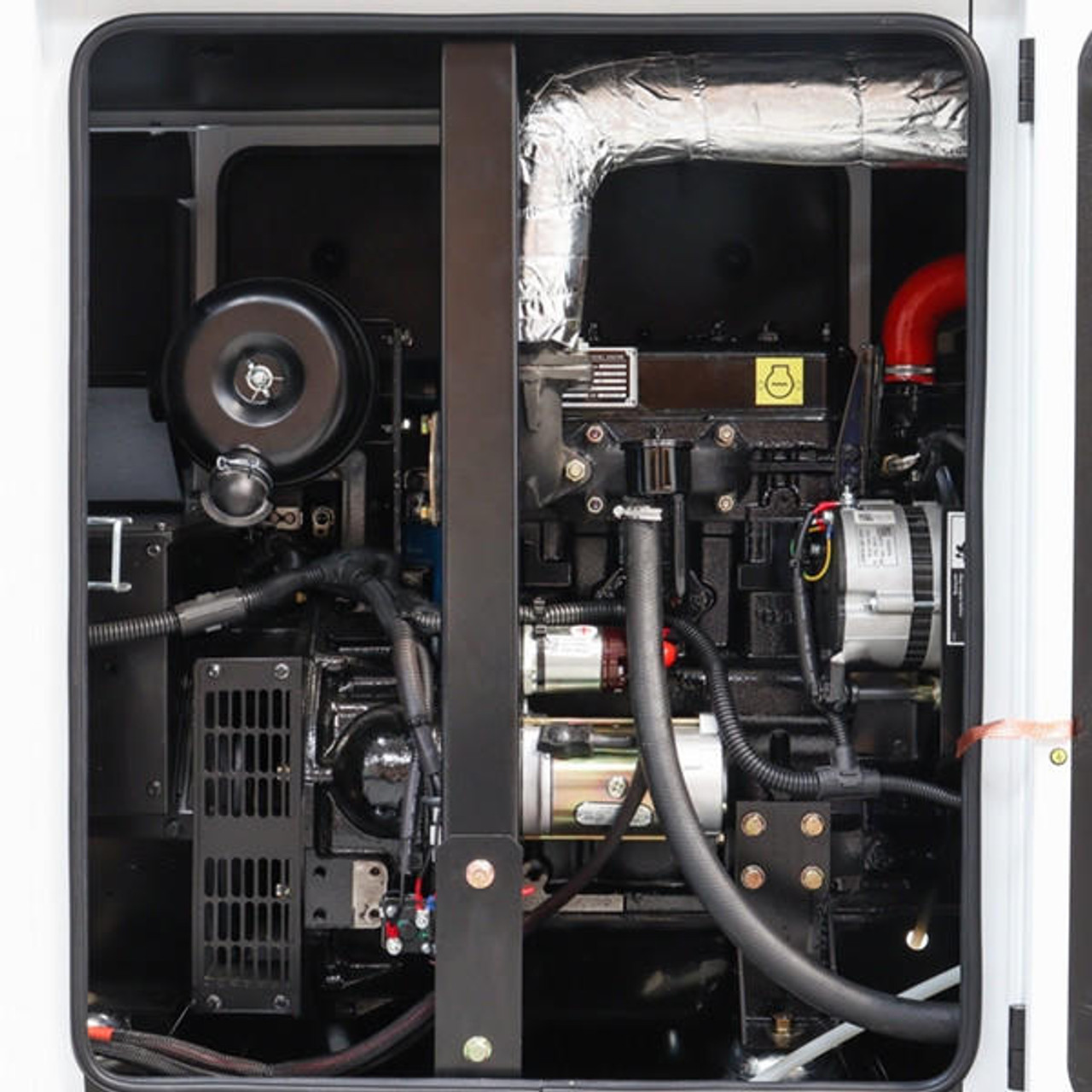

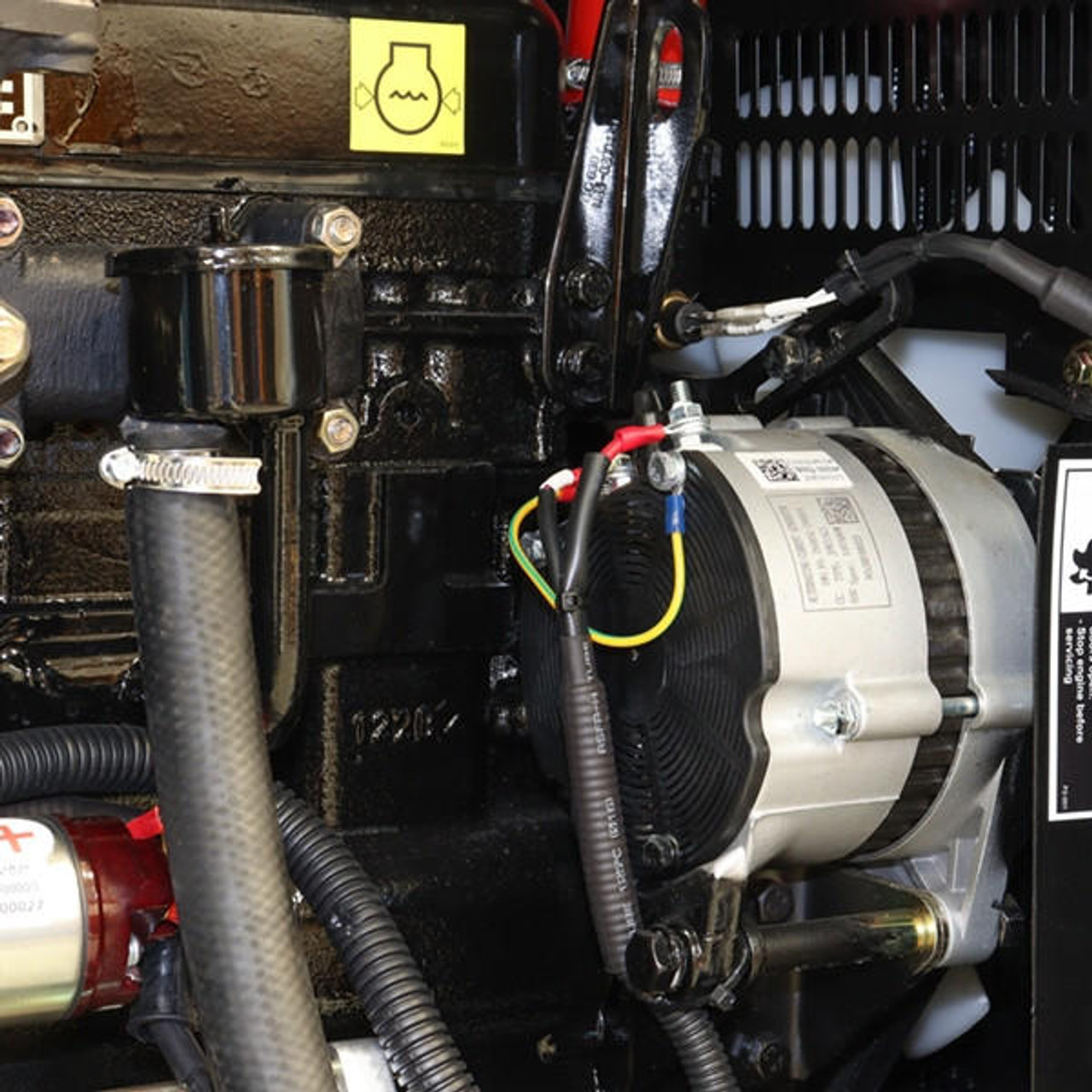

Hyundai Diesel Engine Model HY390
Power Output (kw) 13
Displacement (CC) 1815
No. of Cylinders 3
Displacement (Litres) 1.815
Recommended Oil Type SAE 15W40
Oil Capacity (Litres) 3.5
Oil Filter Part No. JX0810Y
Aspiration Natural
Fuel Regulation/Governor System Mechanical
Fuel Consumption (100% Load) [Litres] 3.8

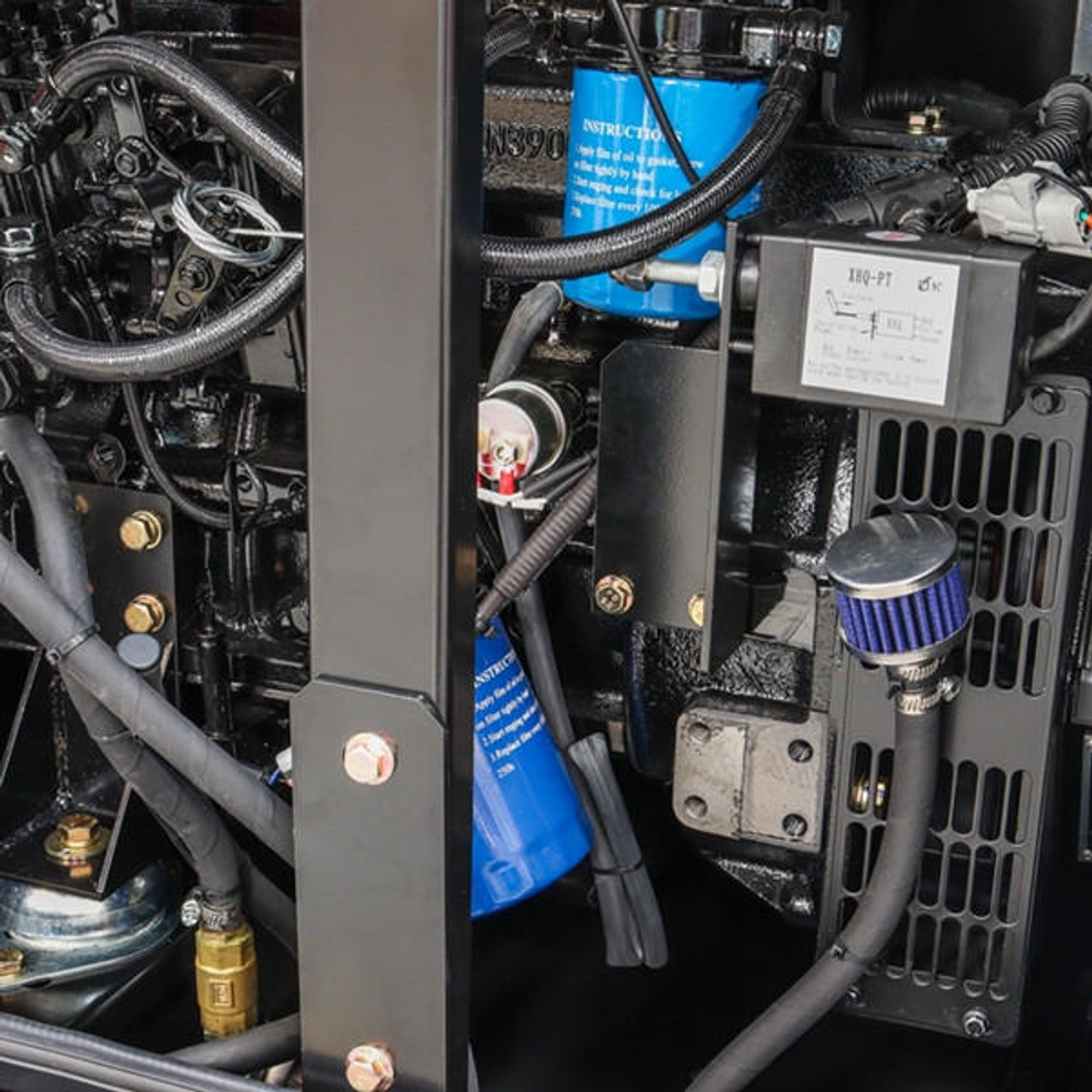

Fuel Filter Part No. CX0708
Cooling Water
Alternator Model 164C

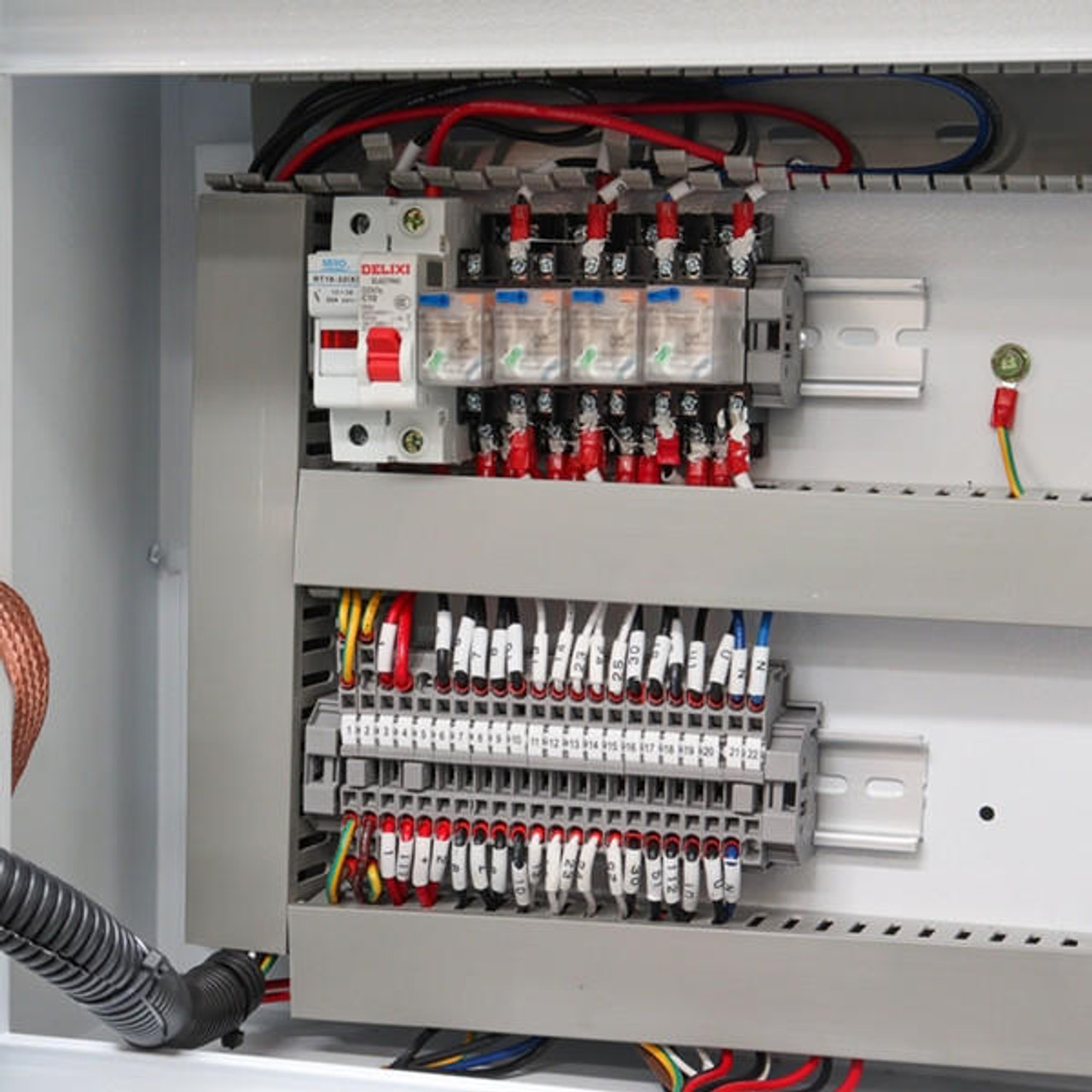

Breakers 2P C63A 100mA
Alternator Type Brushless
Voltage Regulation AVR

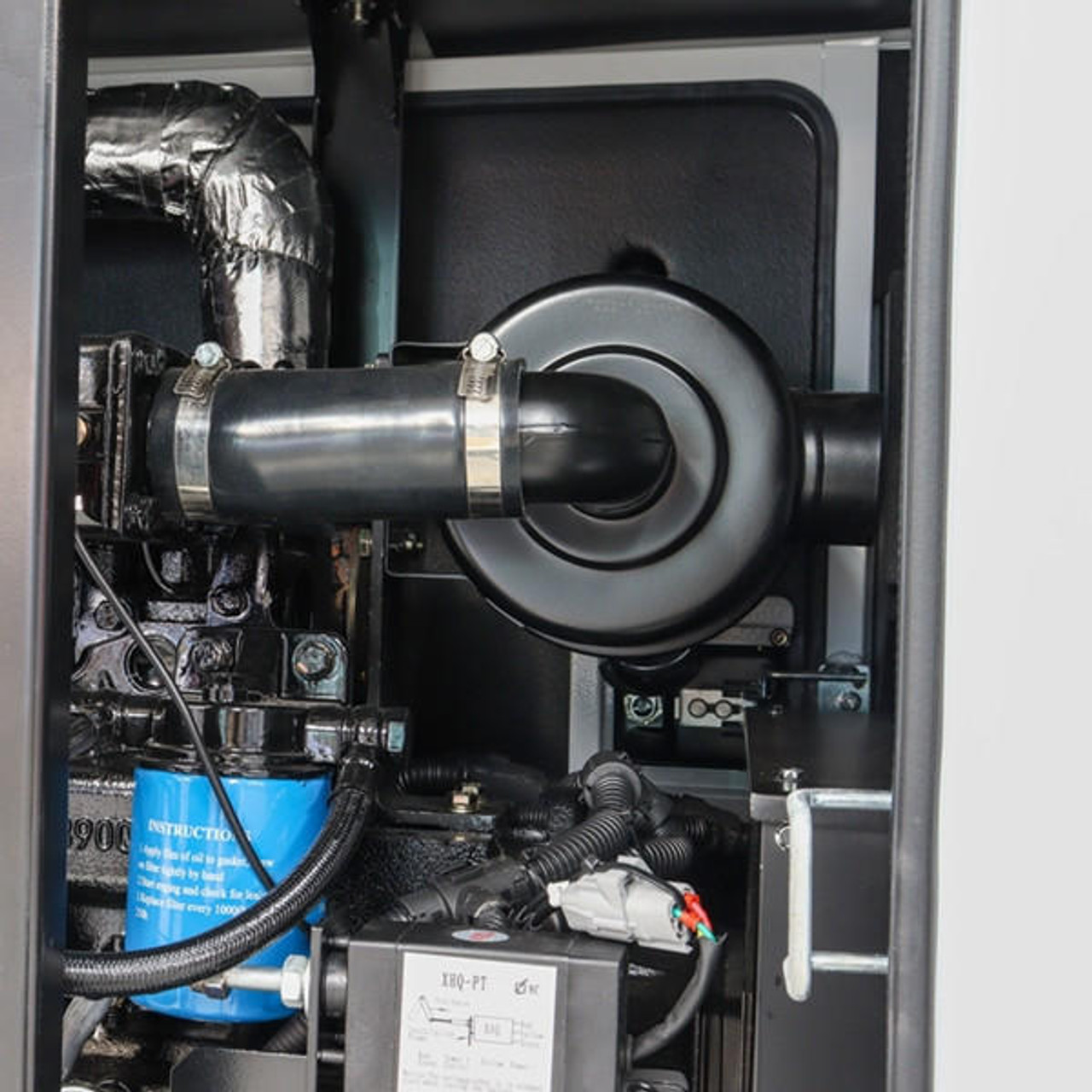

Air Filter Part No. K1317
Net Weight (kg) 655
Gross Weight (kg) 655
Dimensions L x W x H (mm) 1630 x 760 x 1115

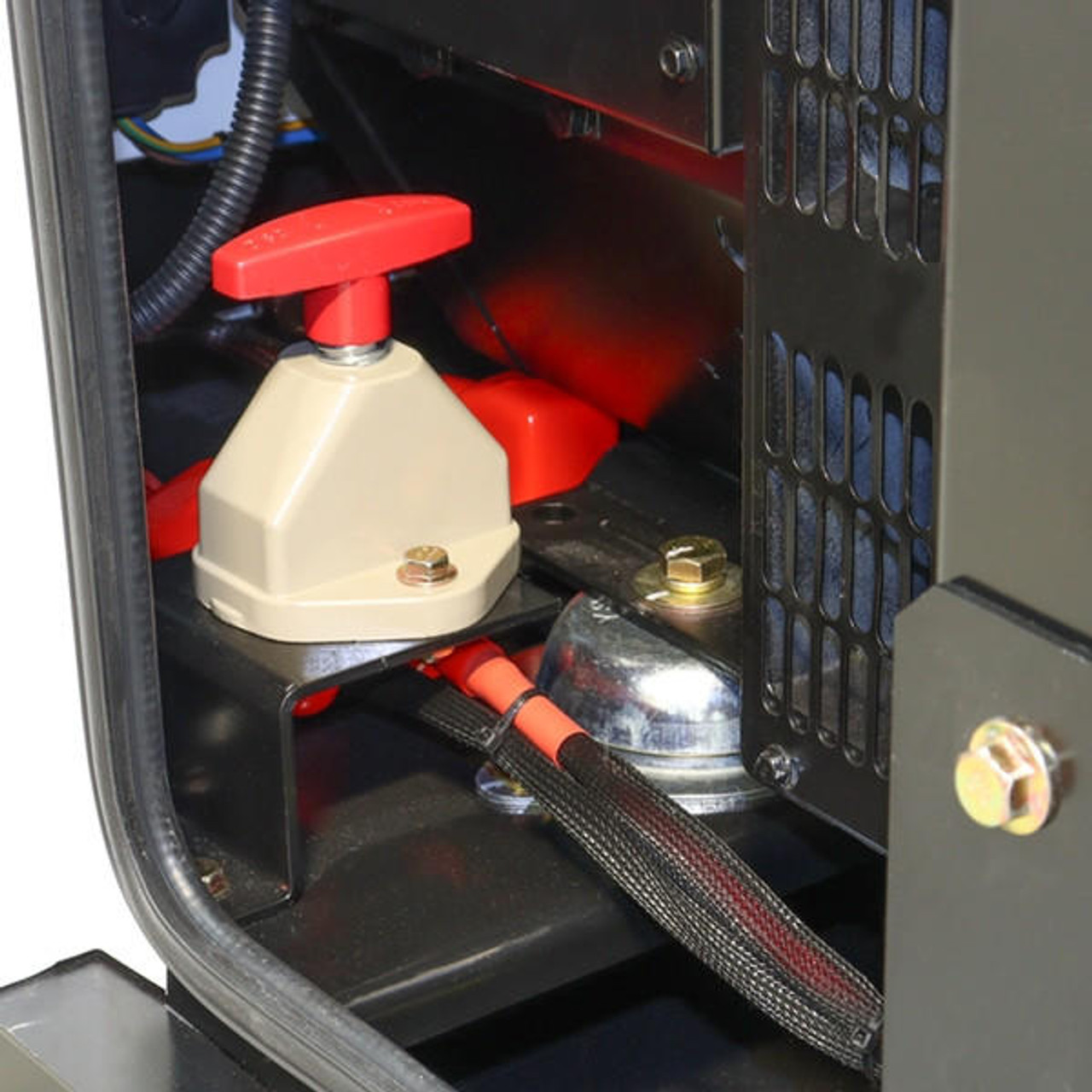

Battery System / Starting (V – Ah) 2×12/30
ATS / MTS Compatible Yes

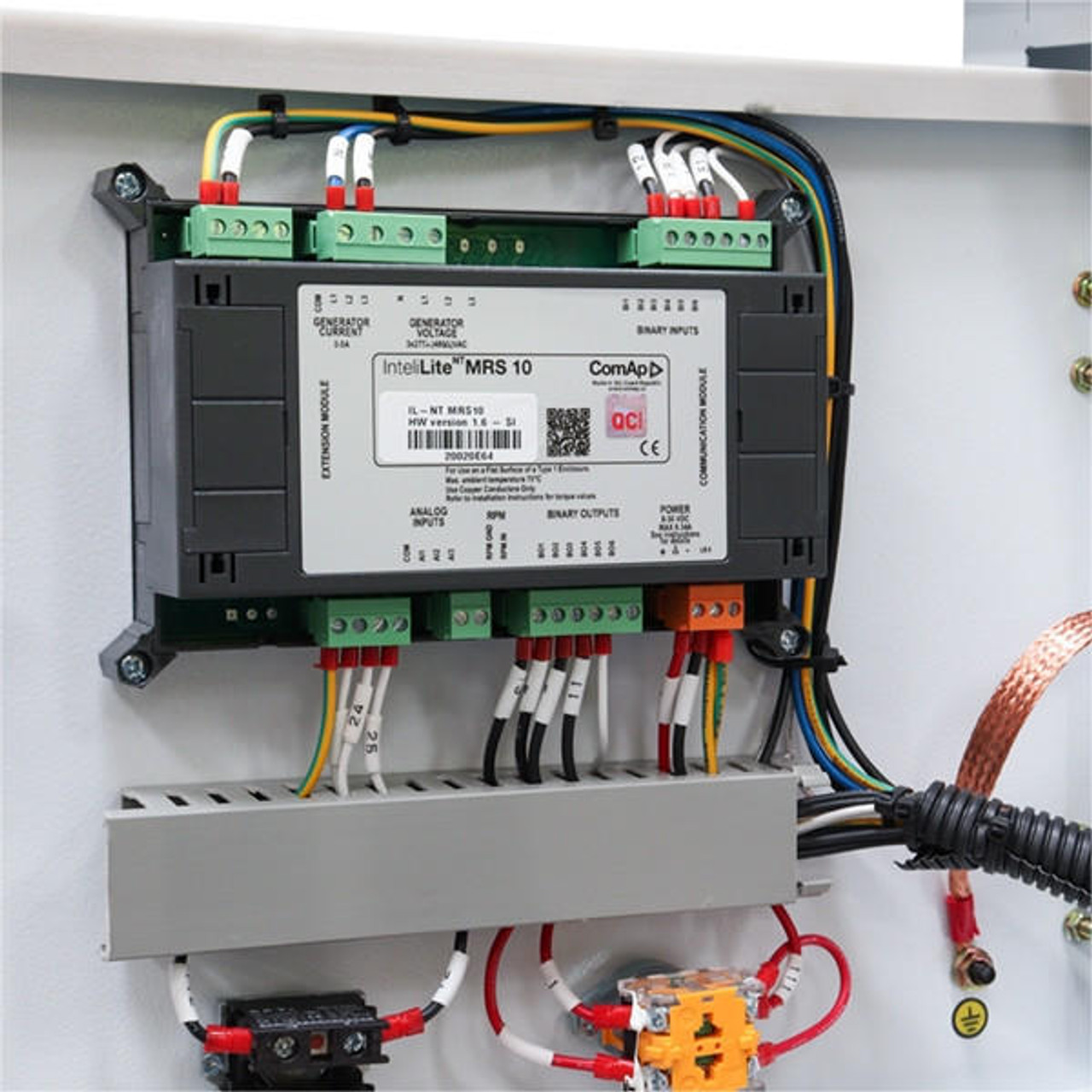

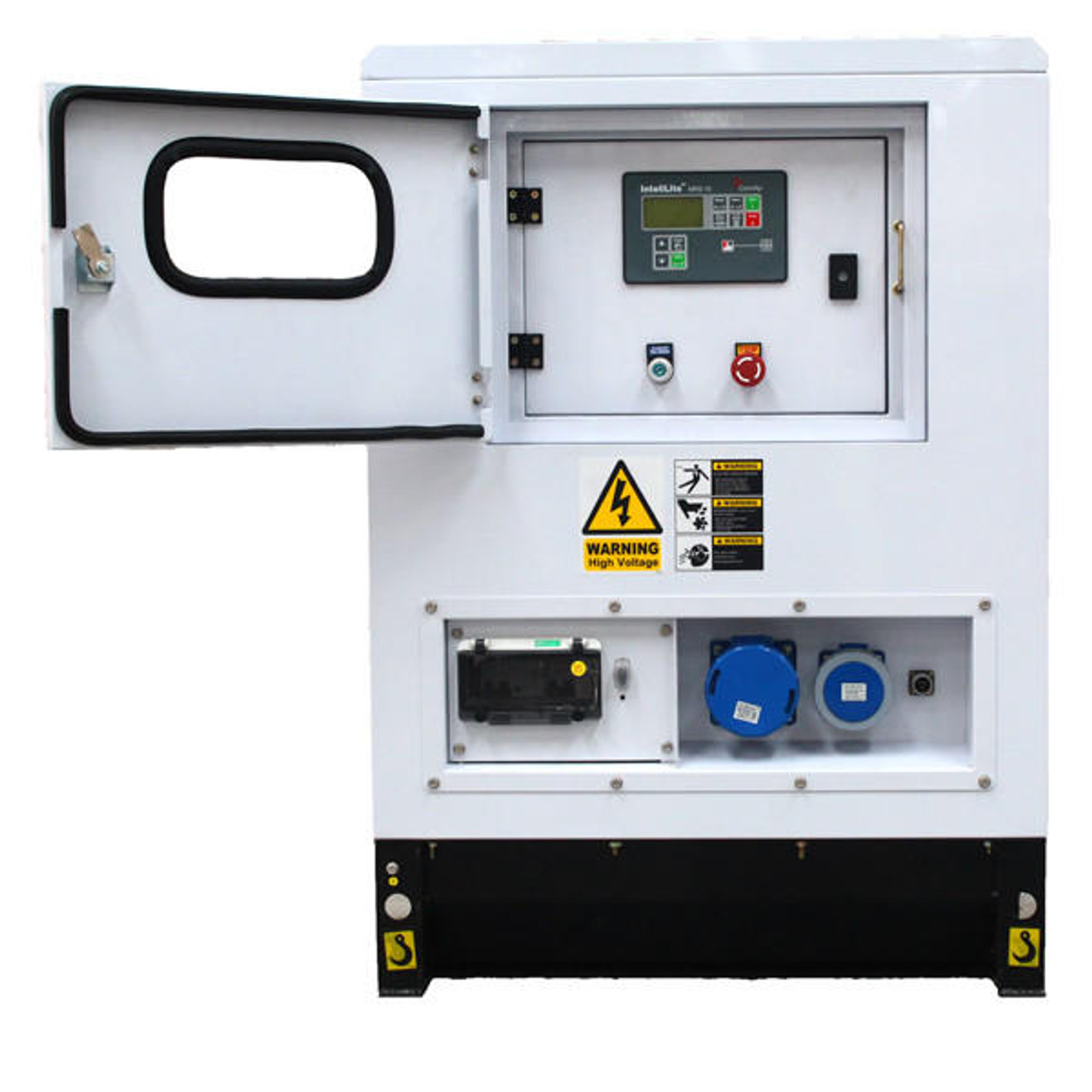

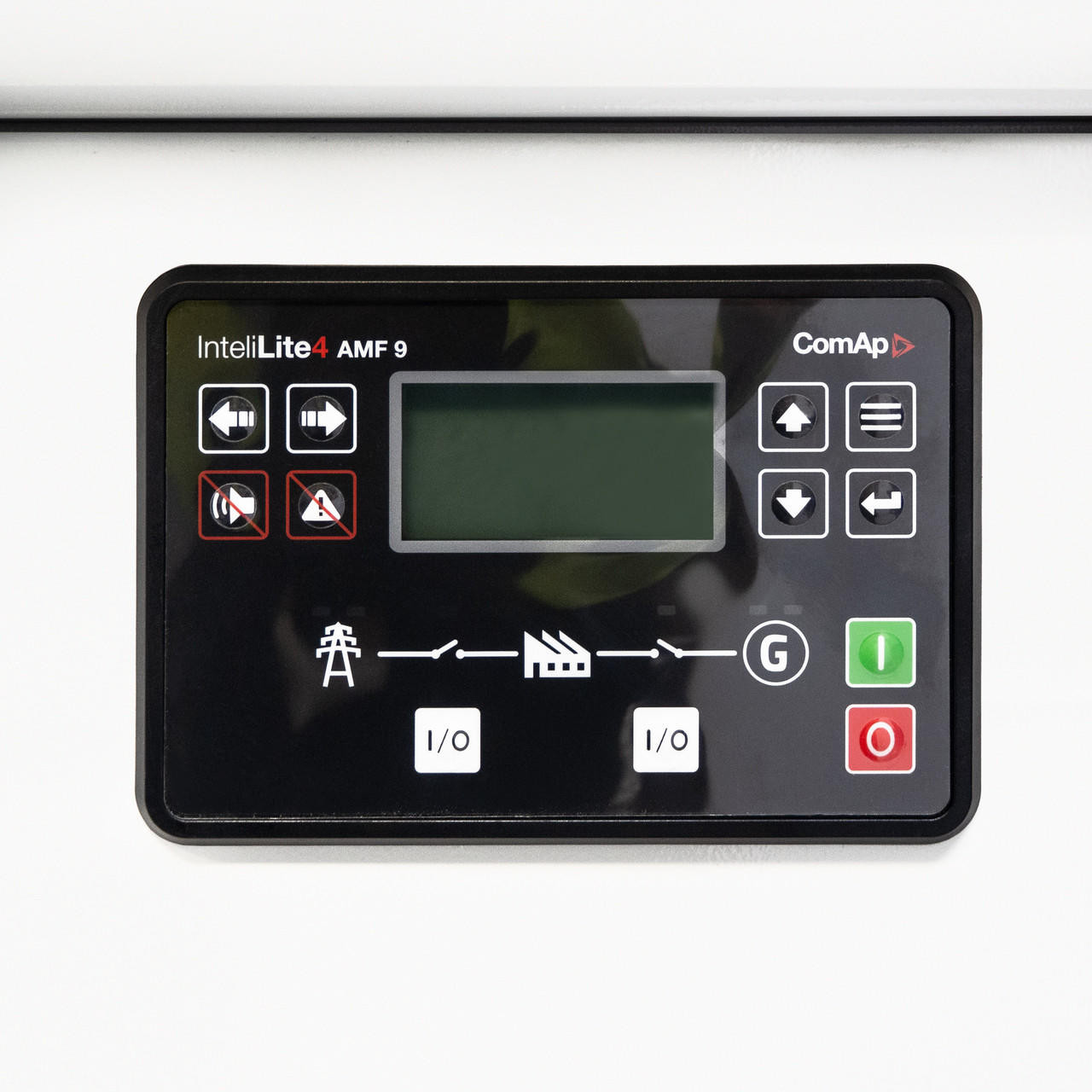

Control Panel ComAp AMF9
Model EAN 700621496205
Warranty 1 Year / 1000 Hours (can extended to 2 years, subject to standby use of 500 hours per year. Terms apply*)
Product Type Diesel Generator
Assembly Required? Yes – some assembly may be required
