Hyundai HY30100V 100 Litre Air Compressor 14CFM/116psi Silenced V Twin Direct Drive 3hp


Powerful Yet Compact

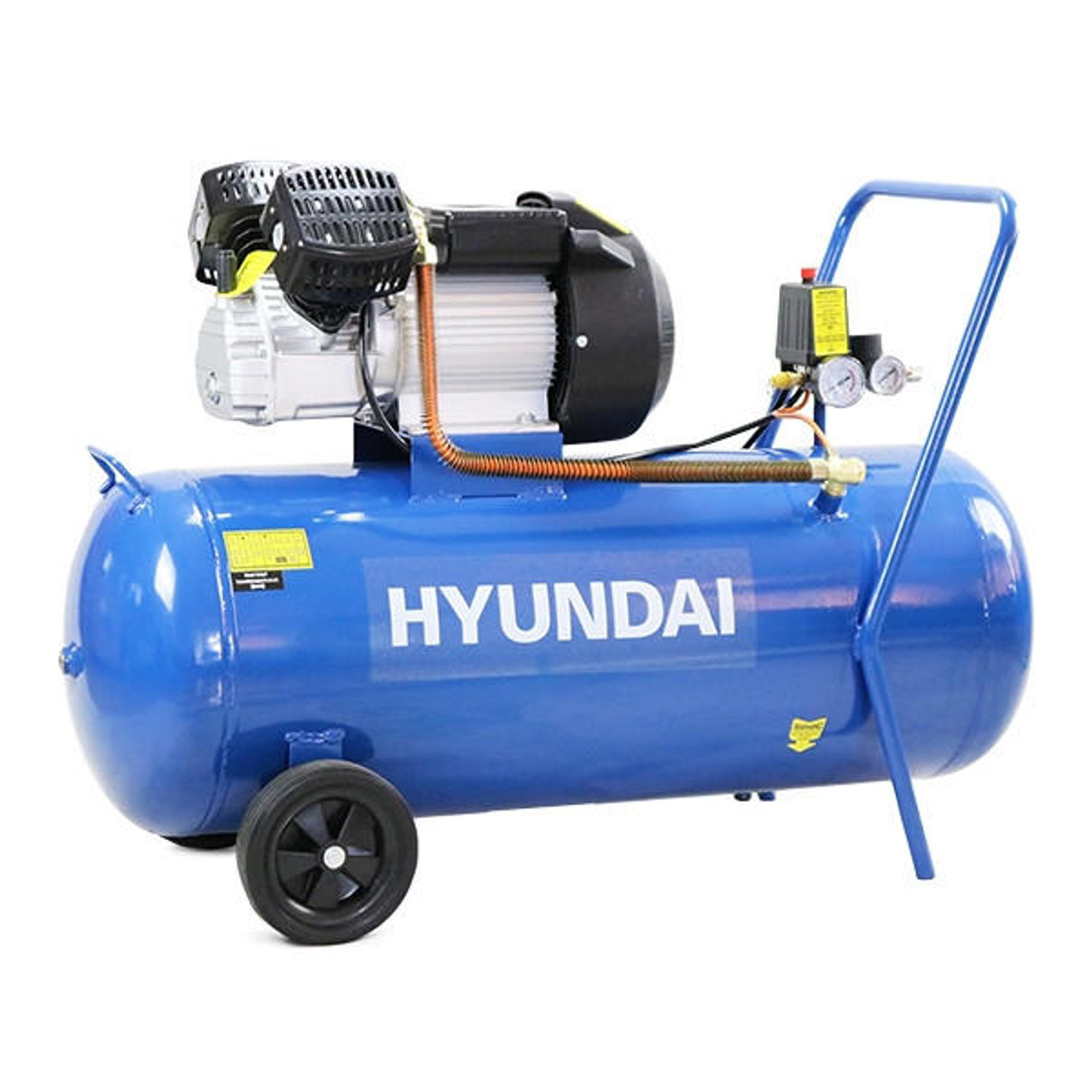

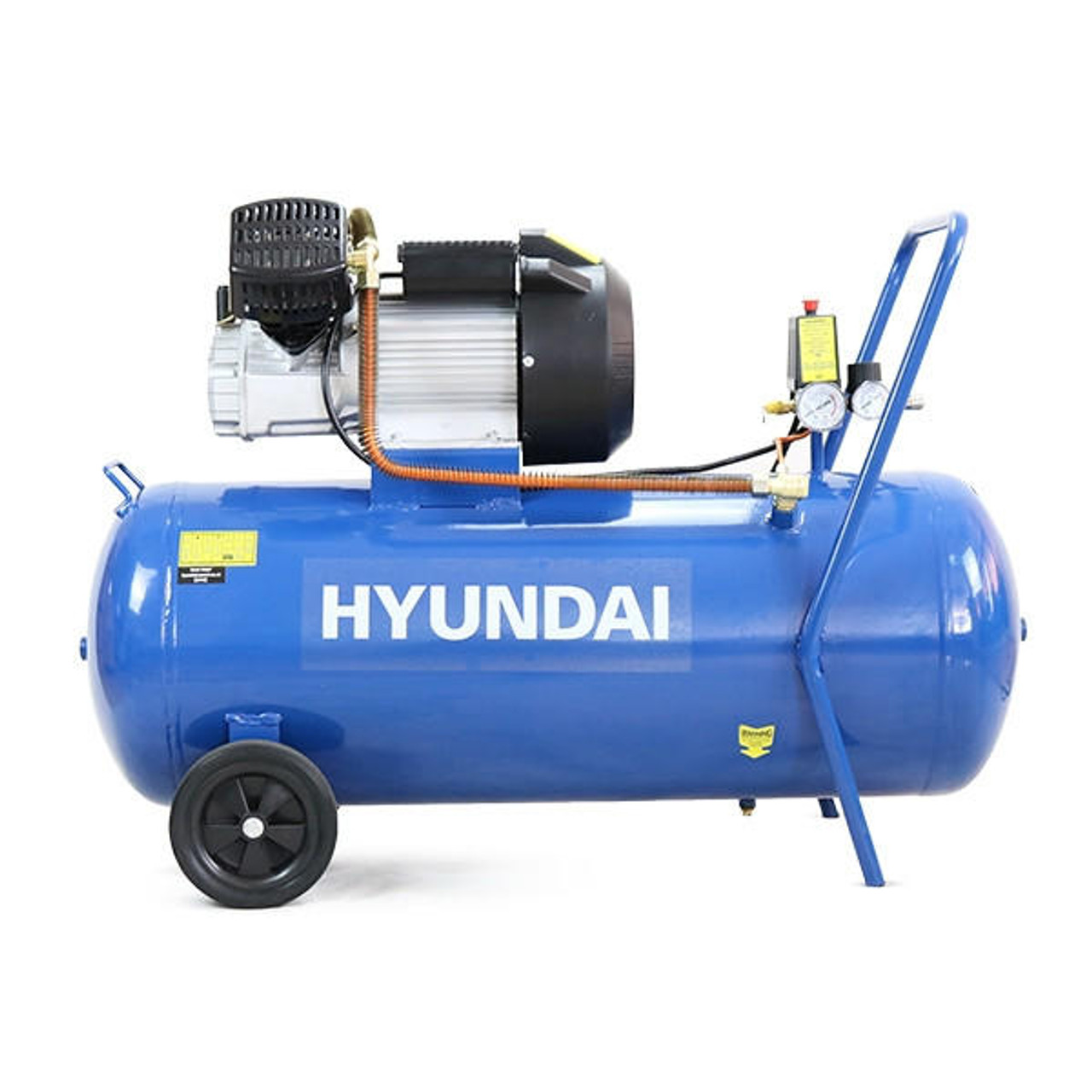

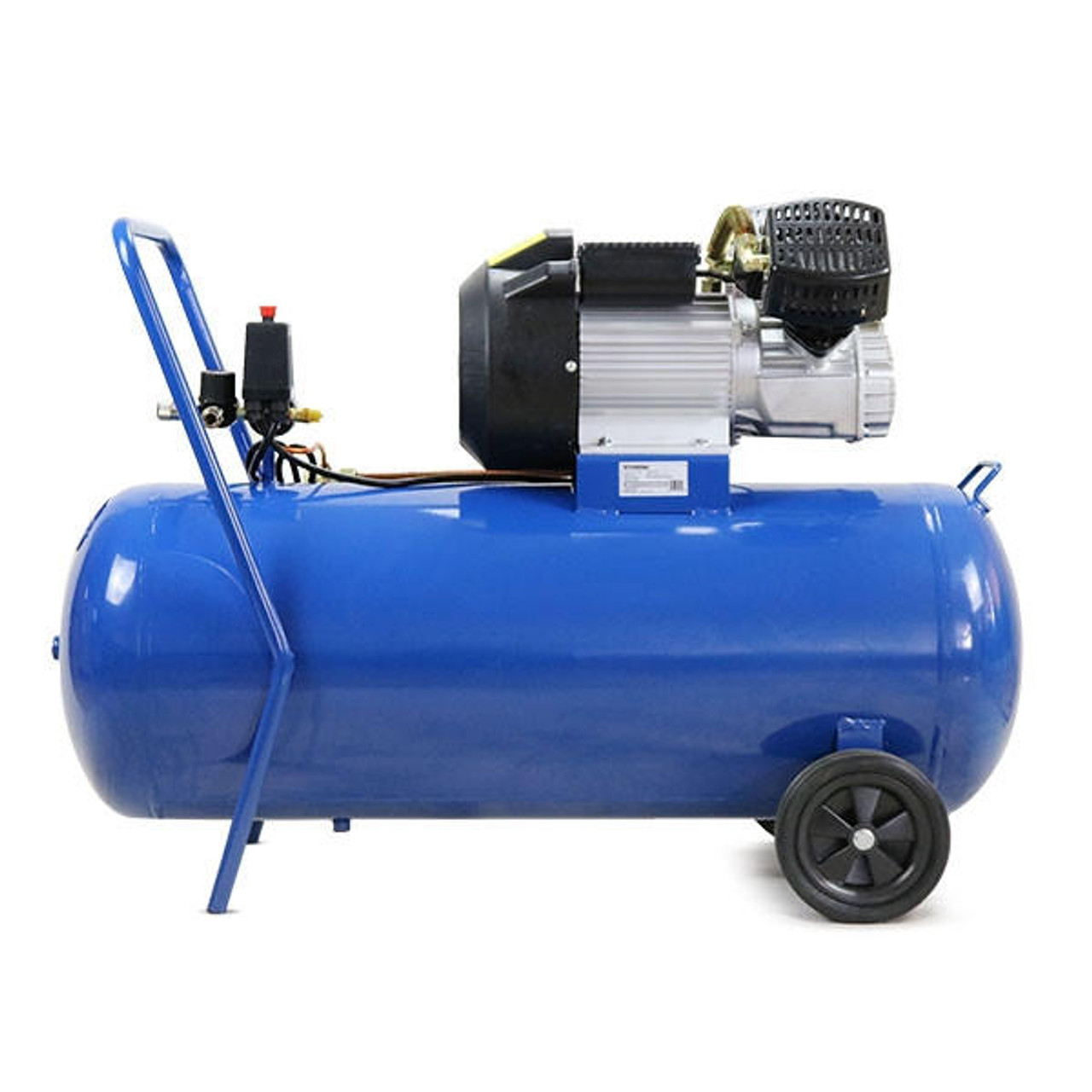

The HY30100V is a powerful yet compact 3hp V-twin cylinder direct drive air compressor from Hyundai.
Ideal For Various Jobs
Designed for DIY and trade applications the HY30100V air compressor is ideal for spray-painting, operating air tools in the workshop or home garage inflating tyres and inflatables.
Portable Design

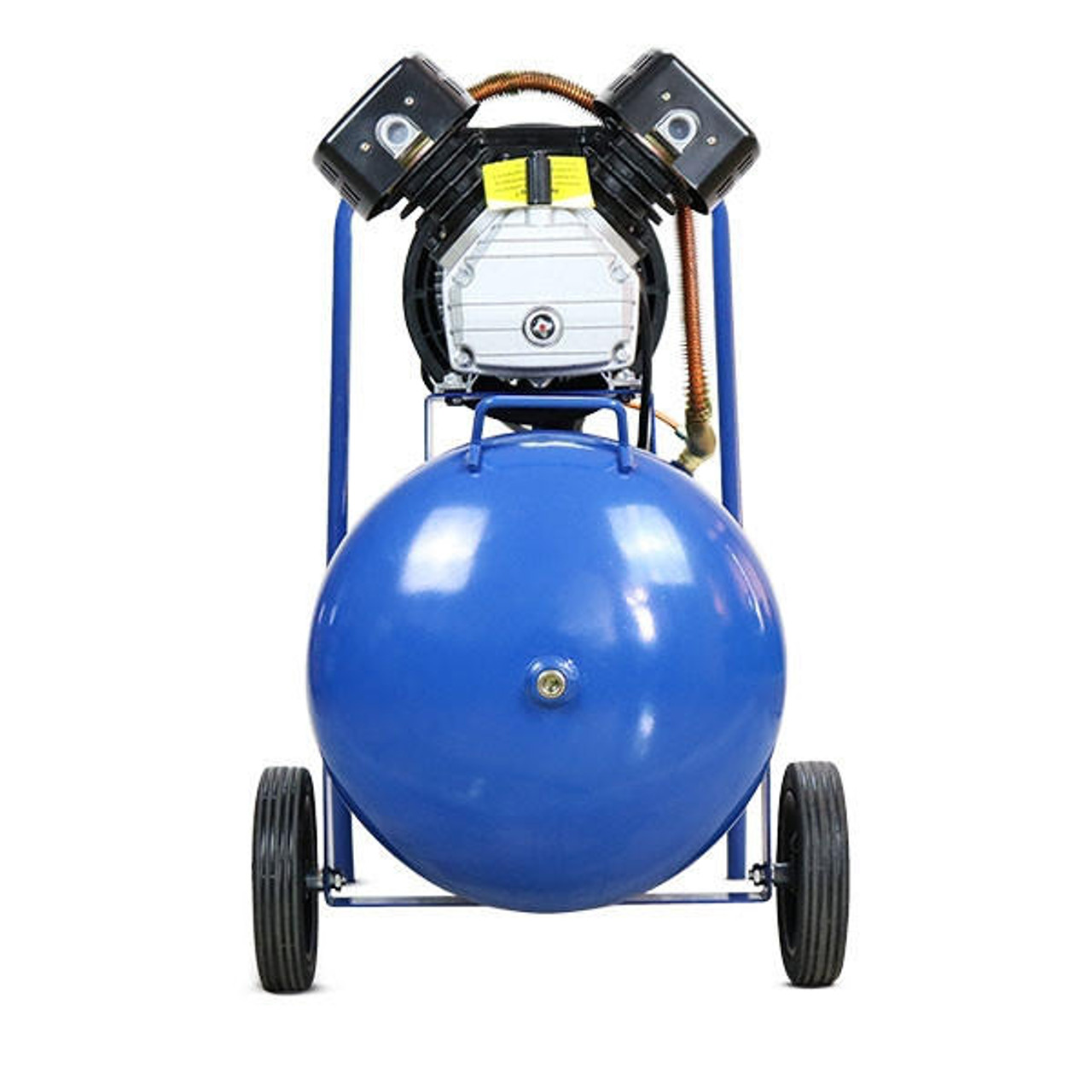

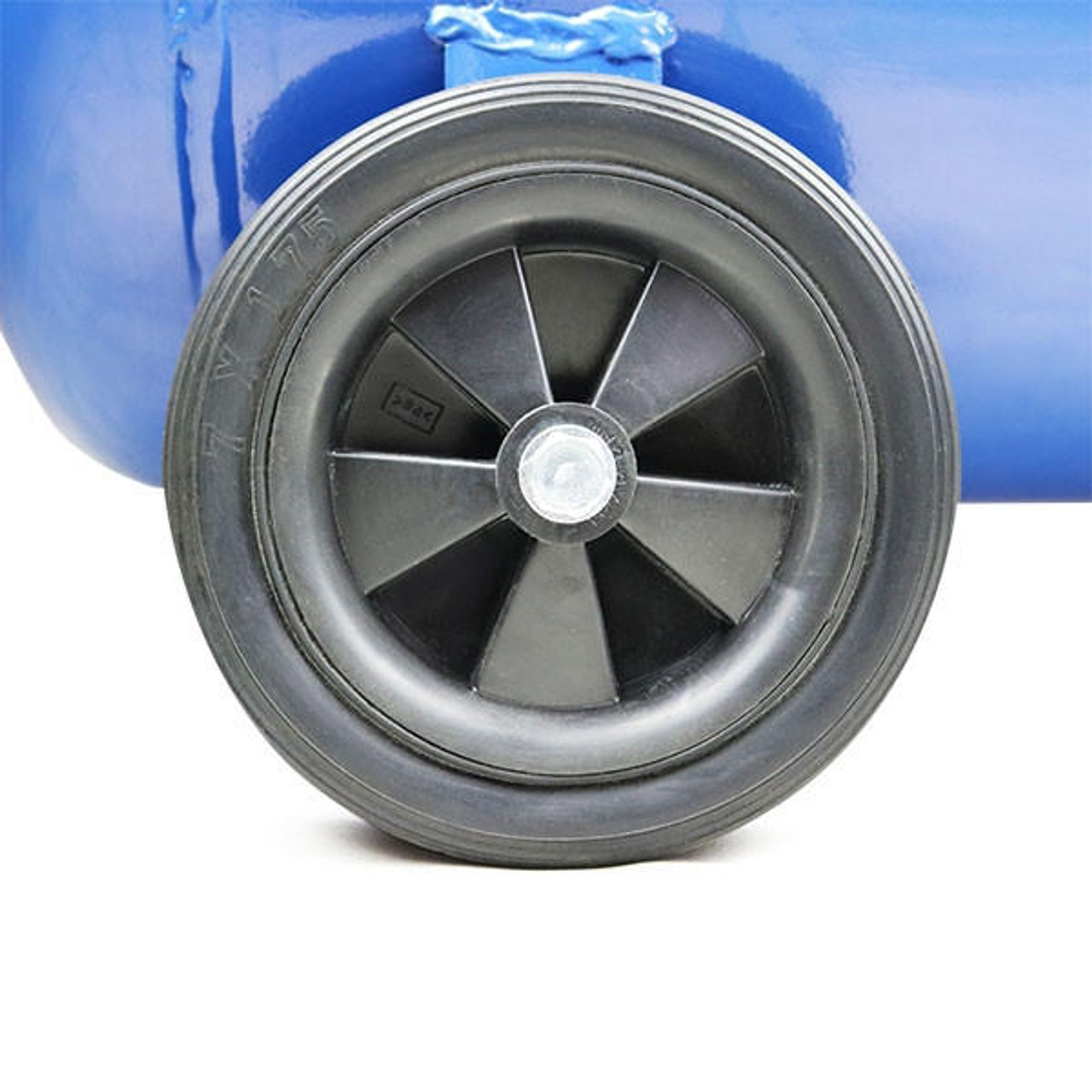

Weighing 60kg the HY30100V features 2 rear wheels and transportation handle for easy maneuverability.
Built To Last

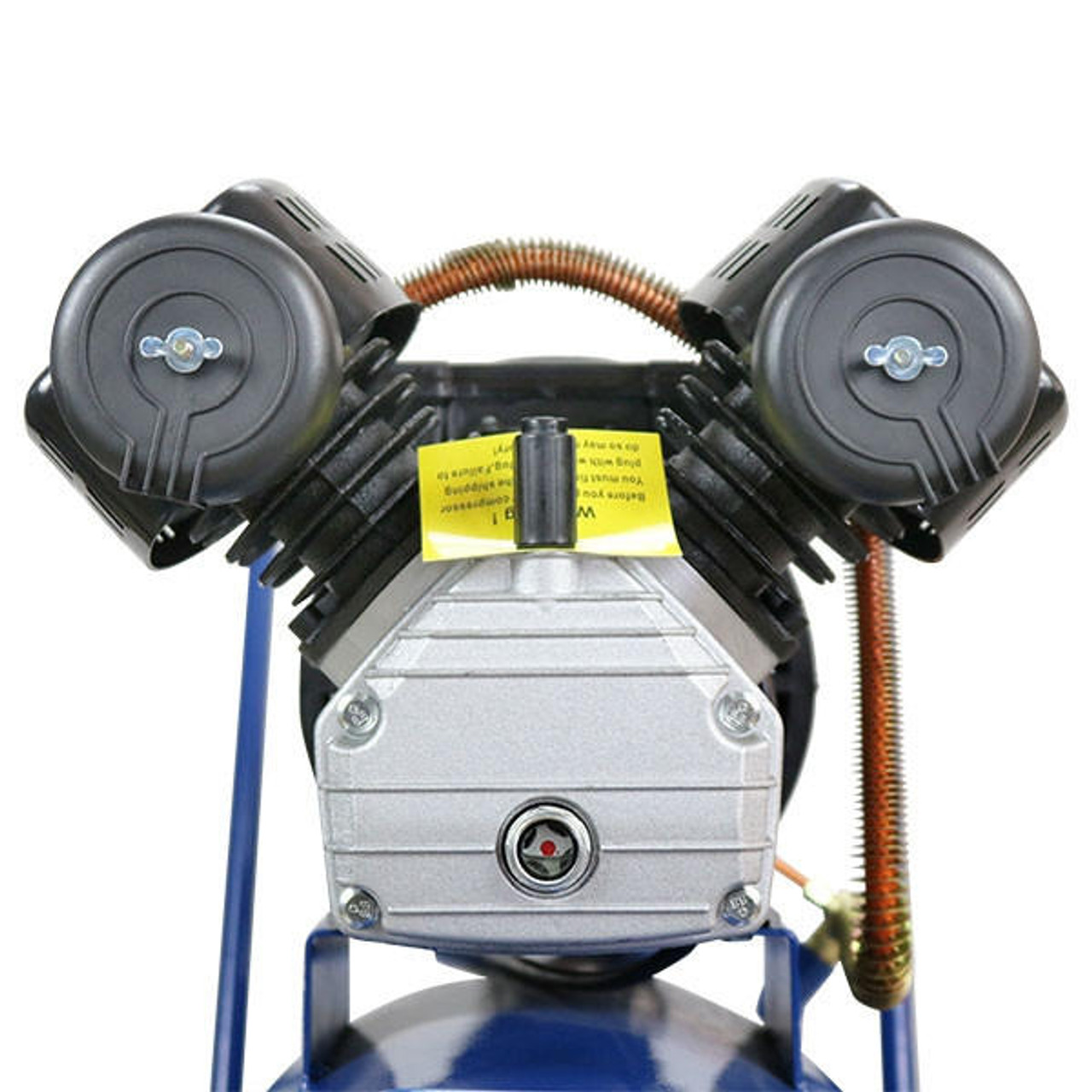

The V-Twin pump features long lasting cast iron cylinders and aluminium cylinder heads for improved cooling, and comes ready to go including oil. (Replace the transit plug with the breather/filler plug before use).
Powered By A 13amp Plug
Powered by a 3hp electric motor with a 230v 13amp plug, makes it ideal for home workshop or garage use where conventional residential power sockets are available.
5 Piece Tool Kit

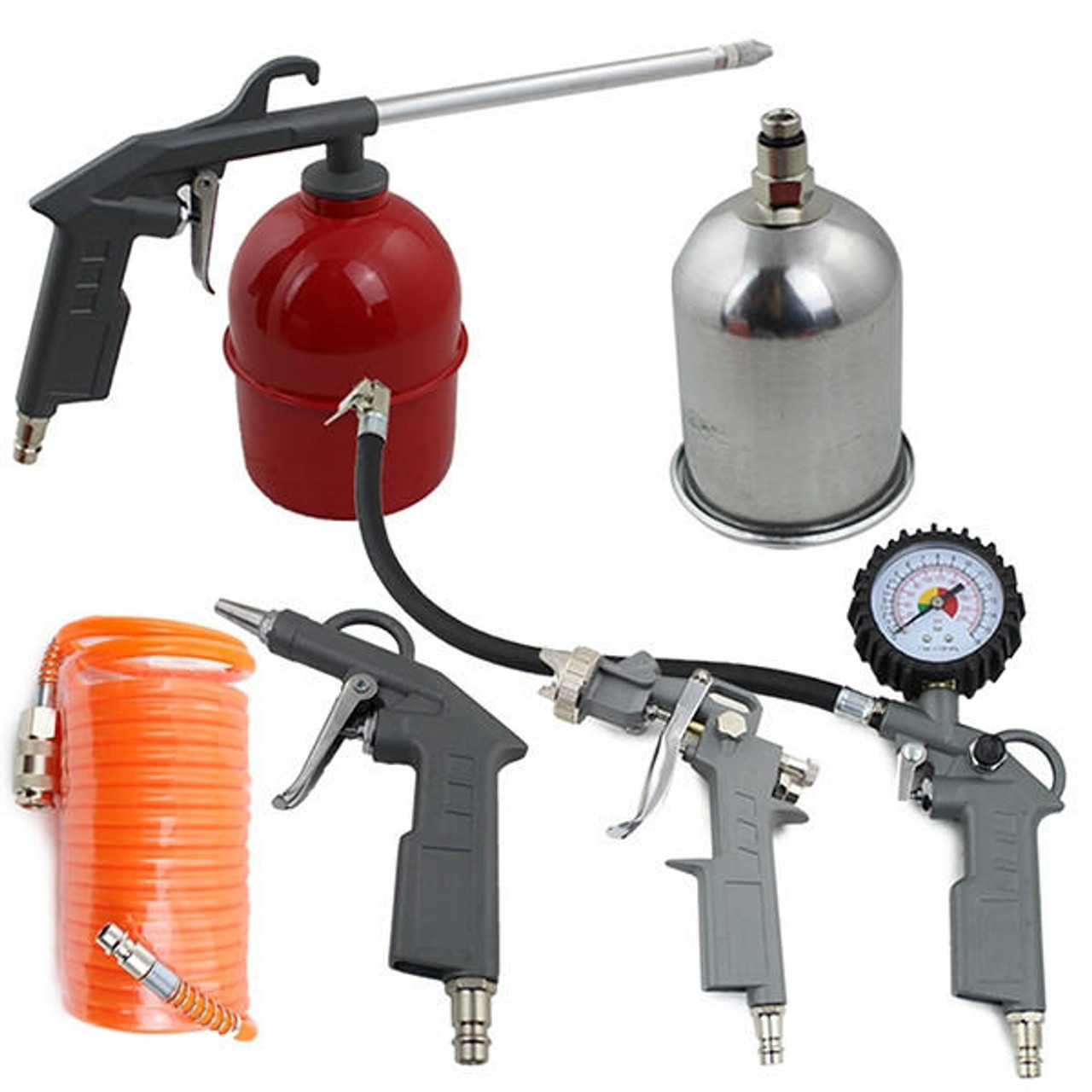

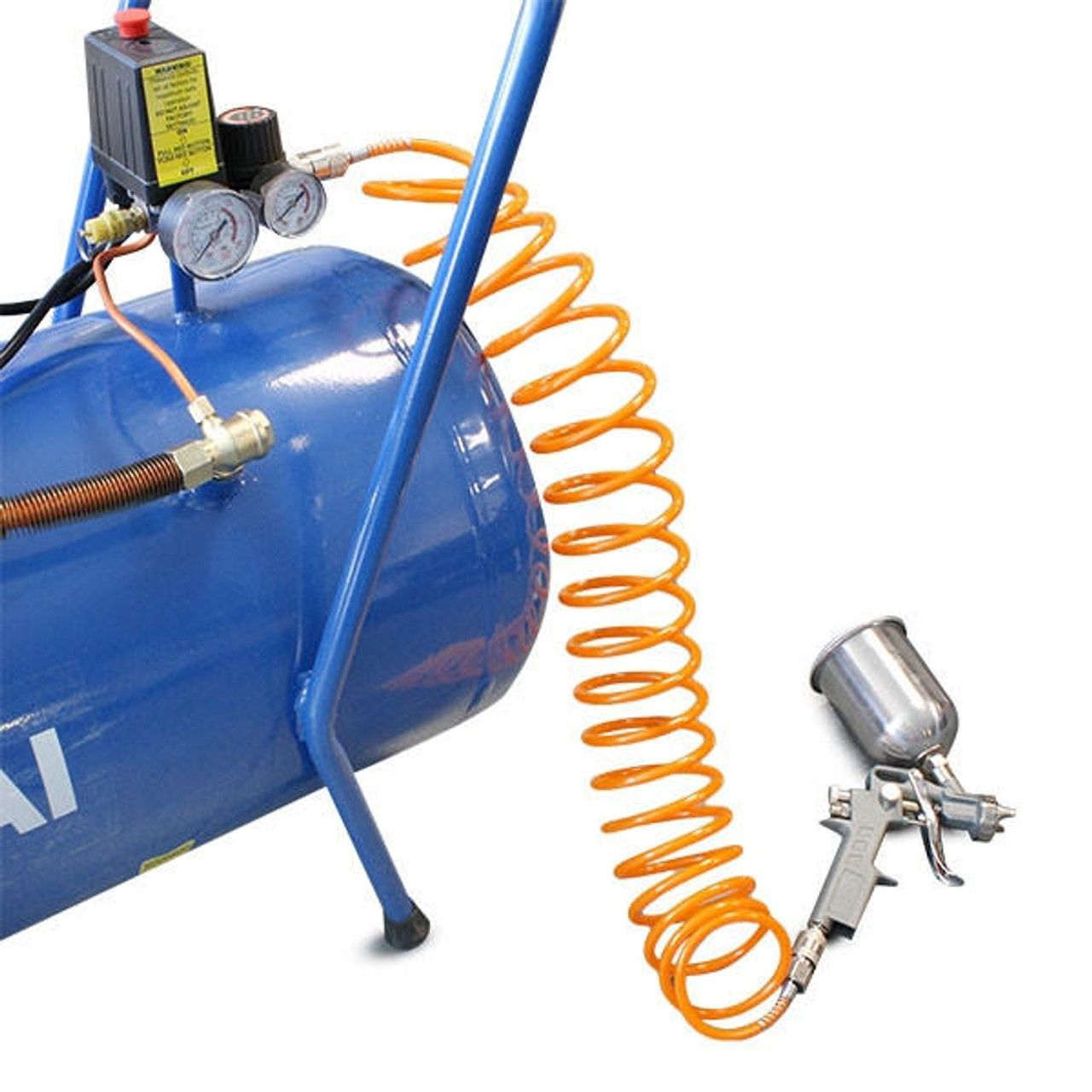

The 5 piece tool kit, which comes with the compressor provides the essential tools to get you started straight out the box for a variety of tasks including spraying, blowing, degreasing and tyre inflating.
Efficient And Compact

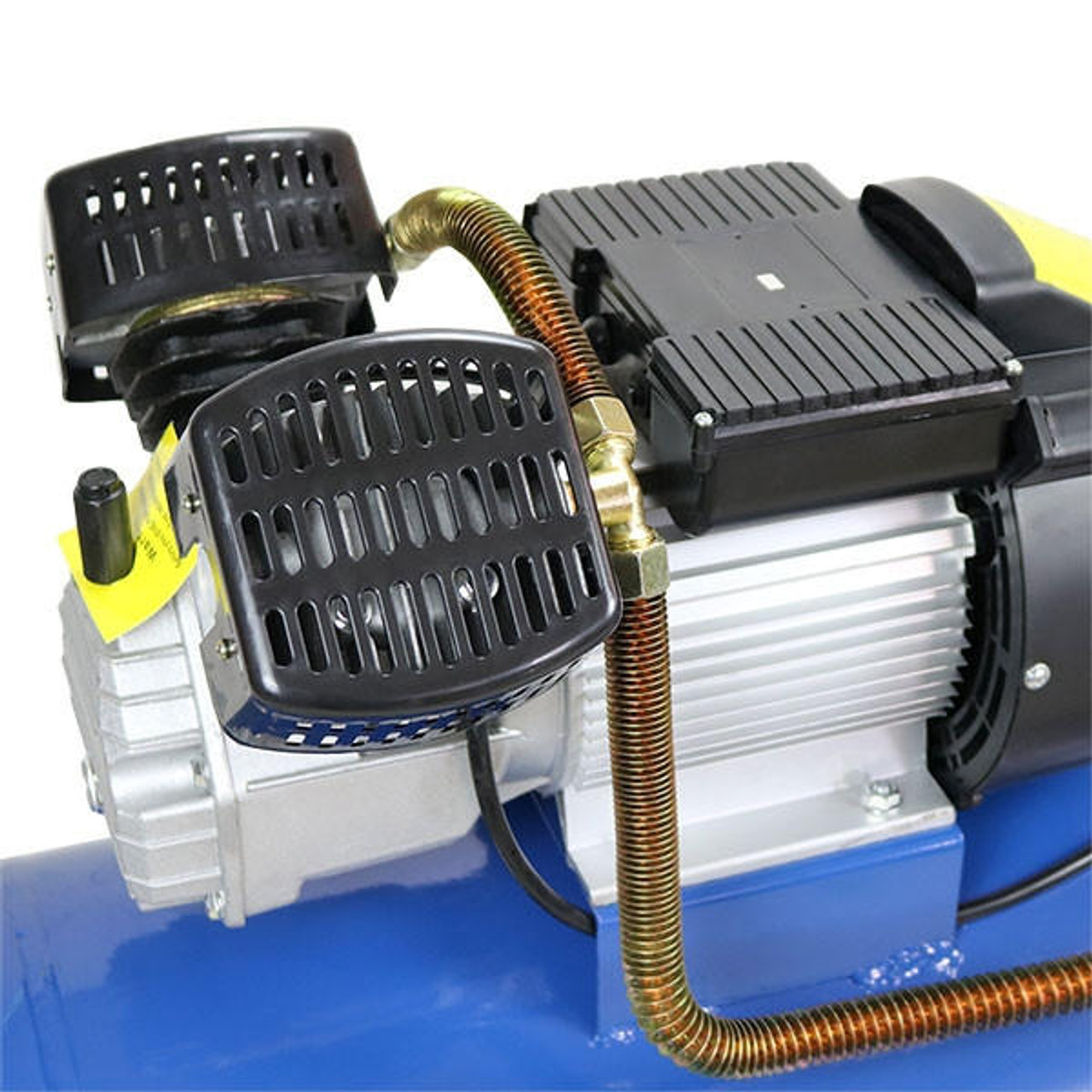

The V-twin direct drive design connects the motor straight to the pump increasing efficiency, allowing all the 3hp produced by the motor to be used to drive the compressor air pump producing more power in what is a very compact design.
100L Tank

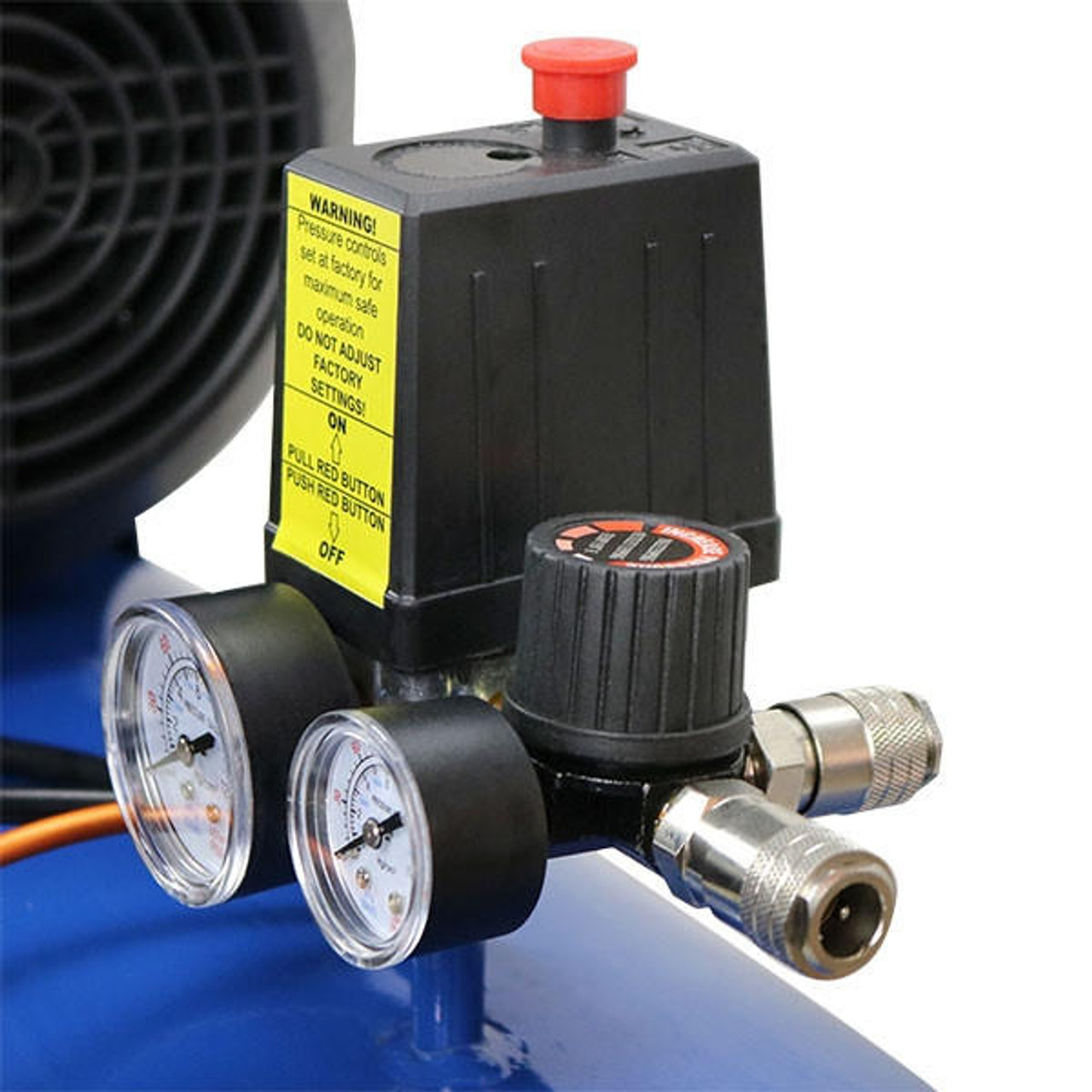

The 100 litre tank capacity provides a constant supply of air for airtools with 14CFM, 396 litres per minute air displacement. Twin quick release air outlets for increased versatility allow two air-lines / tools to be connected at the same time. The pressure regulator allows the outlet pressure to be increased or decreased and the two pressure gauges measure pressure in the tank and the outlet pressure. It’s also fitted with an over pressure safety valve, the automatic pressure control system switches the compressor off when the maximum pressure of 8 bar has been reached and restarts it when pressure drops to 6 bar.
Quick Release Euro Connectors

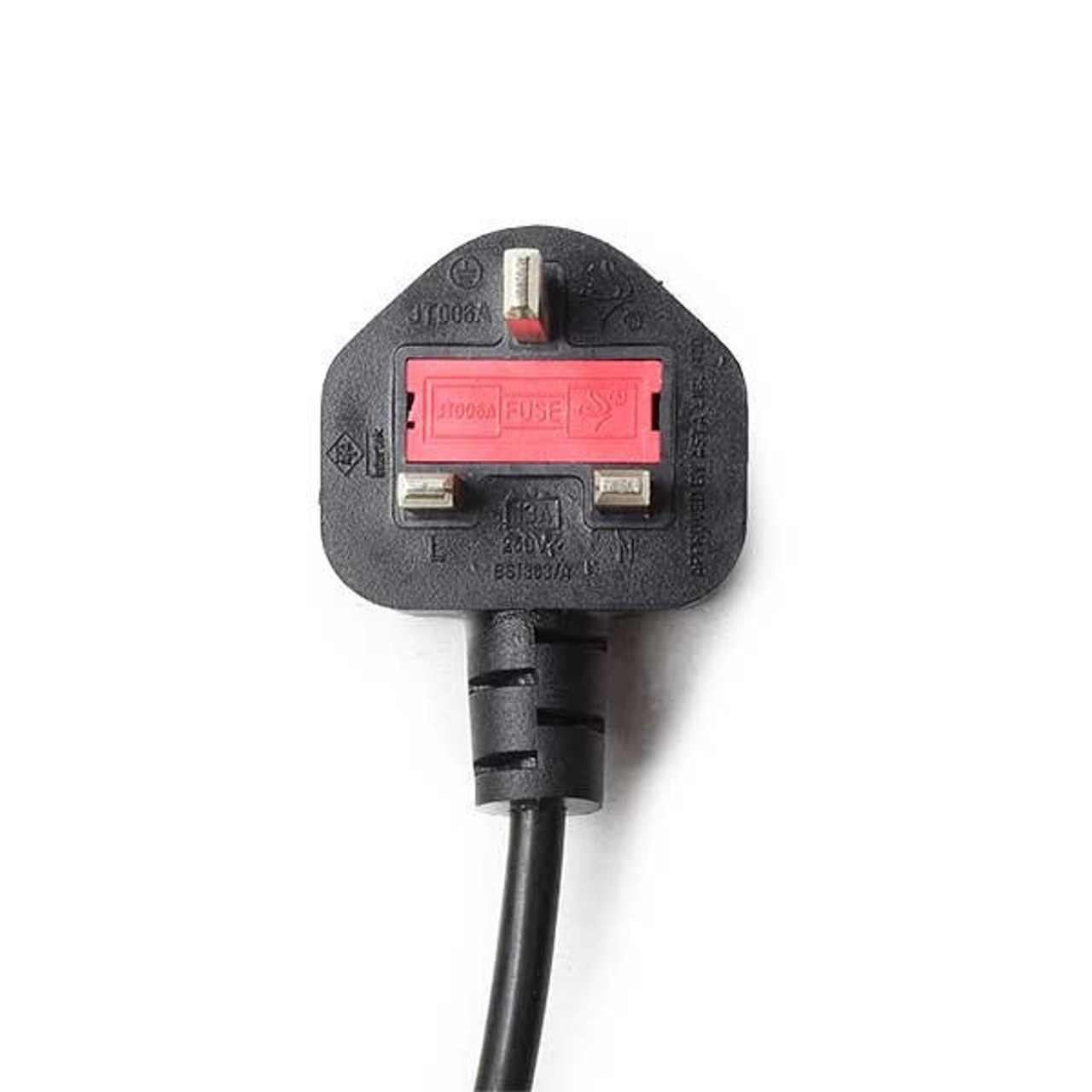

Fitted with quick release Euro connectors this compressor is fitted with a standard 13A UK 3-pin Plug.
DIY And Trade Applications
This air compressor provides a fantastic combination of performance and durability ideal for DIY and trade applications.
In The Box:
HY30100V Electric Air Compressor
5-piece air tool kit (high pressure 2m coiled hose with male and female Q/R Euro fittings, tyre inflator, degreaser, spray gun and air duster/jetter all with Q/R fitting)
User Manual
Assembly Required
Fit wheels (2 bolts), fit cylinder head heat covers (4 screws), fit two rubber feet and screw in air filters. Compressor pump if filled with oil ready for use. This should take 10-15 minutes.
Covered by Hyundai 2 year warranty.
Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.

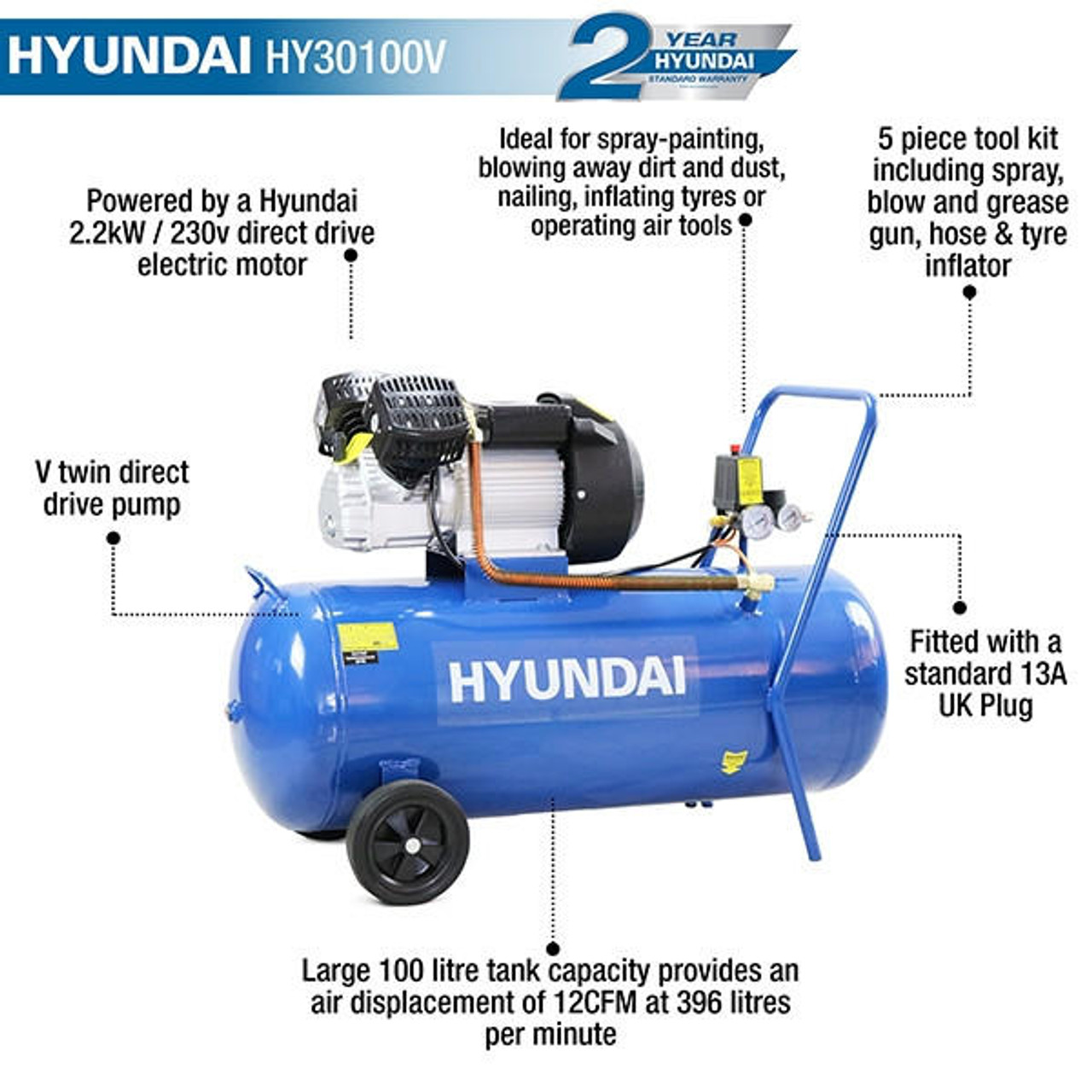

Key Features
Powerful Engine: Powered by a Hyundai 2.2kW 3hp 230v motor.
V-twin direct drive pump: fitted with a standard 13A UK Plug.
100 litre tank capacity: provides an air displacement of 14CFM or 396 litres per minute and 8bar / 116psi.
Fitted with twin Euro quick release connectors.
5 piece tool kit: including spray gun, air duster/jetter, degreaser gun, hose with Q/R fittings & tyre inflator.
Includes twin pressure gauges, automatic cut out switch, safety valve and pressure regulator/ adjuster.
Extensive Warranty: Covered by Hyundai 2 year warranty.
Full spares available: to maintain your air compressor for years to come.


Out of stock

Notify me when this is avaliable

EAN: 5056275722746 SKU: HY30100V Category:


Model HY30100V
Start Method 13A UK Plug
Fuel/Power Source Electric
Cable Length (m) 1
Stationary / Wheeled Wheeled
Drive Type Direct Drive V-Twin
Tank Capacity (L) 100
Tank Material Steel
Duty Cycle 80%
Discharge Pressure (psi/bar) 116/8
Max Pressure (psi/bar) 116/8
Air Flow FAD (L/min) 200
Air Flow FAD (CFM) 7
Air Displacement (L/min) 396
Air Displacement (CFM) 14
Air Outlet Connection Euro Quick Release
Voltage 230
Rated Power (w) 2200
Motor Power kW/hp 2.2/3
Pump (RPM) 2850
Speed (RPM) 2850
Noise Level @ 7m (dB) 70
Gross Weight (kg) 64.5
Net Weight (kg) 60

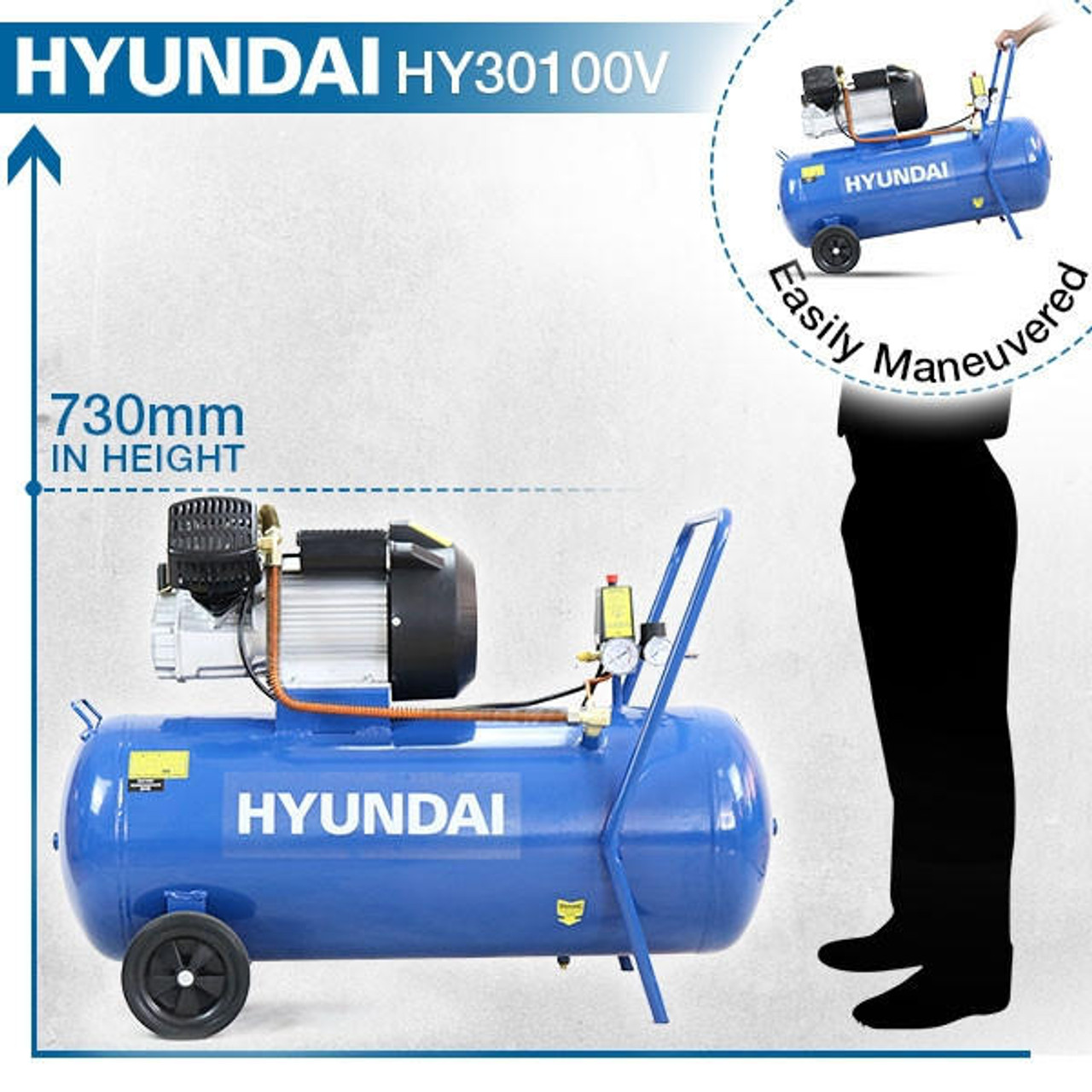

Fully Assembled Dimensions (H x W x L) (mm) 730 x 430 x 1020
Packaged Dimensions (H x W x L) (mm) 800 x 440 x 1100
Product Type Air Compressor
Warranty (years) 2
Commercial Warranty (years) 1
Model EAN 5056275722746
In The Box HY30100V Electric Air Compressor, User Manual
