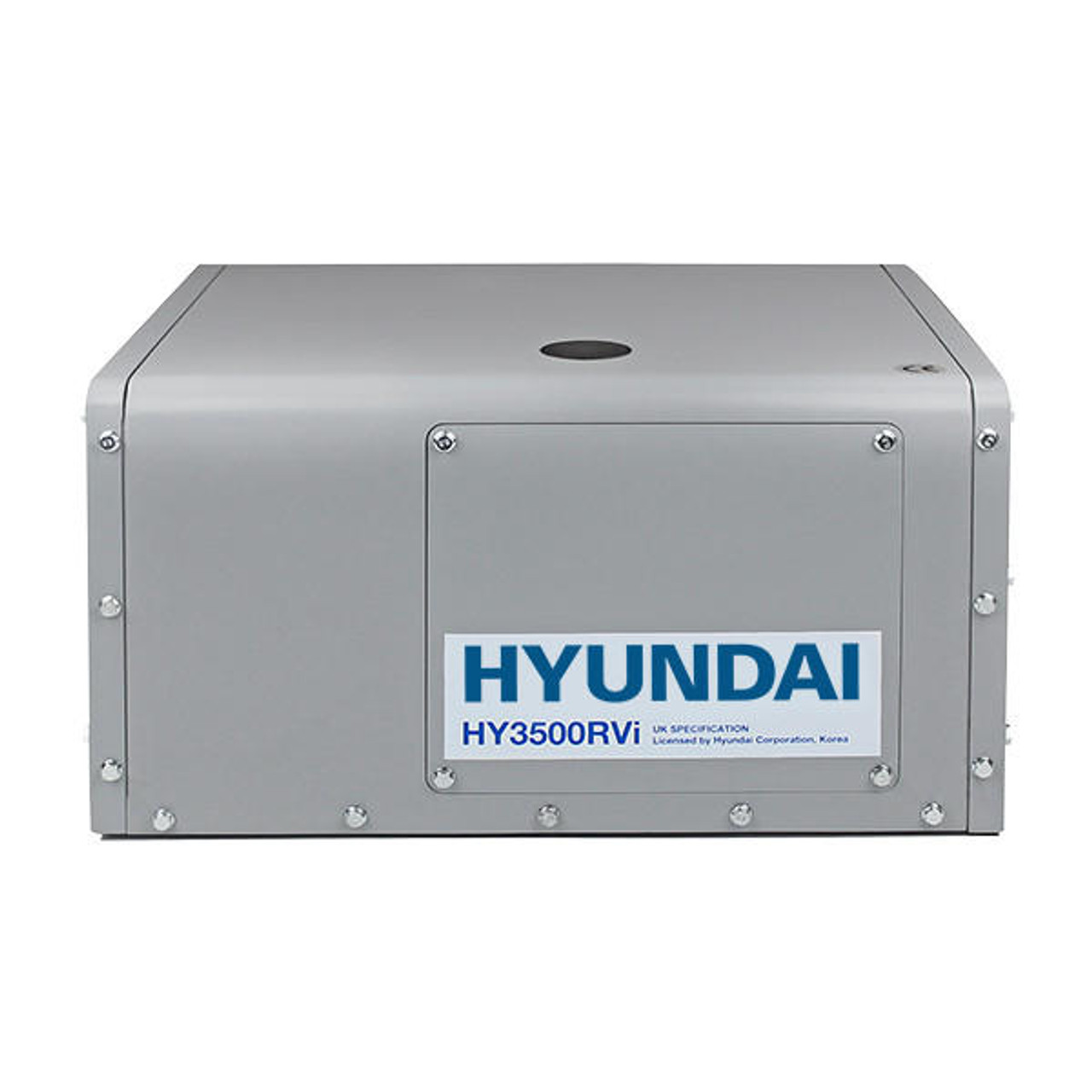

Hyundai HY3500RVi Petrol 3.5kW Underslung Generator

Description

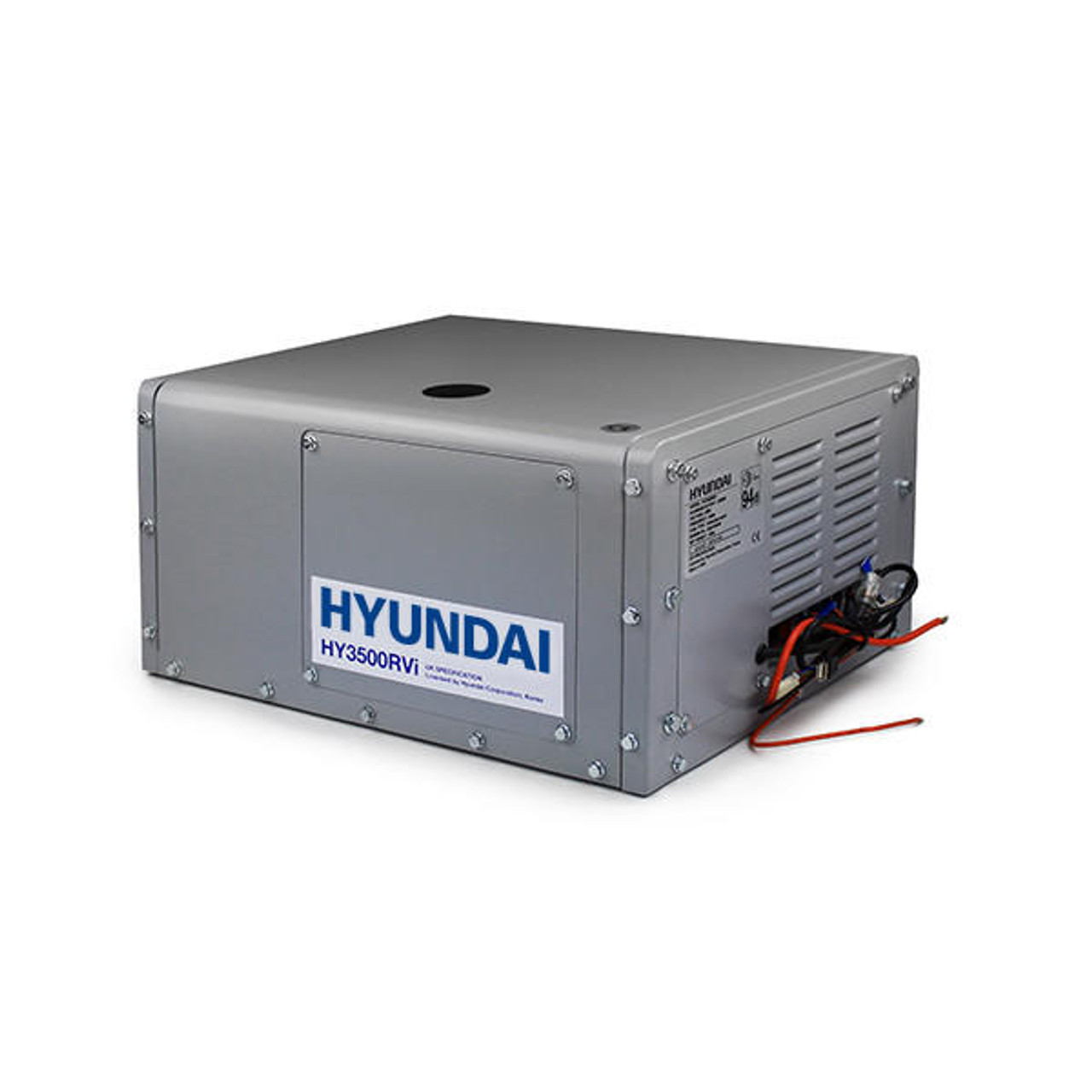

Hyundai 3.5kw Underslung Inverter Generator

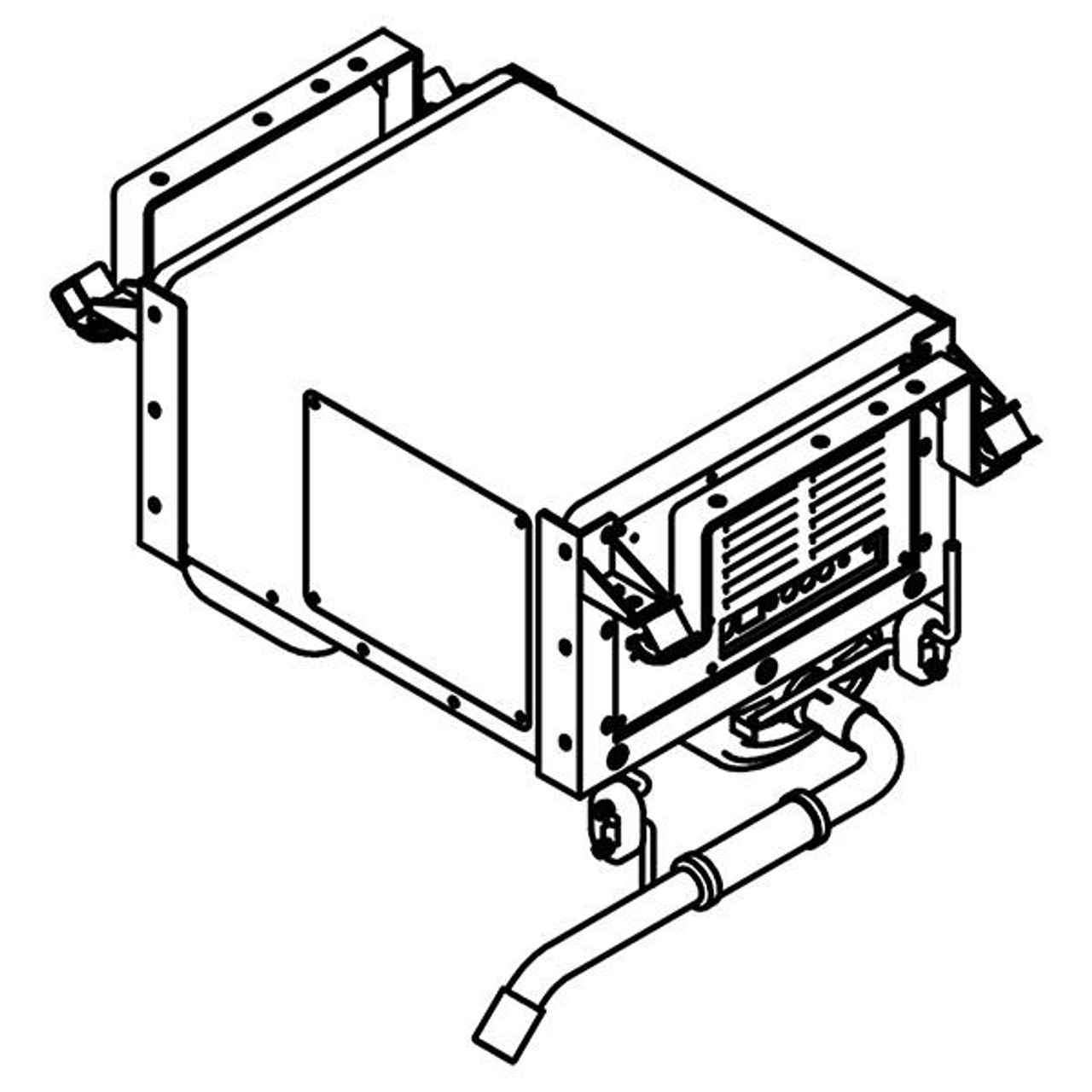

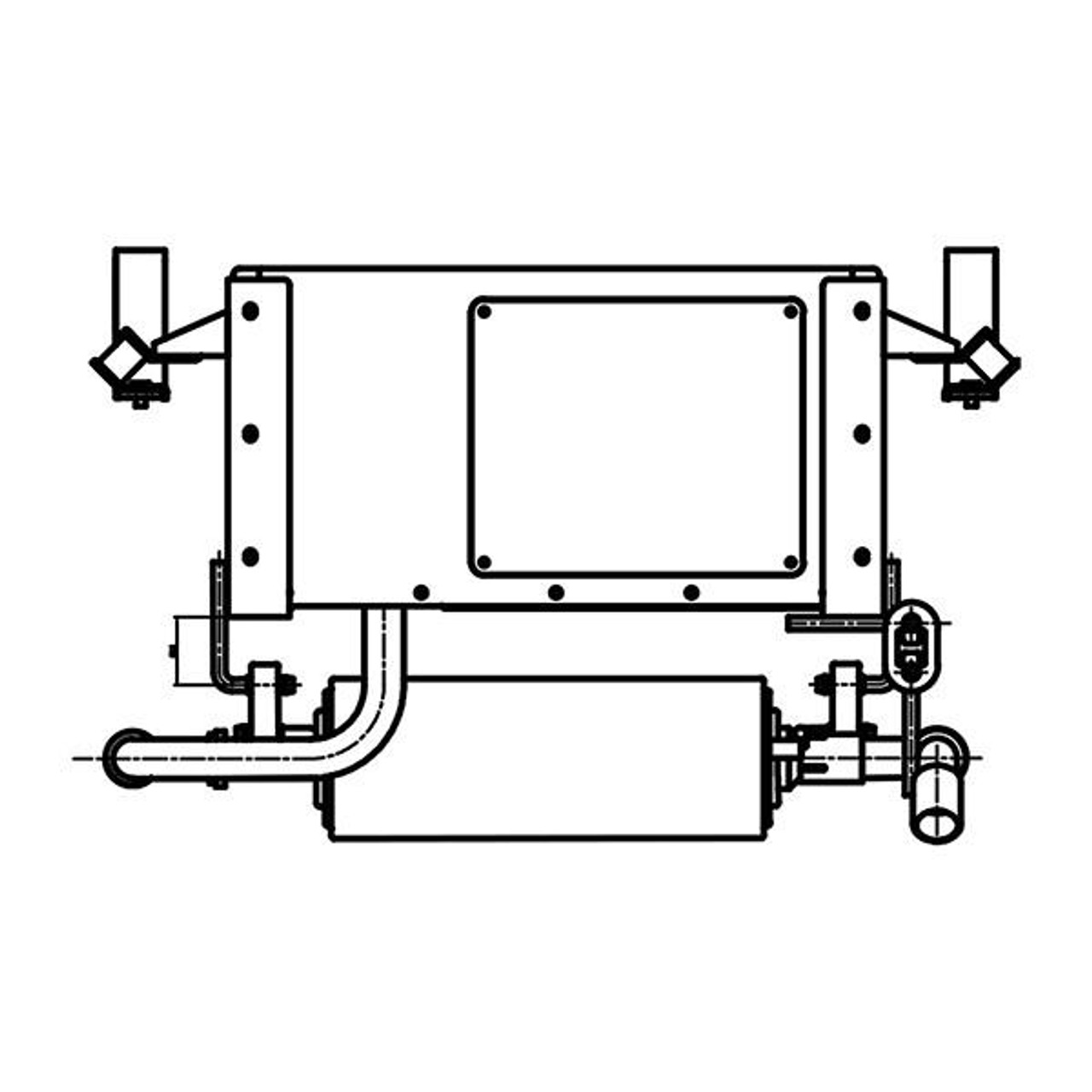

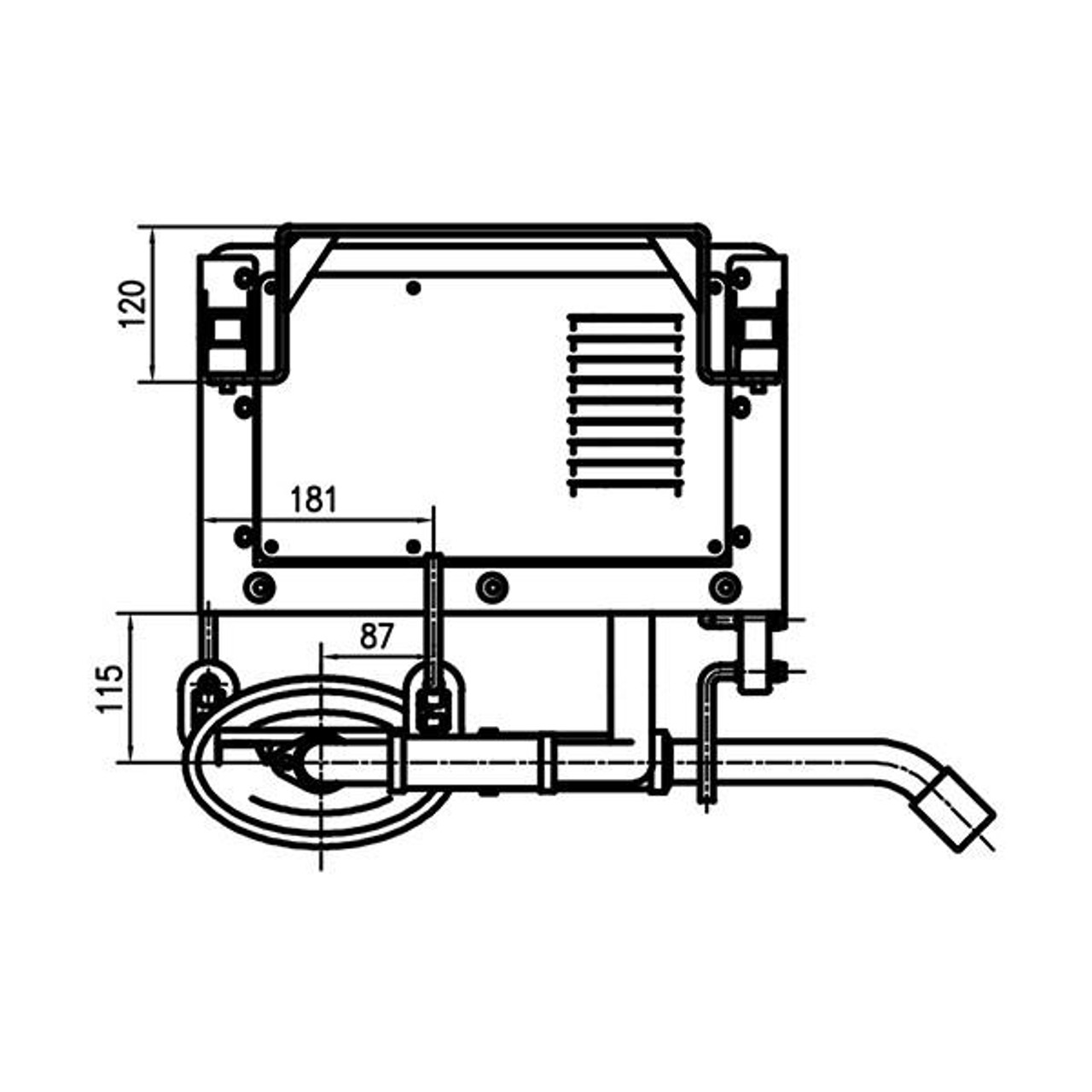

The Hyundai HY3500RVi is an inverter generator designed to be mounted underneath a RV motorhome, horsebox, truck, or camper. It can be permanently mounted to the chassis or mounted within a locker on slide out mounts.
IC225 4-stroke OHV Petrol Engine
Powered by the Hyundai IC225 4-stroke OHV petrol engine with electric start, electronic ignition and low oil level protection, the HY3500RVI has an impressive maximum output of 3500w / 3.5kW, and continuous power rating of 3000w / 3kW.
Tri-fan System To Increase Cooling And Reduce Noise

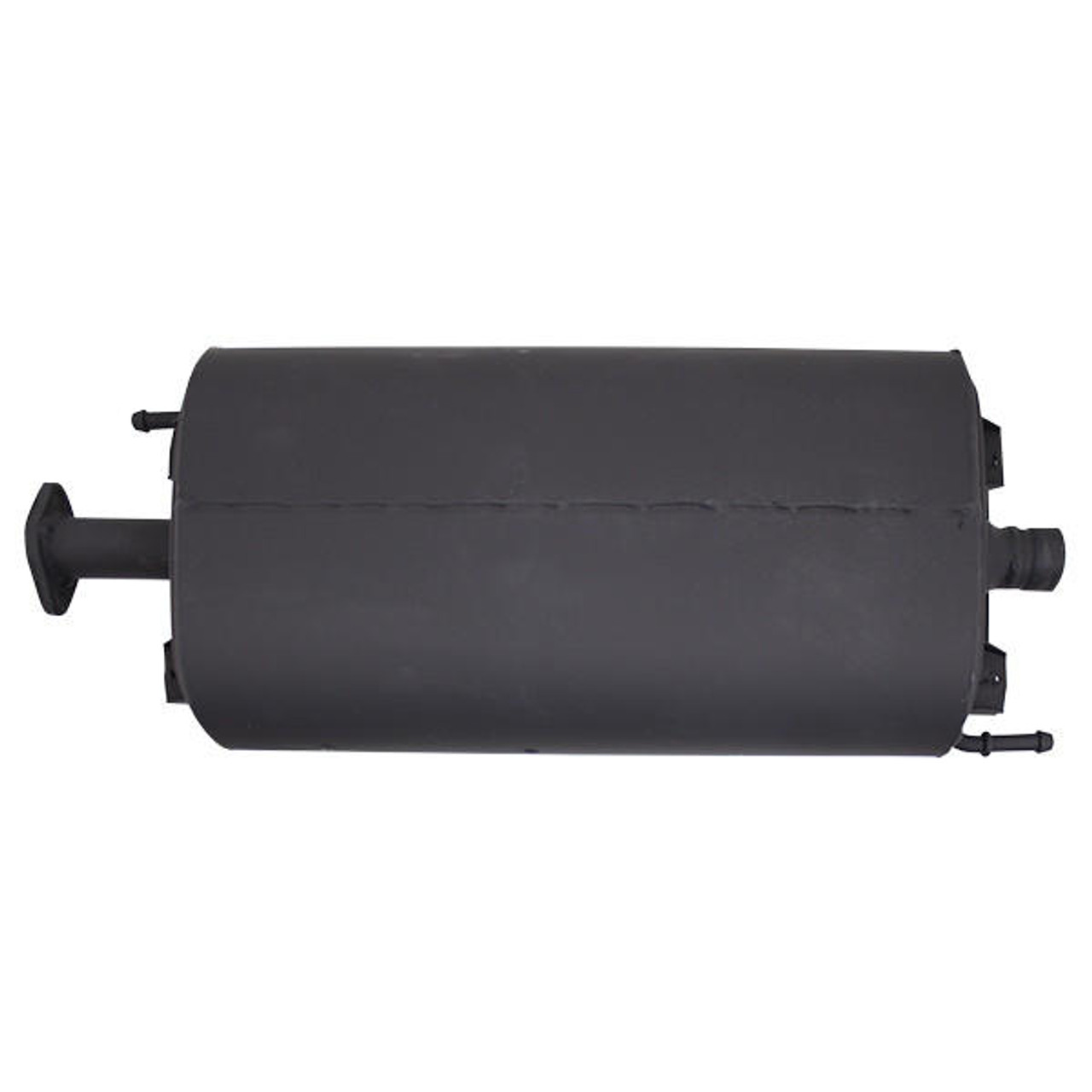

The air-cooled engine draws in cool air around the sides of the canopy through a Tri-fan system to increase cooling and reduce noise and the hot air and exhaust fumes are directed downwards and expelled underneath the vehicle. The generator comes with an additional external exhaust silencer to be mounted underneath the vehicle to further reduce noise levels.
24 Litre Stainless Steel Petrol Tank
The external 24 litre stainless steel petrol tank comes with mounting brackets and a filler tube and fittings to fit the filler in the outside panel of the vehicle. It incorporates a fuel pump and fuel level sender unit.This will give a run time of up to 24 hours with a light load and 12 hours under full load.
Low Noise, Low Vibration And Good Fuel Economy

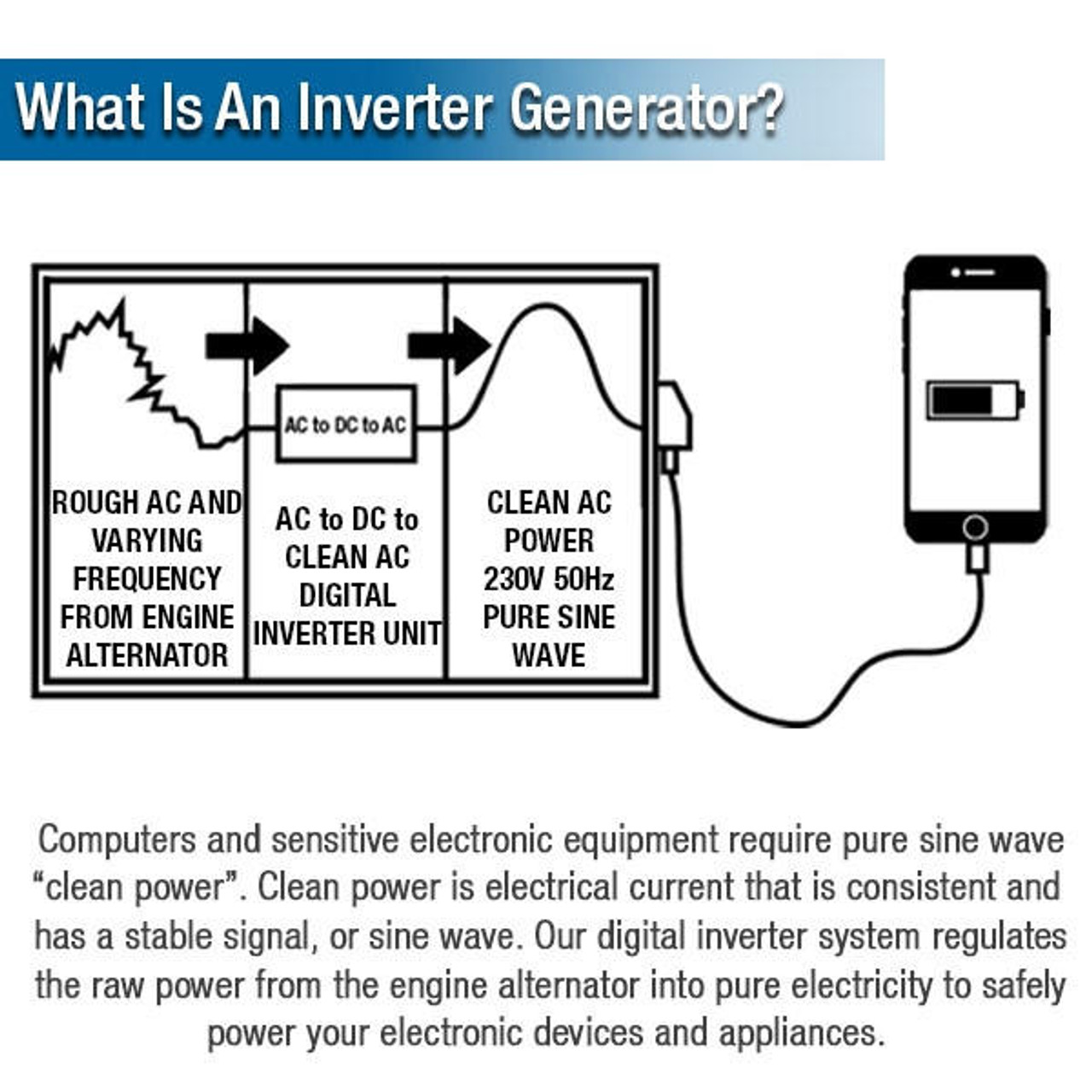

Designed to offer low noise, low vibration and good fuel economy the HY3500RVi features a triple anti-vibration system, twin silencers, triple fan cooling system and digital inverter technology to reduce engine rpm and noise which increases fuel economy and engine lifespan, whilst delivering a fully overload protected pure sine wave clean power output.

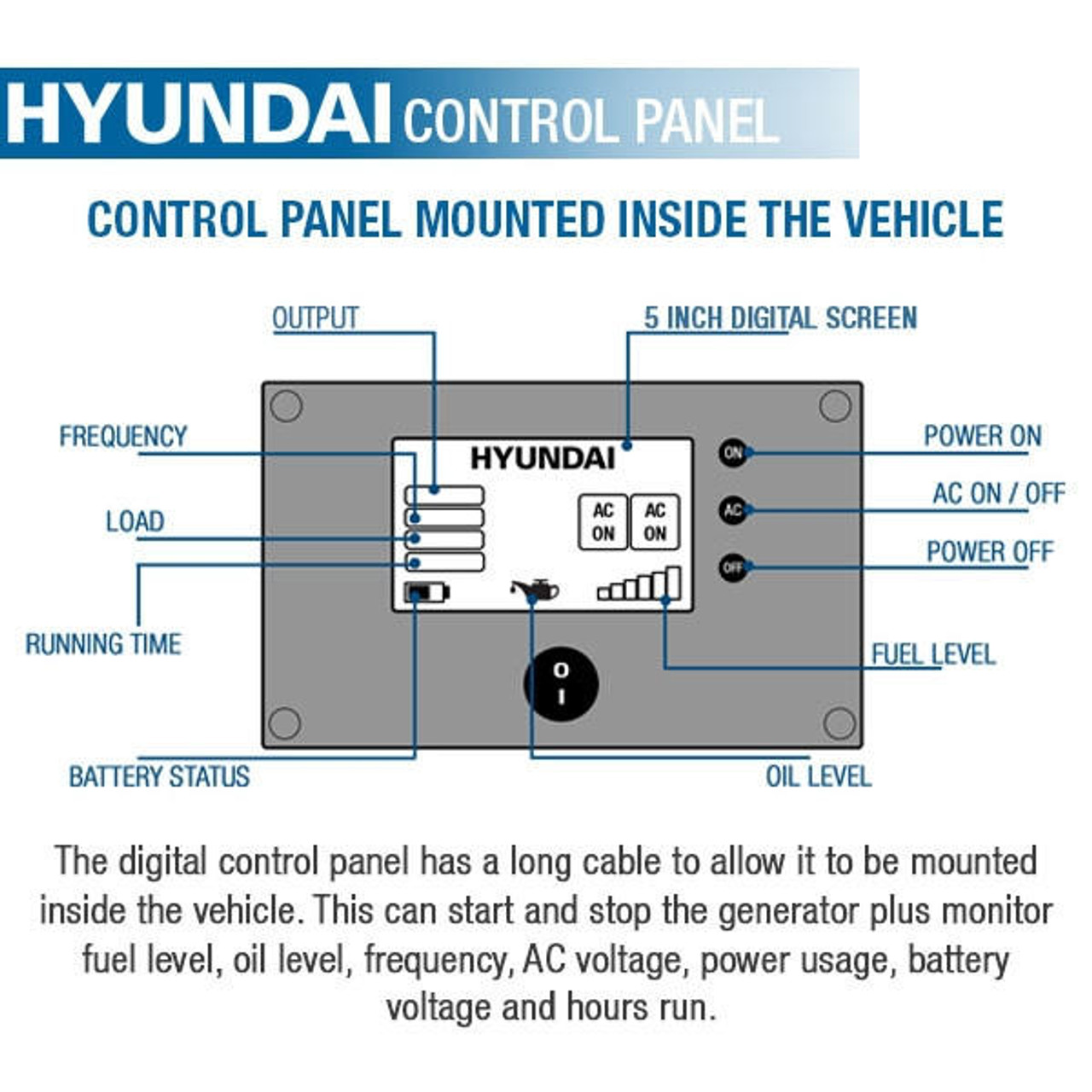

Digital Control Panel

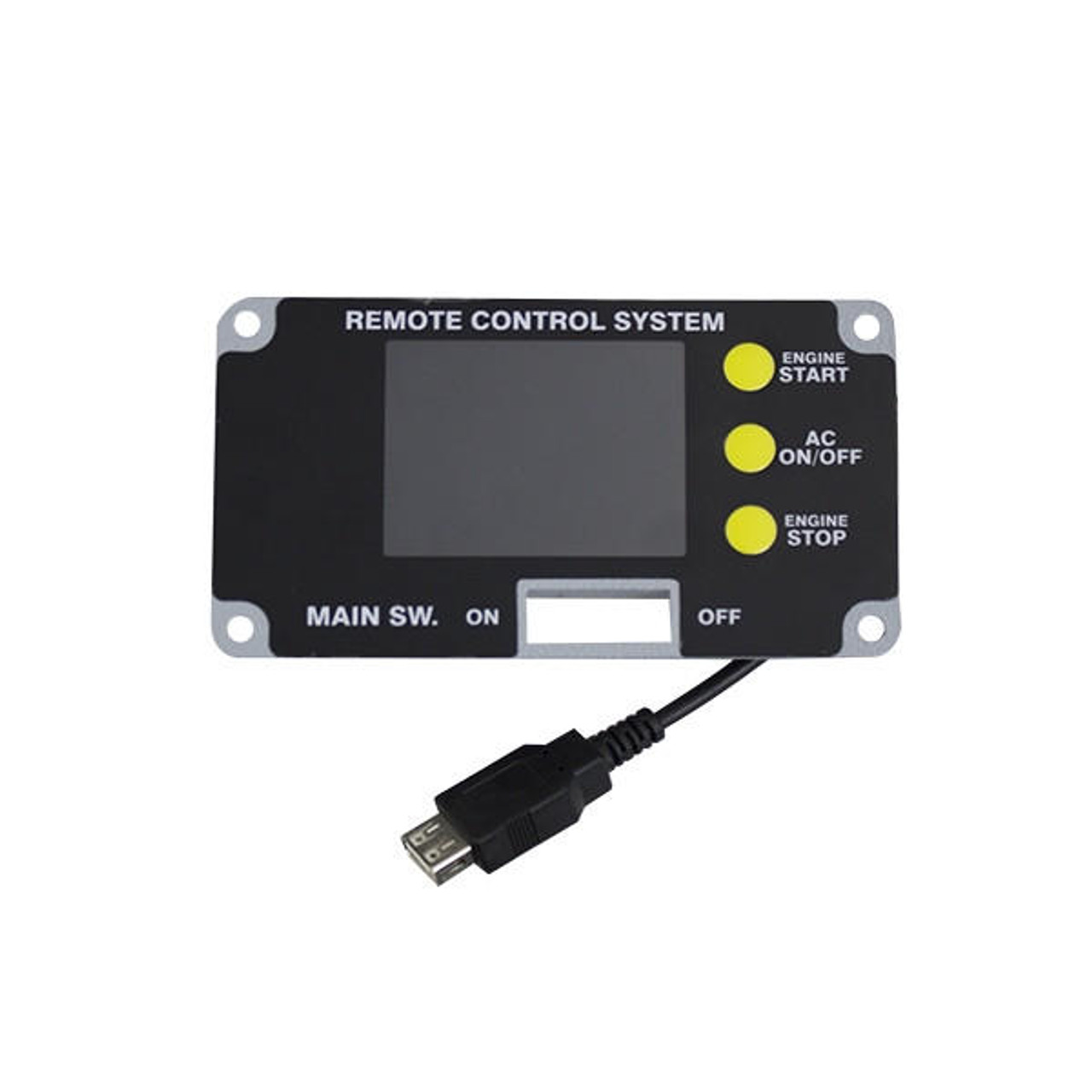

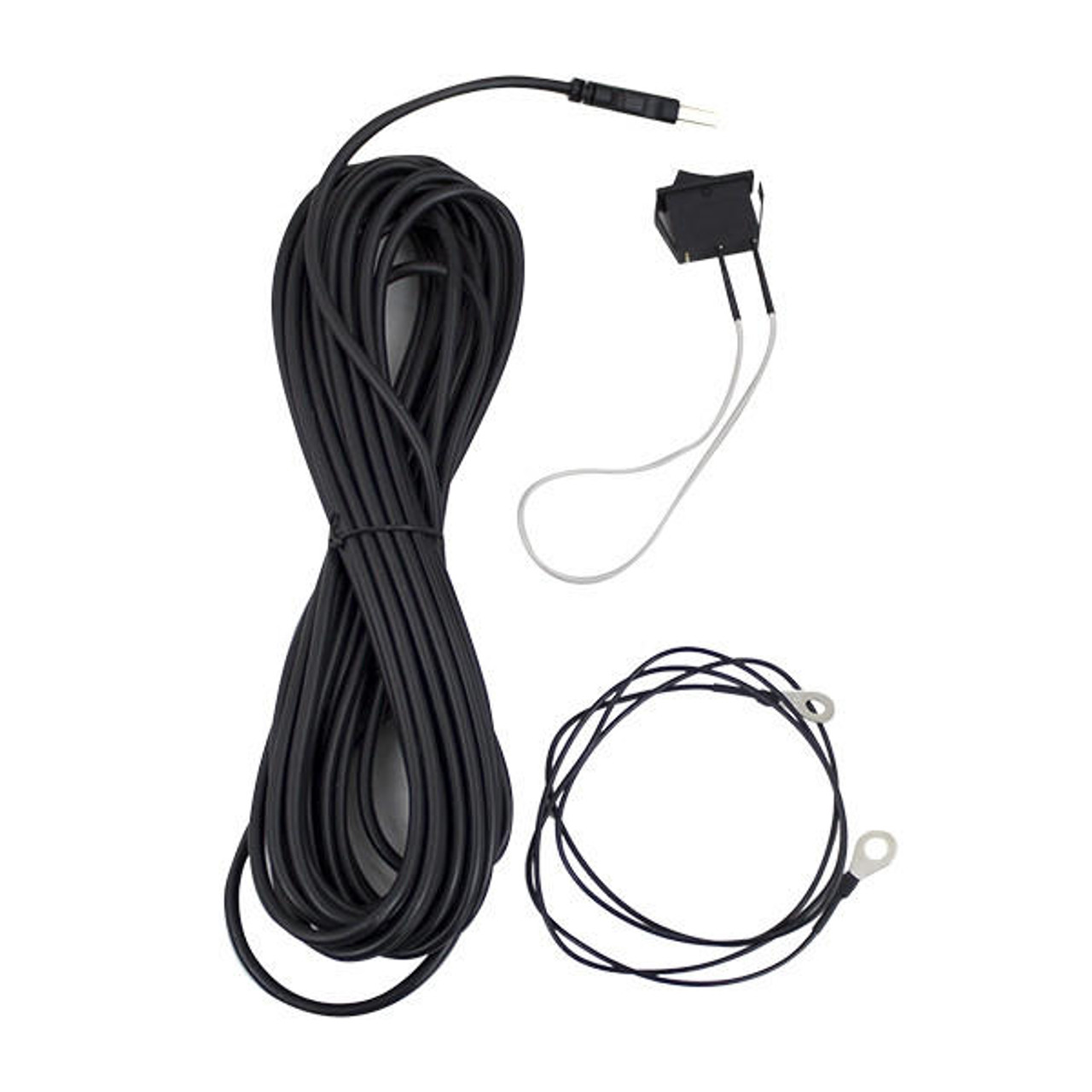

The digital control panel has a 6m cable to allow it to be mounted inside the vehicle and can start and stop the generator plus monitor fuel level, oil level, frequency, AC voltage, power usage, battery voltage and hours run.
Included with each generator:

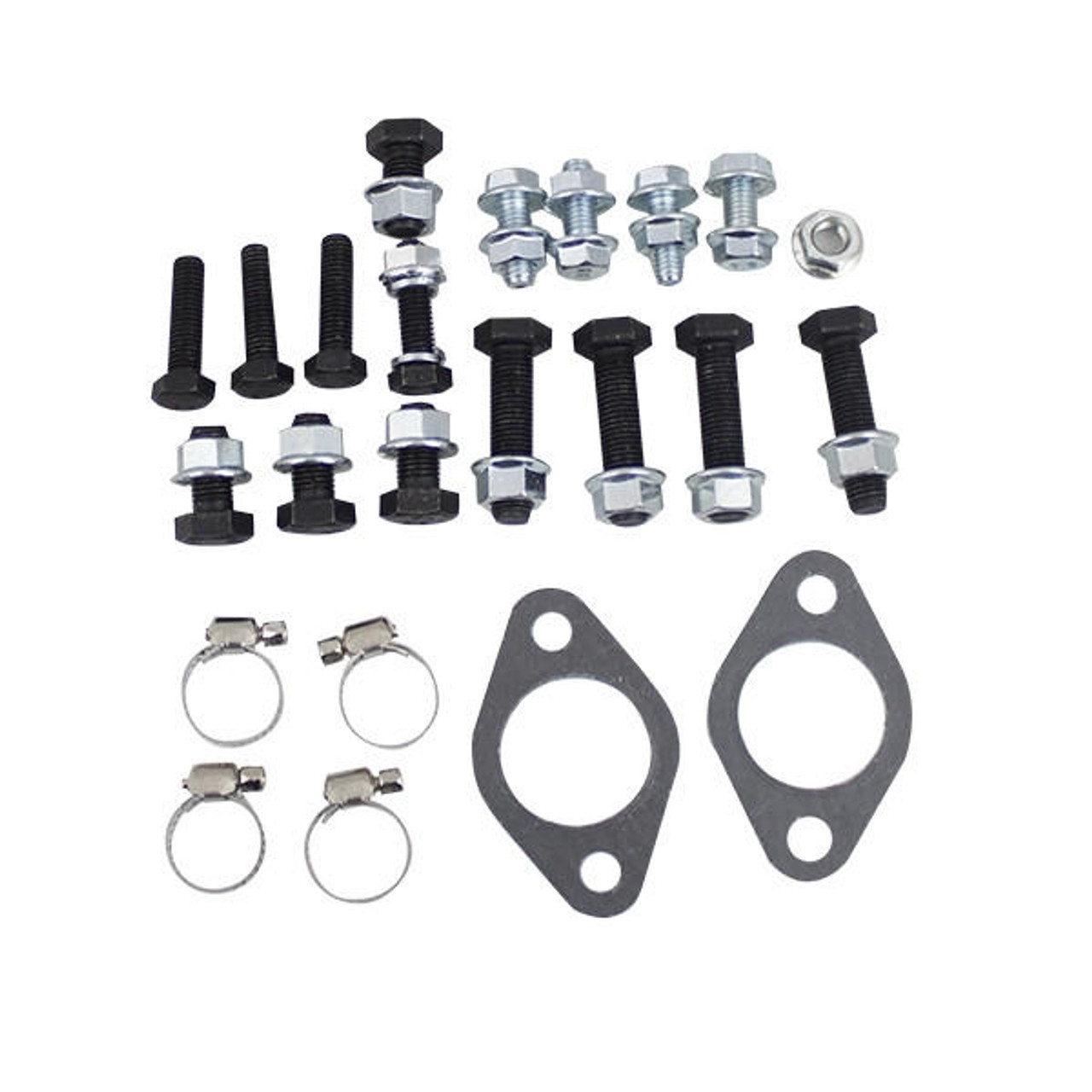

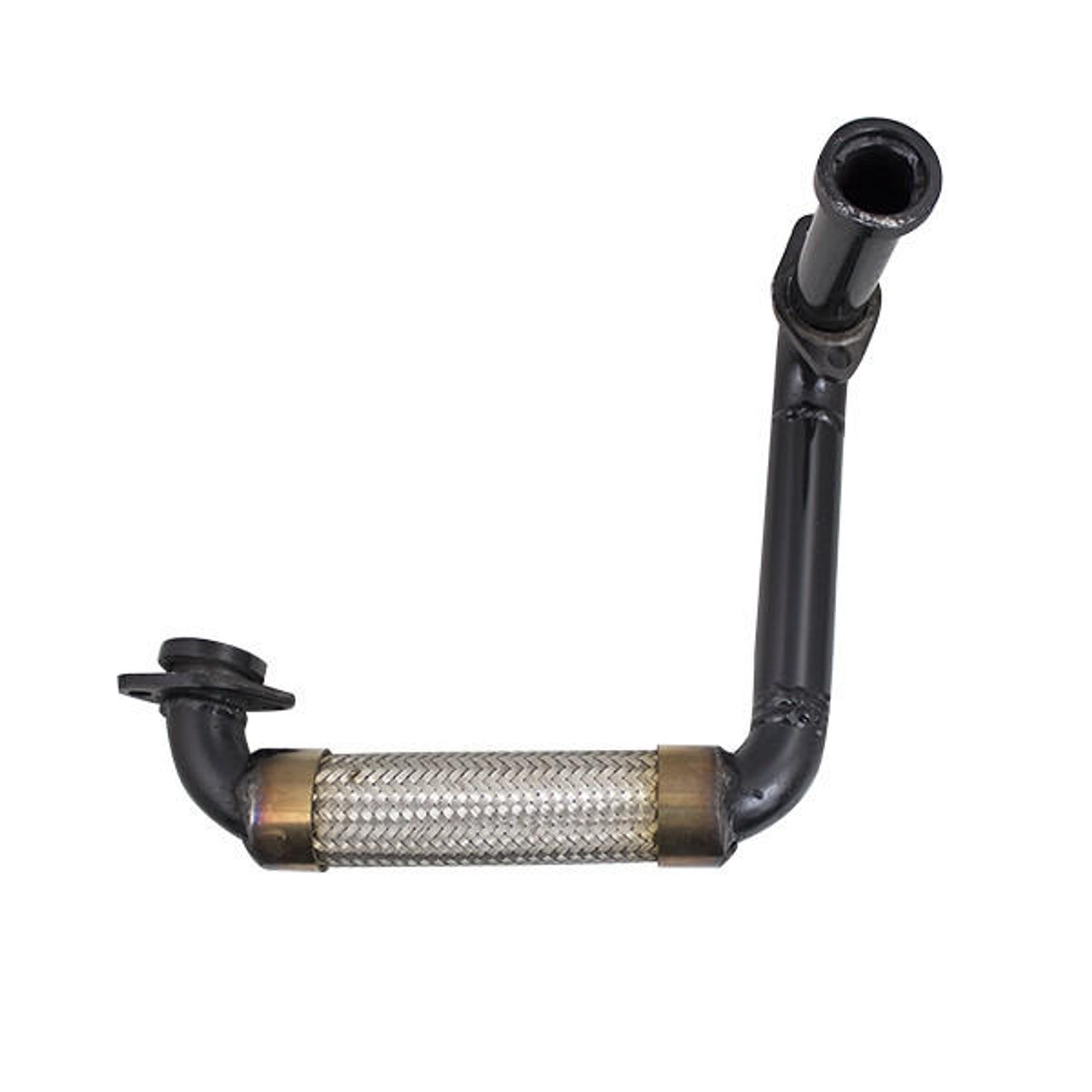

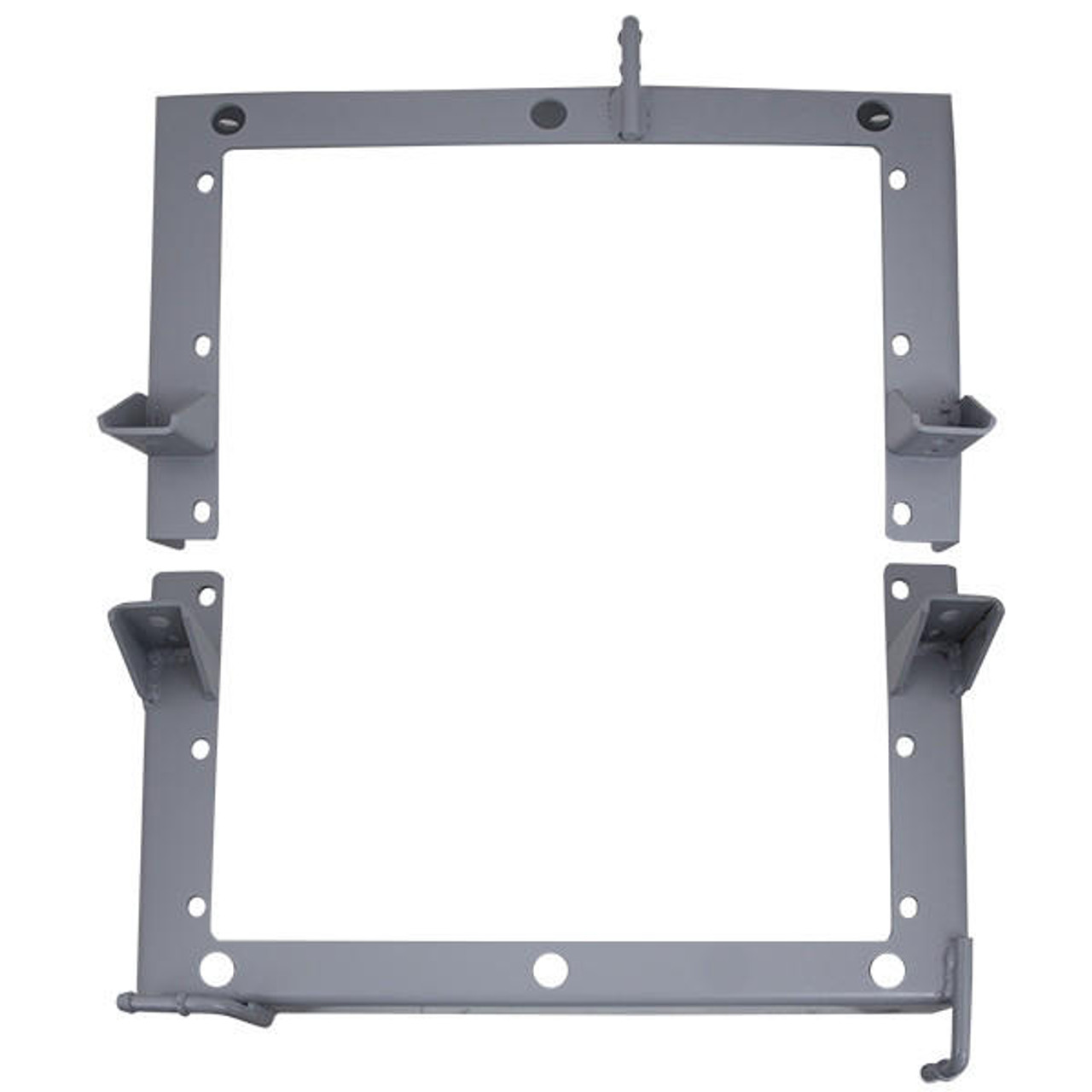

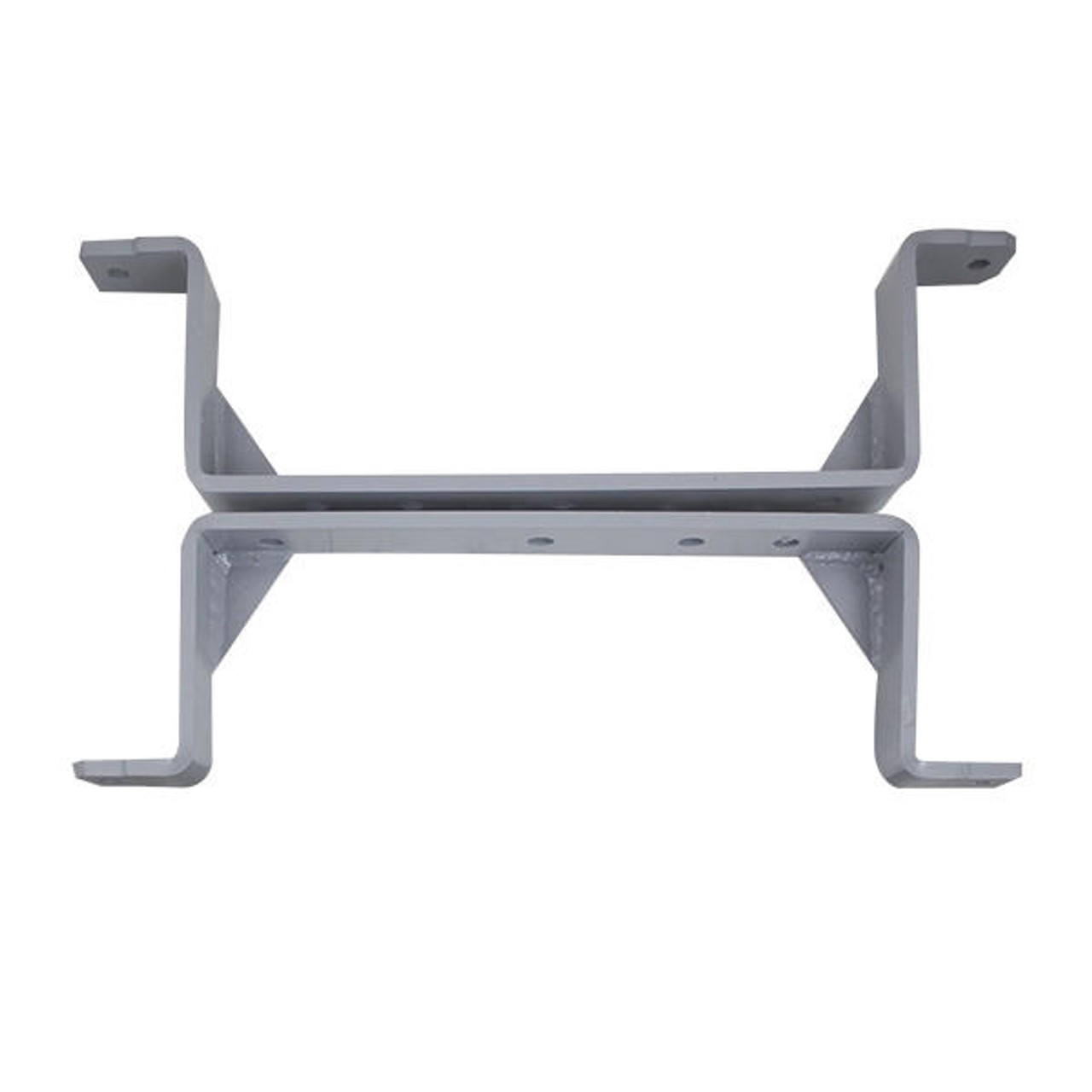

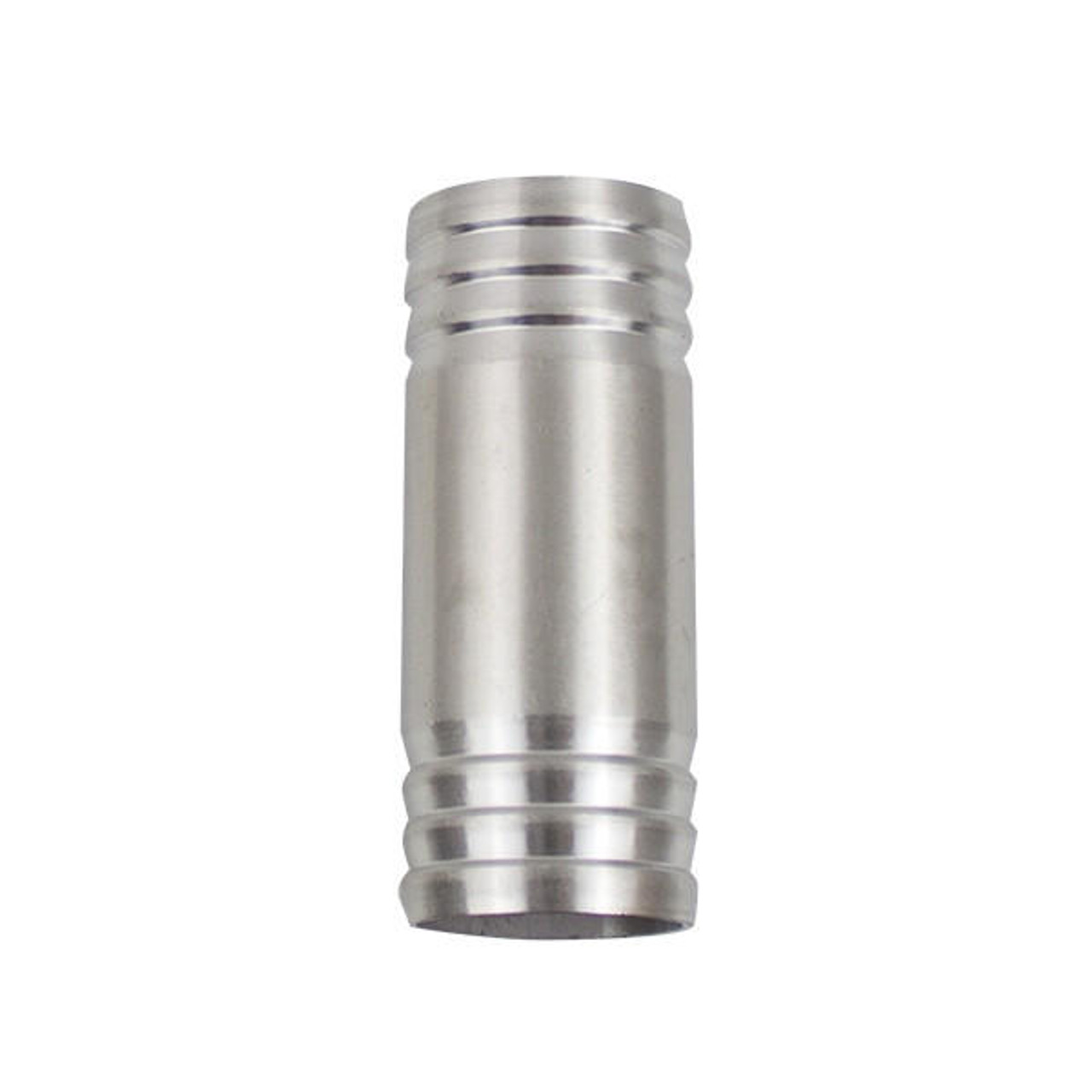

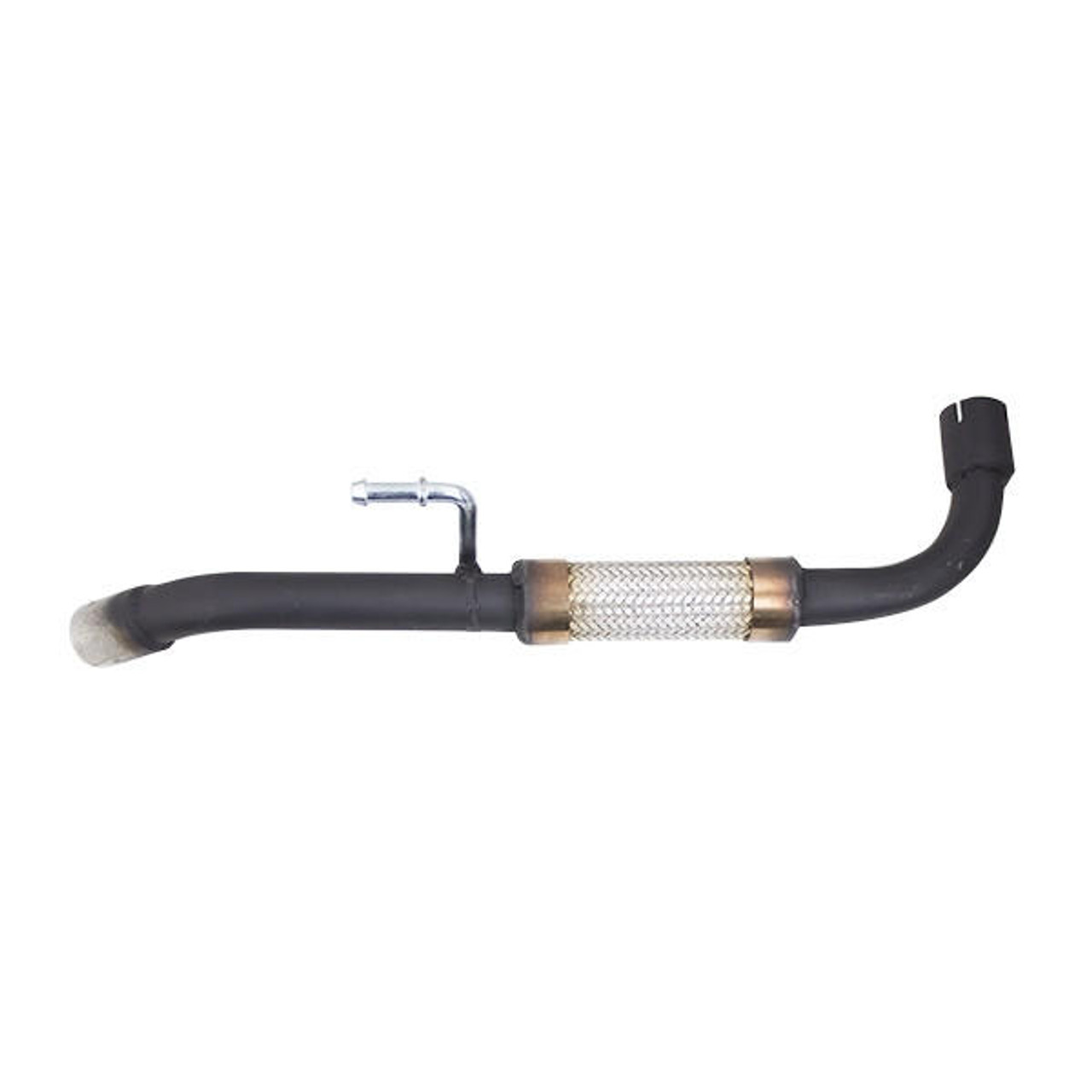

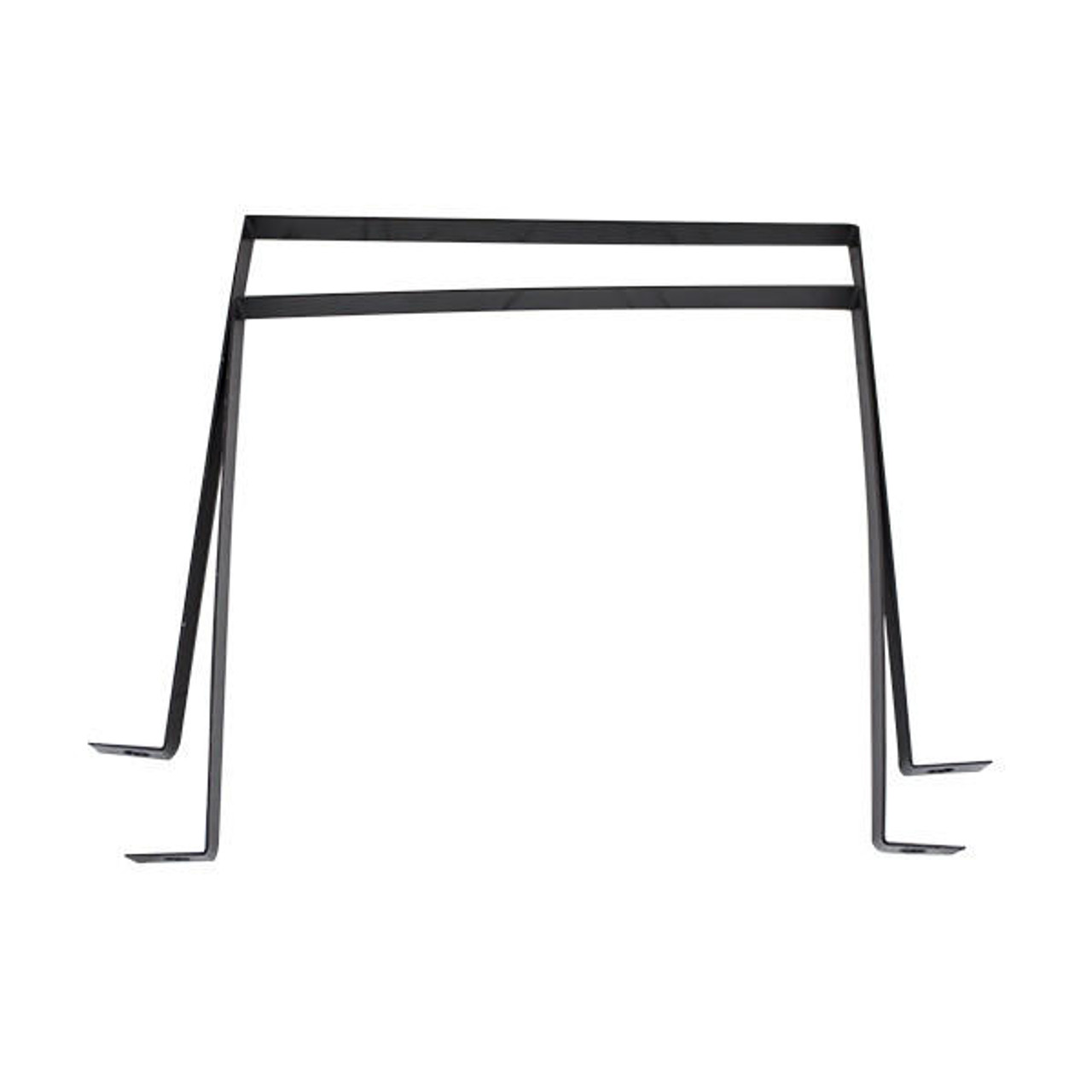

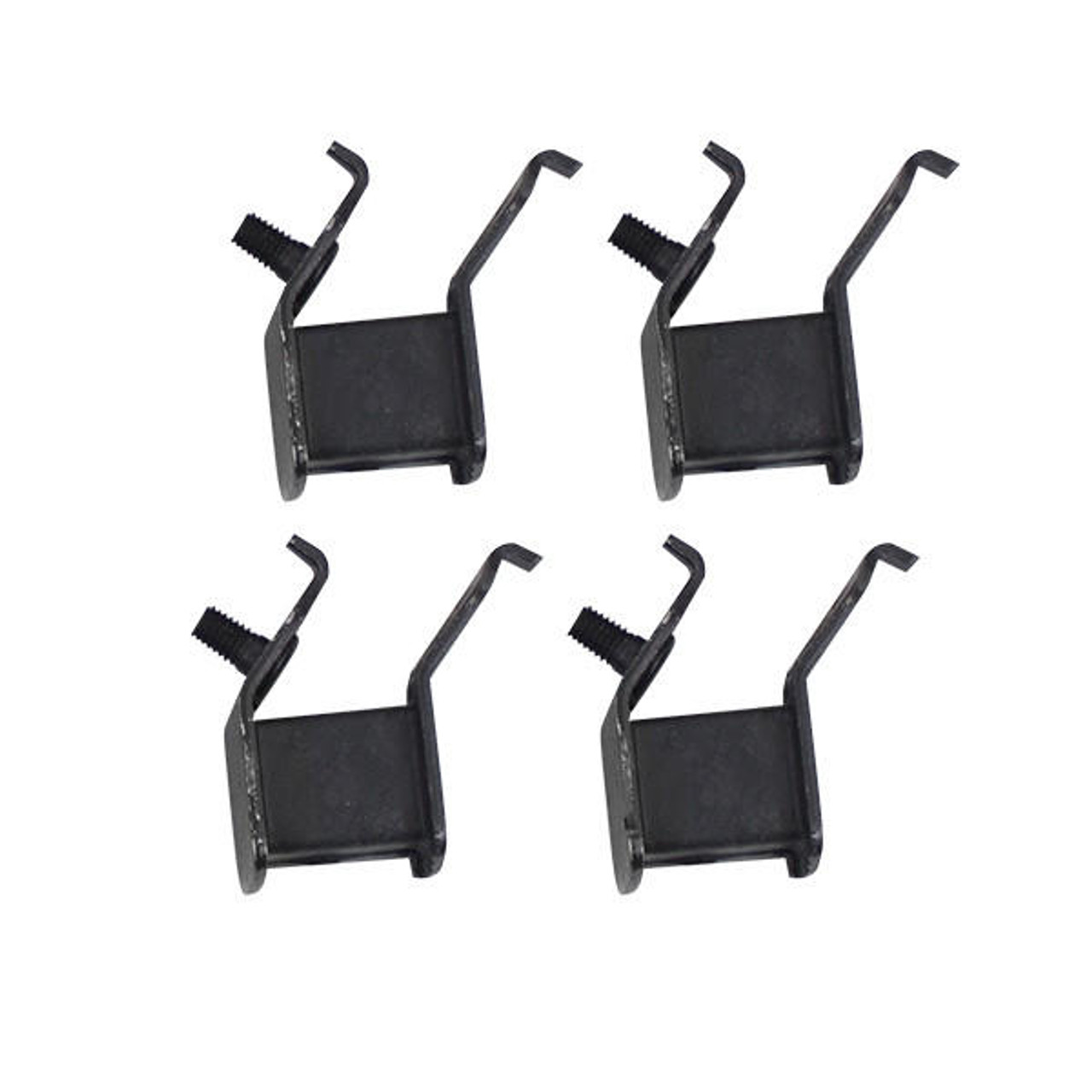

Choice of either slide out mounting brackets or fixed under chassis mounts, 24L stainless steel petrol tank includes fuel pump and sender, with mounting brackets and extended fuel filler tube with fittings, 6m cable and digital control panel, external silencer and flexible connecting pipe.
Engine Oil Included (15w40 / 10w40 grade)
Warranty
Covered by the Hyundai two year warranty.

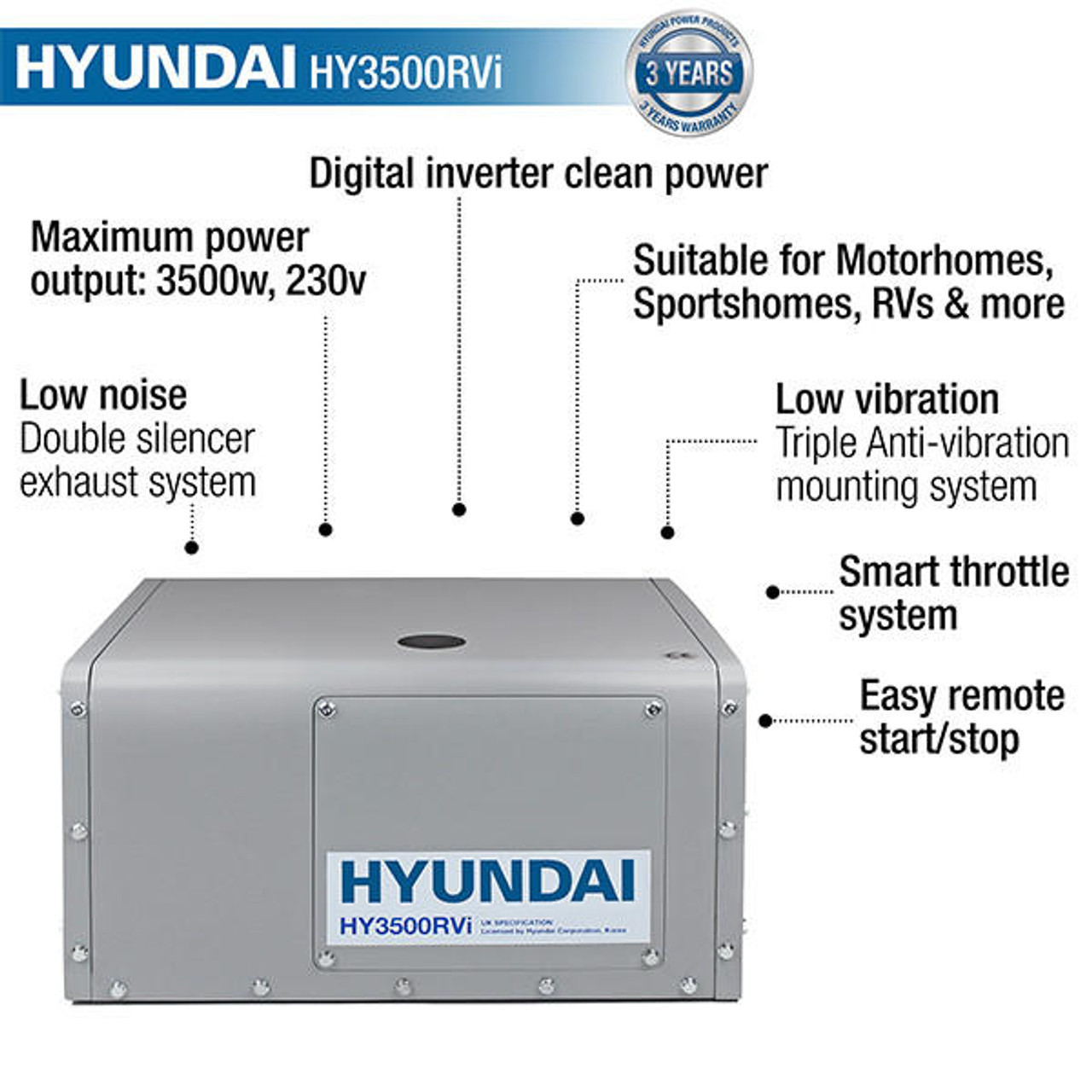

Key Features
Power – Maximum output 3500w, 230v
Digital inverter clean power
Economy – Smart throttle system
Easy- Remote start/stop

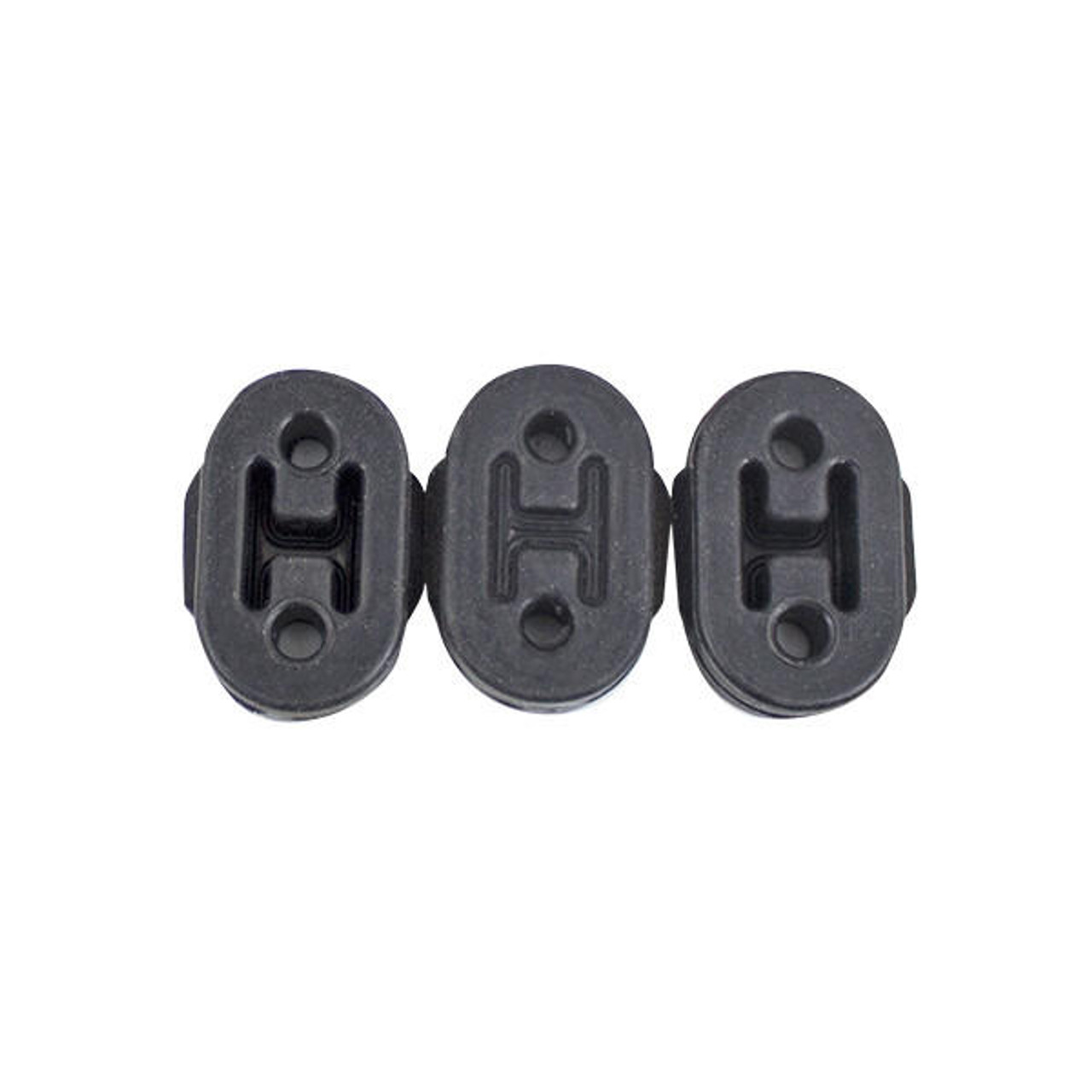

Low vibration- Triple Anti-vibration mounting system

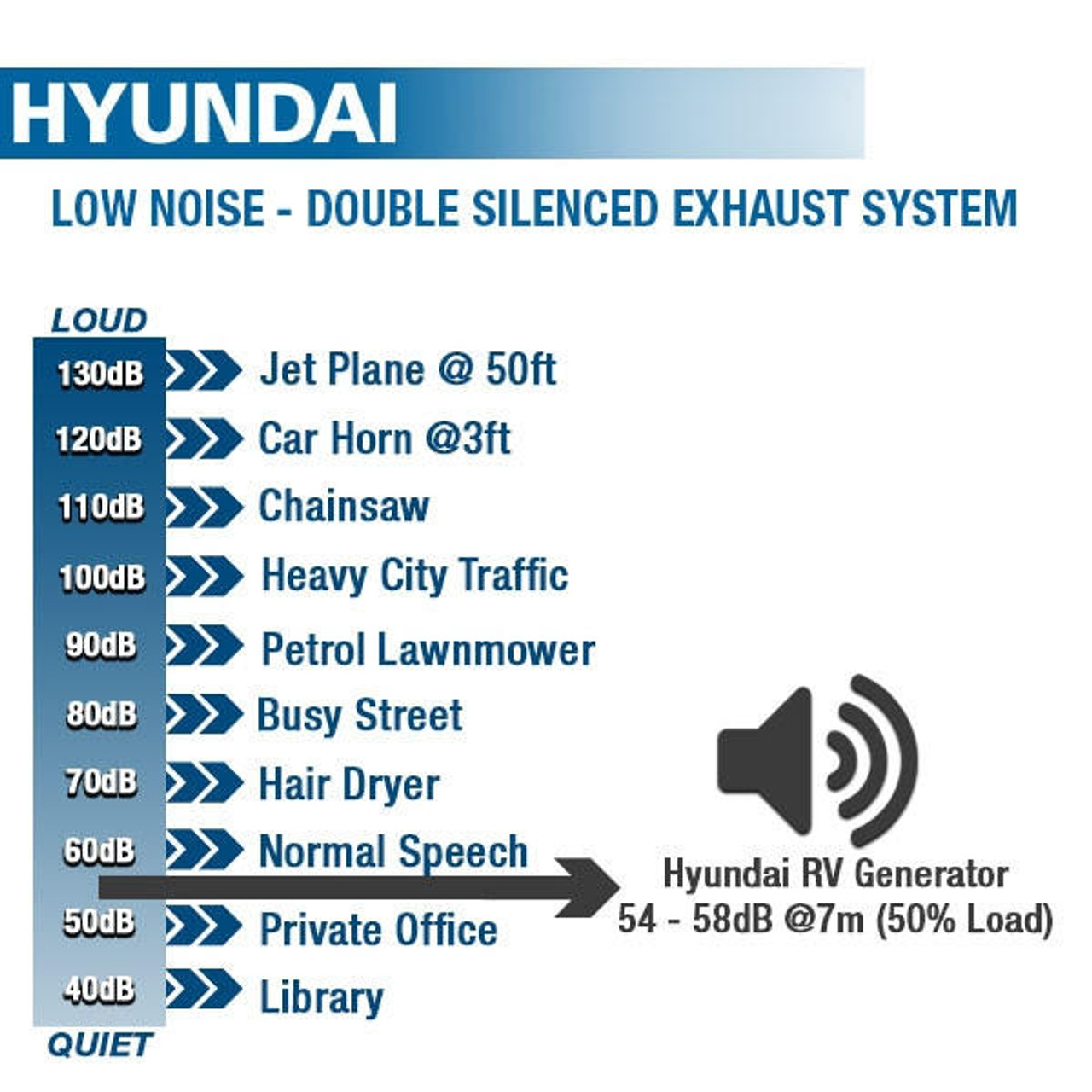

Low noise- Double silencer exhaust system
Complete kit ready to install
Suitable for Motorhomes, Sportshomes, RVs, welfare vehicles, horse lorries, race trucks, service vans etc.
Engine oil included (15w40 / 10w40 grade)
Full UK spares and technical support
Covered by Hyundai 2 year standard warranty

  • Power – Maximum output 3500w, 230v
  • Digital inverter clean power
  • Economy – Smart throttle system
  • Easy- Remote start/stop
  • Low vibration- Triple Anti-vibration mounting system
  • Low noise- Double silencer exhaust system
  • Complete kit ready to install
  • Suitable for Motorhomes, Sportshomes, RVs, welfare vehicles, horse lorries, race trucks, service vans etc.
  • Engine oil included (15w40 / 10w40 grade)
  • Full UK spares and technical support
  • Covered by Hyundai 2 year standard warranty

£2,618.99

EAN: 600231974226 SKU: HY3500RVi Category:

Specification

Model HY3500RVi
Start Method Electric Start
Maximum Output (kW/w) 3.5/3500
Continuous Output (kW/w) 3/3000
Run Time @ 50% load (hours)
Fuel Consumption @ 100% load (L/Hr) 2.1
Fuel Consumption @ 50% load (L/Hr) 1.3
Voltage Regulation Method Digital Inverter Regulation
Phase Single
Voltage 230
Connection Method(s) 230V/13A
Rated Speed (RPM) 2800 – 3600
Frequency (Hz) 50
Max/Continuous Current (Amps) 0.95
Power Factor (Cosφ) JF210
Engine Model 4-Stroke OHV Air-cooled
Engine Type 208
Engine Size (cc) 7
Power Output (hp) Unleaded Petrol
Fuel 24
Fuel Capacity (L) SAE 15W-40
Engine Oil 600
Engine Oil Capacity (ml) 1
No. of Cylinders
Features AC OFF 2800RPM
Casing Closed
Noise Level db (A) @ 7m 58
Wheel Kit? No
Gross Weight (kg) 65
Net Weight (kg) 46
Fully Assembled Dimensions (H x W x L) (mm) 545 x 455 x 530
Package Dimensions (H x W x L) (mm) 730 x 580 x 675
Fuel/Power Source Petrol
Product Type Generator
Warranty (years) 2
Commercial Warranty (years) 1
Model EAN 600231974226

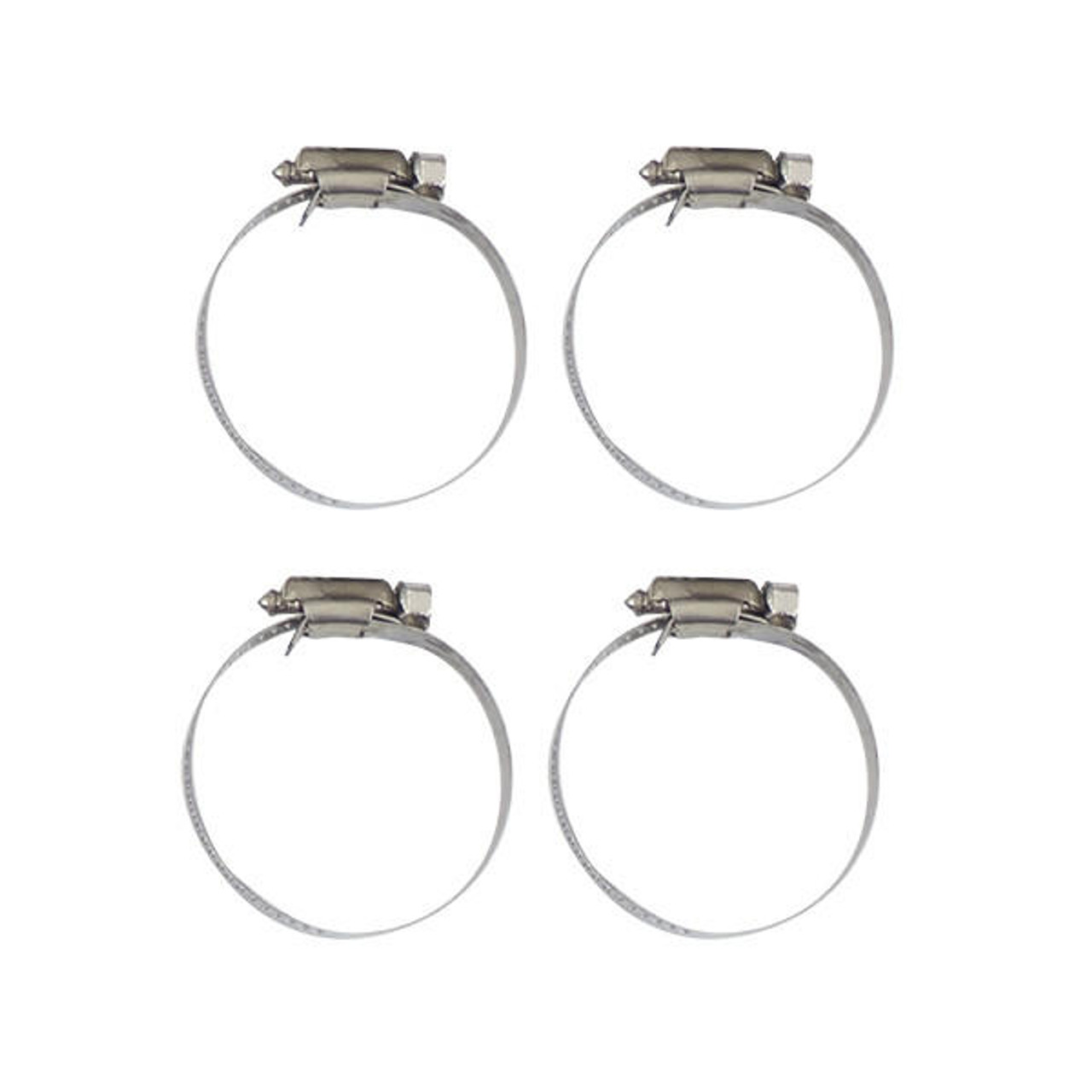

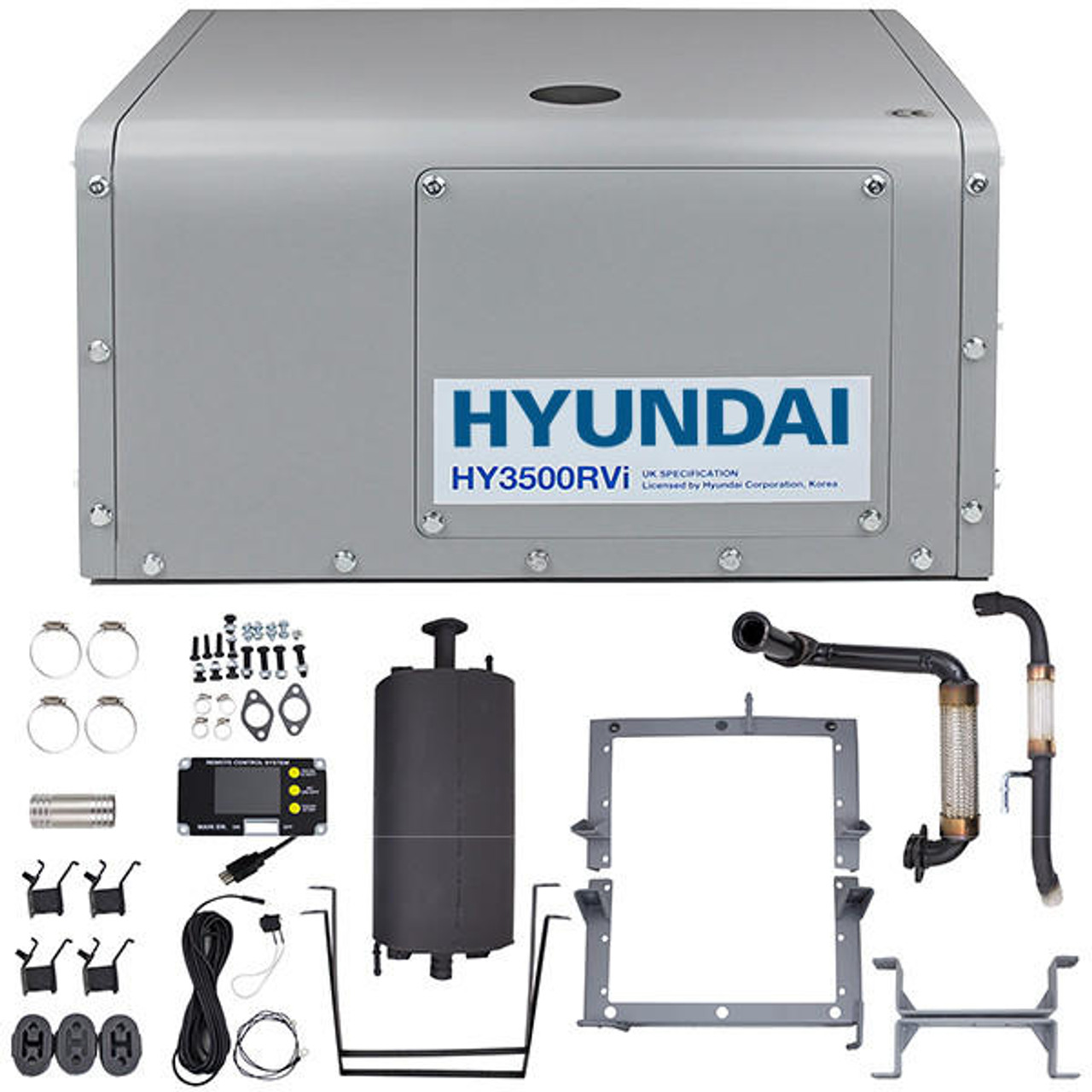

In The Box HY35000RVi, Engine Oil (15w40grade), User Manual, Under-Chassis Mounts, Fuel Tank Mounting Brackets, Extended Fuel Filler Tube With Fittings, 8m Cable and Digital Control Panel, External Silencer, Flexible Connecting Pipe
Assembly Required? Yes – some assembly may be required
