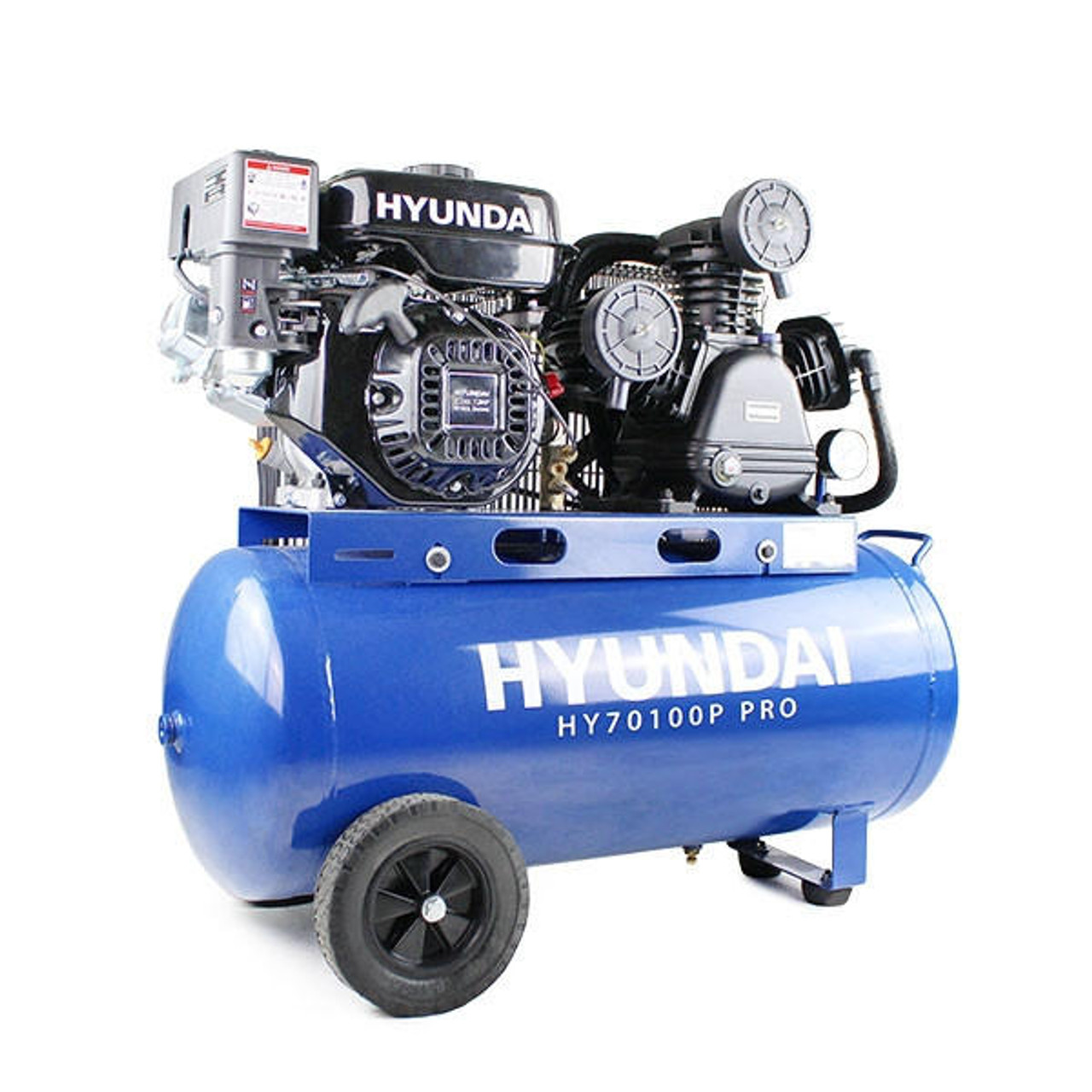

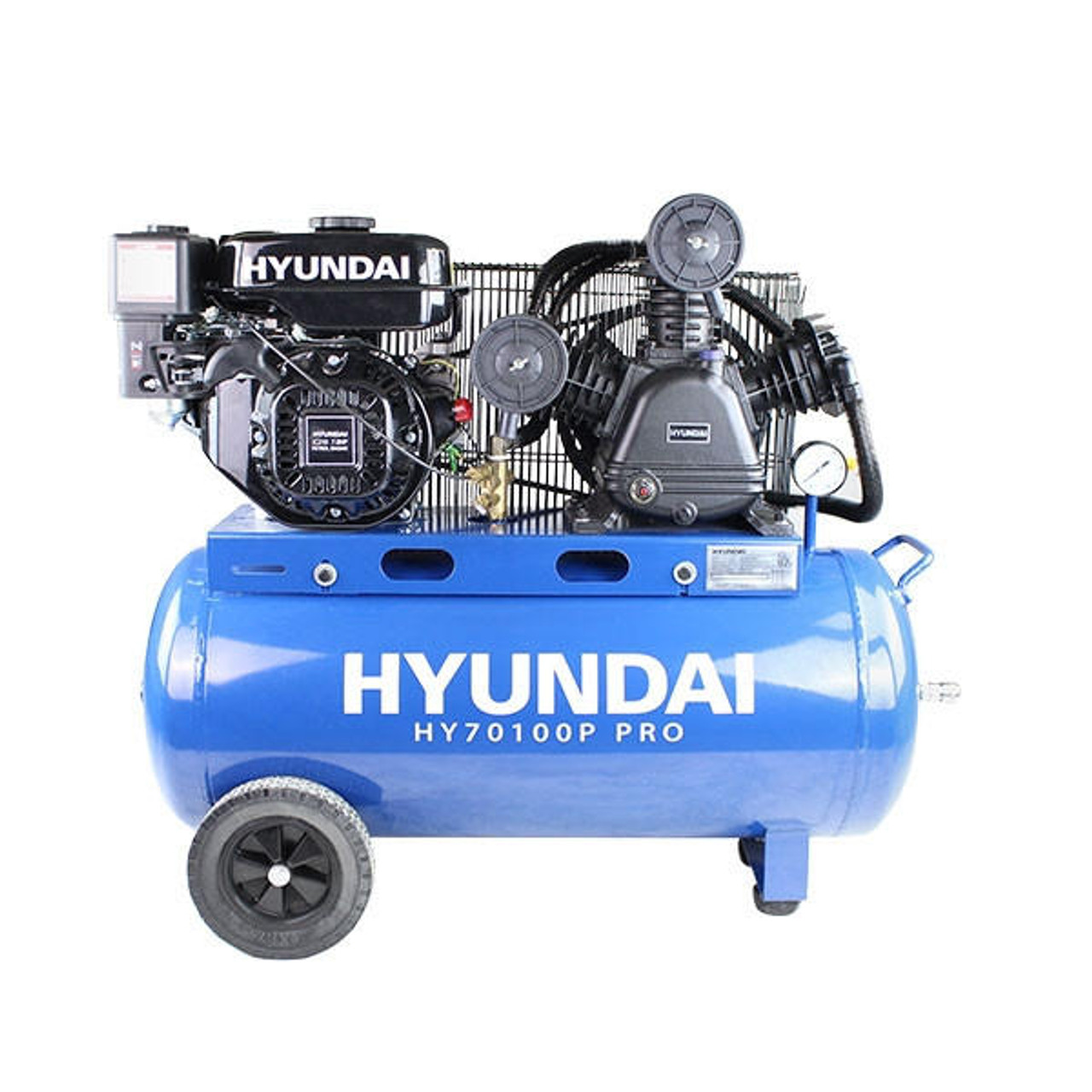

Hyundai HY70100P 90 Litre Air Compressor 10.7CFM/145psi Petrol 7hp

Description

Professional Petrol Air Compressor
The HY70100P is a petrol driven air compressor designed for enthusiast and professional use, built to industrial standards. Powered by a 7hp petrol engine and coupled to a heavy-duty, two-stage twin piston, cast iron pump.
Heavy Duty

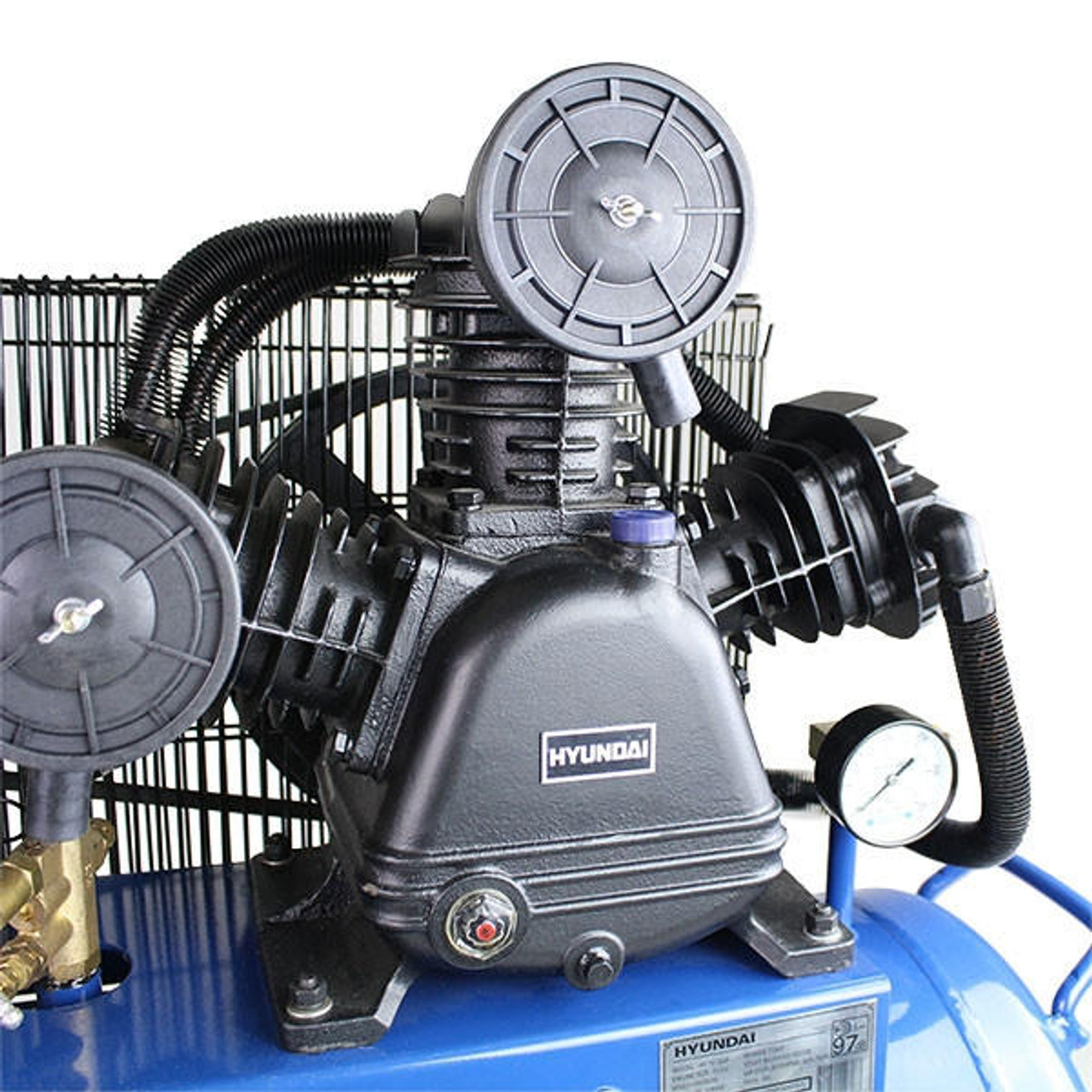

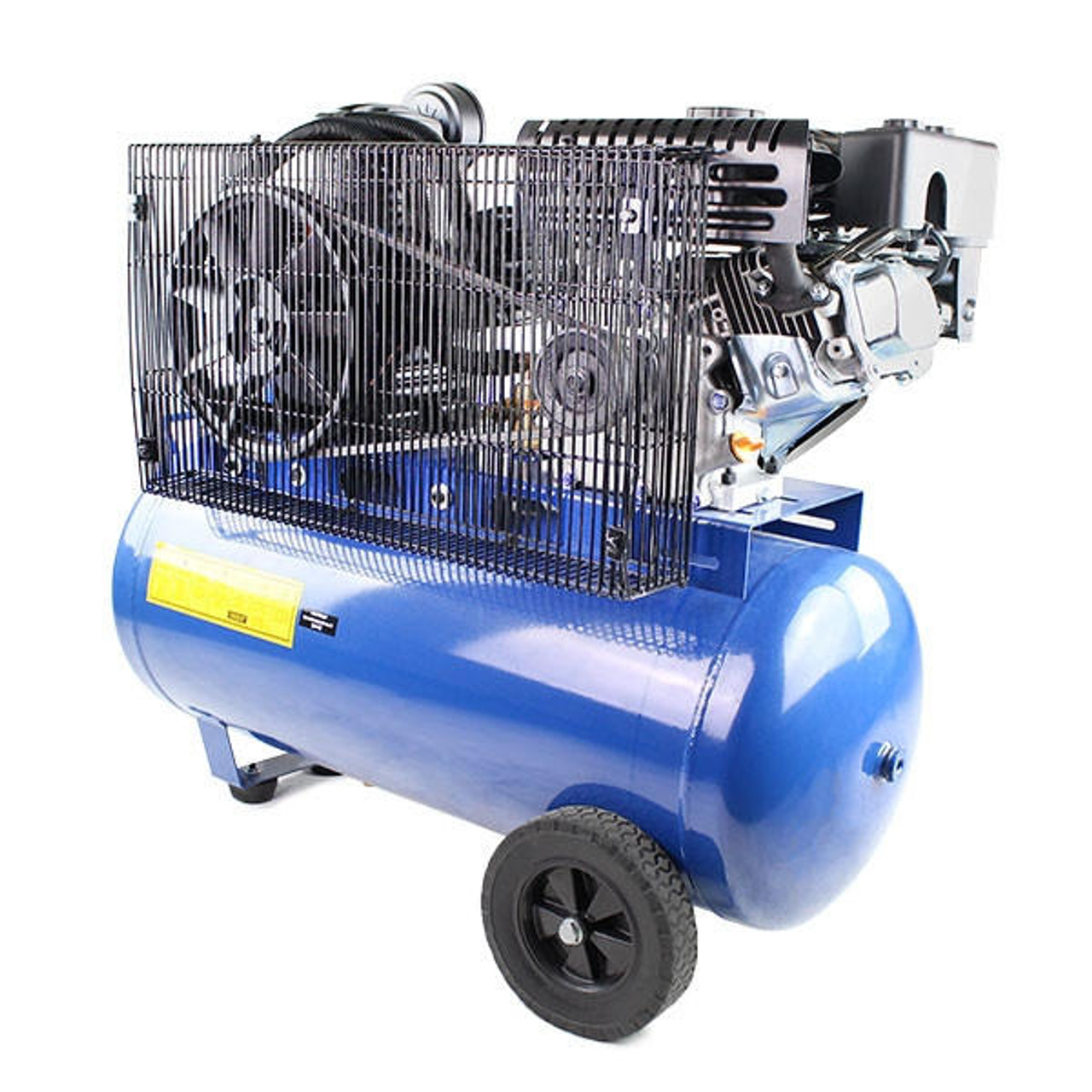

The pump has a heavy duty full cast cylinder, capped by an alloy head for improved heat dissipation and will make for longer life. A strong and long-lasting drive guard protects the belt and flywheel that is designed to force air over the pump to aid cooling.
90L Tank
Equipped with a 90L tank, the HY70100P outputs a commercial level of air, with a maximum output of 10.7CFM. This means this air compressor is ideal as a powerful but portable solution for mobile repair and service.
Easy To Transport

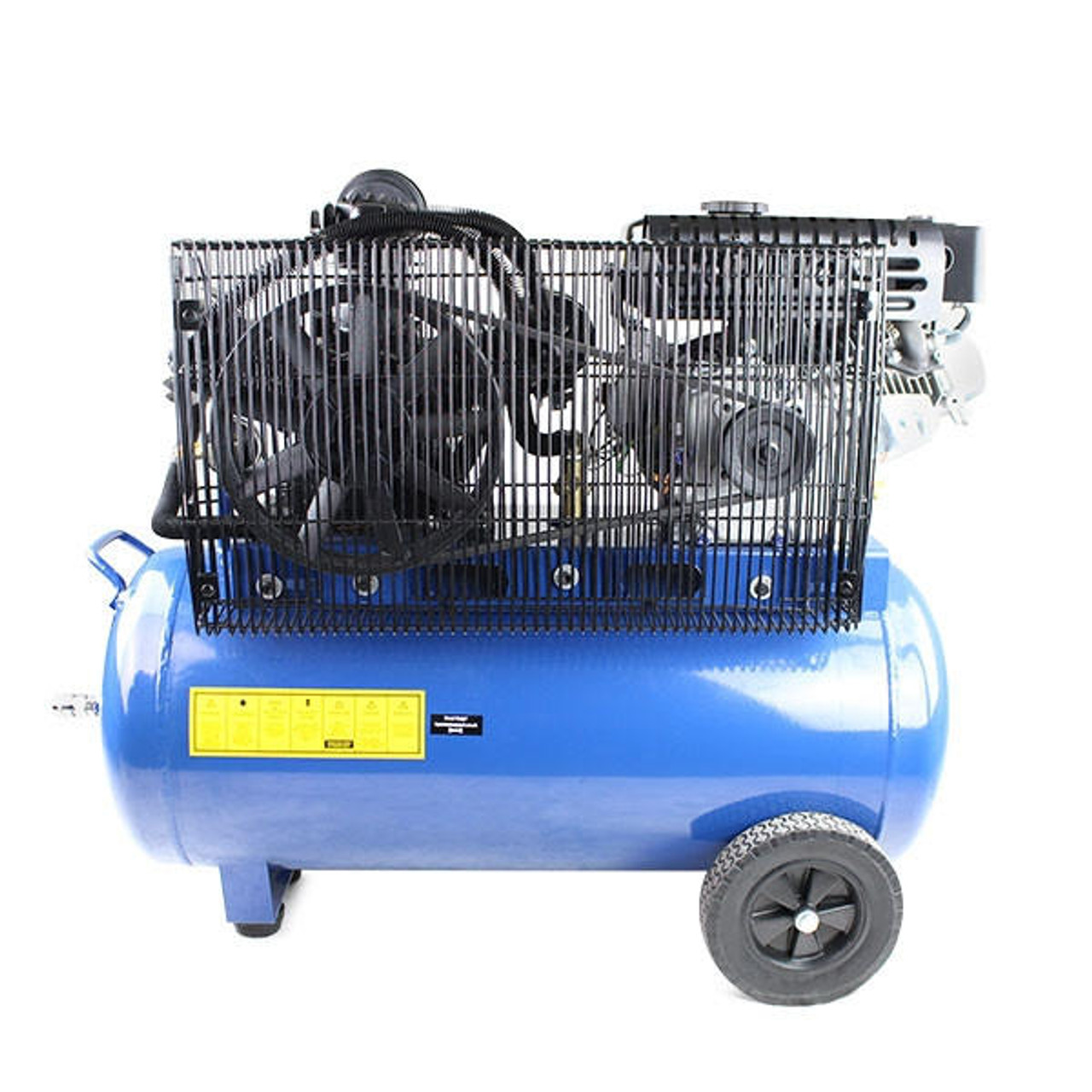

The HY70100P is a relatively lightweight and portable air compressor for its size, weighing only 71kg with built-in wheels and handle for easy transportation and storage.
Please Note
As this unit is driven by a petrol engine it must not be used in enclosed spaces due to the risk of CO poisoning
Compressor Care
Pressure safety valves on Hyundai air compressors have been updated in compliance with the latest CE certification standards. The pressure release pull ring has been removed from the safety valve to prevent it being misused to drain the air from the compressor tank, causing excessive wear to the valve. Air and moisture should always be released using the drain valve located on the bottom of the tank.
Warranty
Covered by 2-year warranty / 1-year commercial warranty.
Key Features
A powerful petrol driven air compressor for enthusiast and professional use.

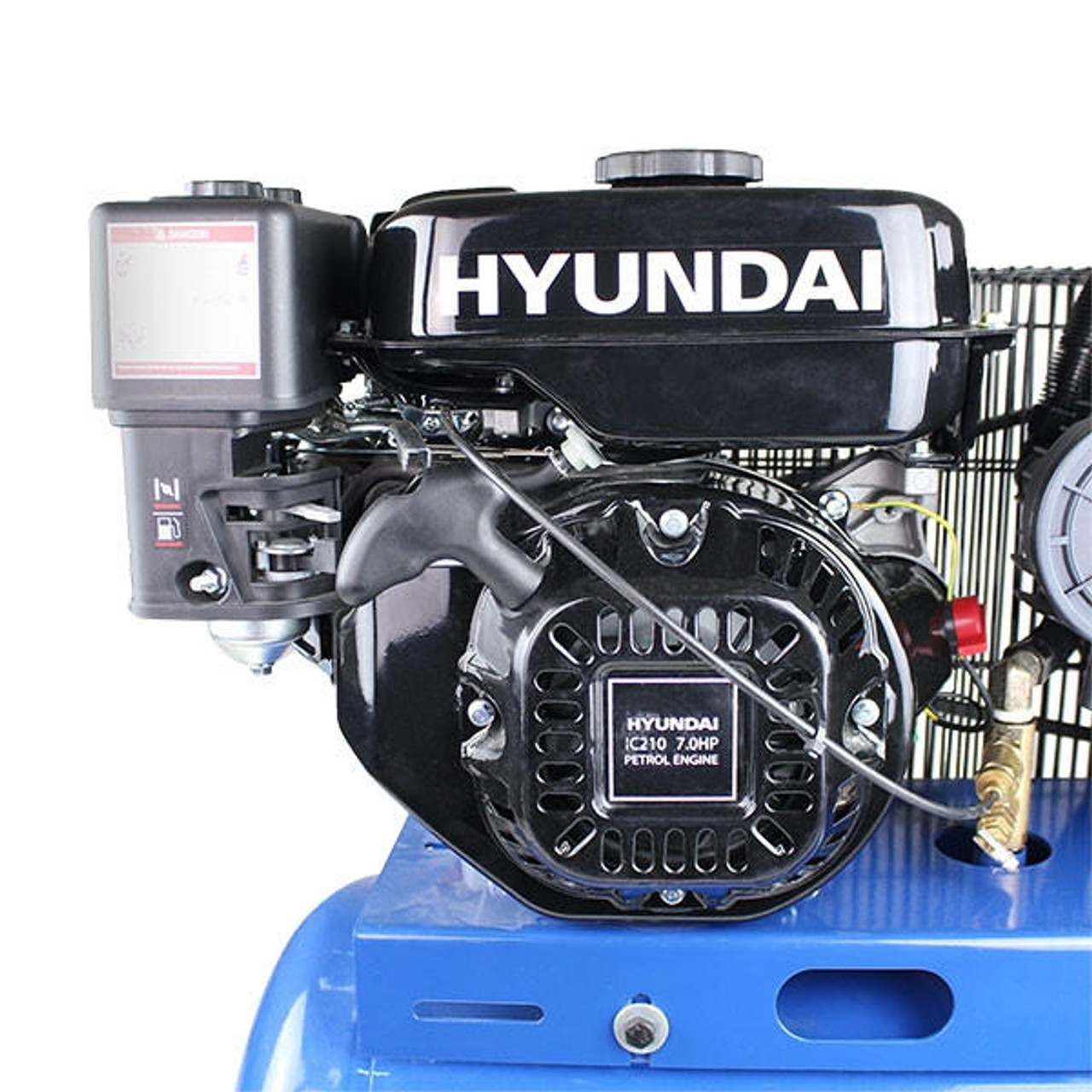

Powered by a 7hp petrol engine.
Equipped with a large 90L tank.
Products a maximum output of 10.7CFM.
A lightweight and portable machine with built-in wheels and handle.

  • A powerful petrol driven air compressor for enthusiast and professional use.
  • Powered by a 7hp petrol engine.
  • Equipped with a large 90L tank.
  • Products a maximum output of 10.7CFM.
  • A lightweight and portable machine with built-in wheels and handle.

£849.99

Out of stock

Notify me when this is avaliable

EAN: 700621496083 SKU: HY70100P Category:

Specification

Model HY70100P
Start Method Recoil
Fuel/Power Source Petrol
Drive Type Belt Drive
Stationary / Wheeled Wheeled
Tank Capacity (L) 90
Tank Material Rolled Steel
Duty Cycle 70%-80%
Cut-In Pressure (psi/bar) 116/8
Cut-Out Pressure (psi/bar) 145/10
Discharge Pressure (psi/bar) 145/10
Max Pressure (psi/bar) 145/10
Air Flow FAD (L/min) 300
Air Flow FAD (CFM) 11
Air Displacement (L/min) 428
Air Displacement (CFM) 15.1
Air Outlet Connection 1/2″ BSP/Euro Quick Release
Outlet Pressure Regulation Type Fixed
Phase

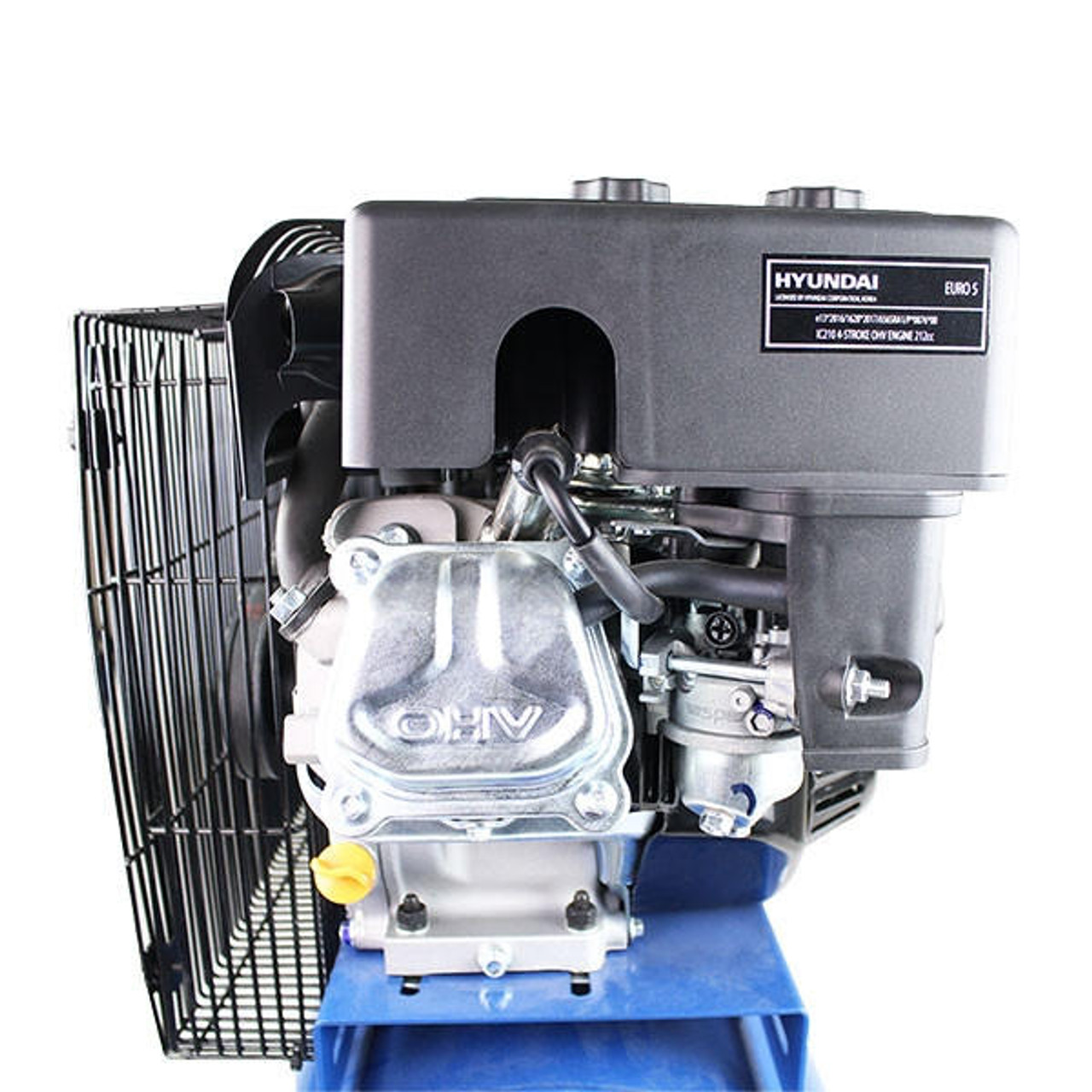

Engine Size (cc) 212
Engine Model IC210
Engine Type Single Cylinder
Fuel Capacity (L) 3.6
Engine Oil SAE 15W40
Engine Oil Capacity (ml) 600
Rated Power (kW) 4.4 kW @ 3600 RPM
Motor Power kW/hp 5.25/7
Pump (RPM) 950
Speed (RPM) 1800 (Idle)
Frequency (Hz)
Noise Level @ 7m (dB) 97
Gross Weight (kg) 85.8
Net Weight (kg) 79.5
Fully Assembled Dimensions (H x W x L) (mm) 770 x 390 x 1040
Packaged Dimensions (H x W x L) (mm) 860 x 430 x 1080
Product Type Air Compressor
Warranty (years) 2
Commercial Warranty (years) 1
Model EAN 700621496083
In The Box HY70100P,User Manual,2 Rubber Feet,2 Air Cleaner, Spark plug wrench for gasoline engine
