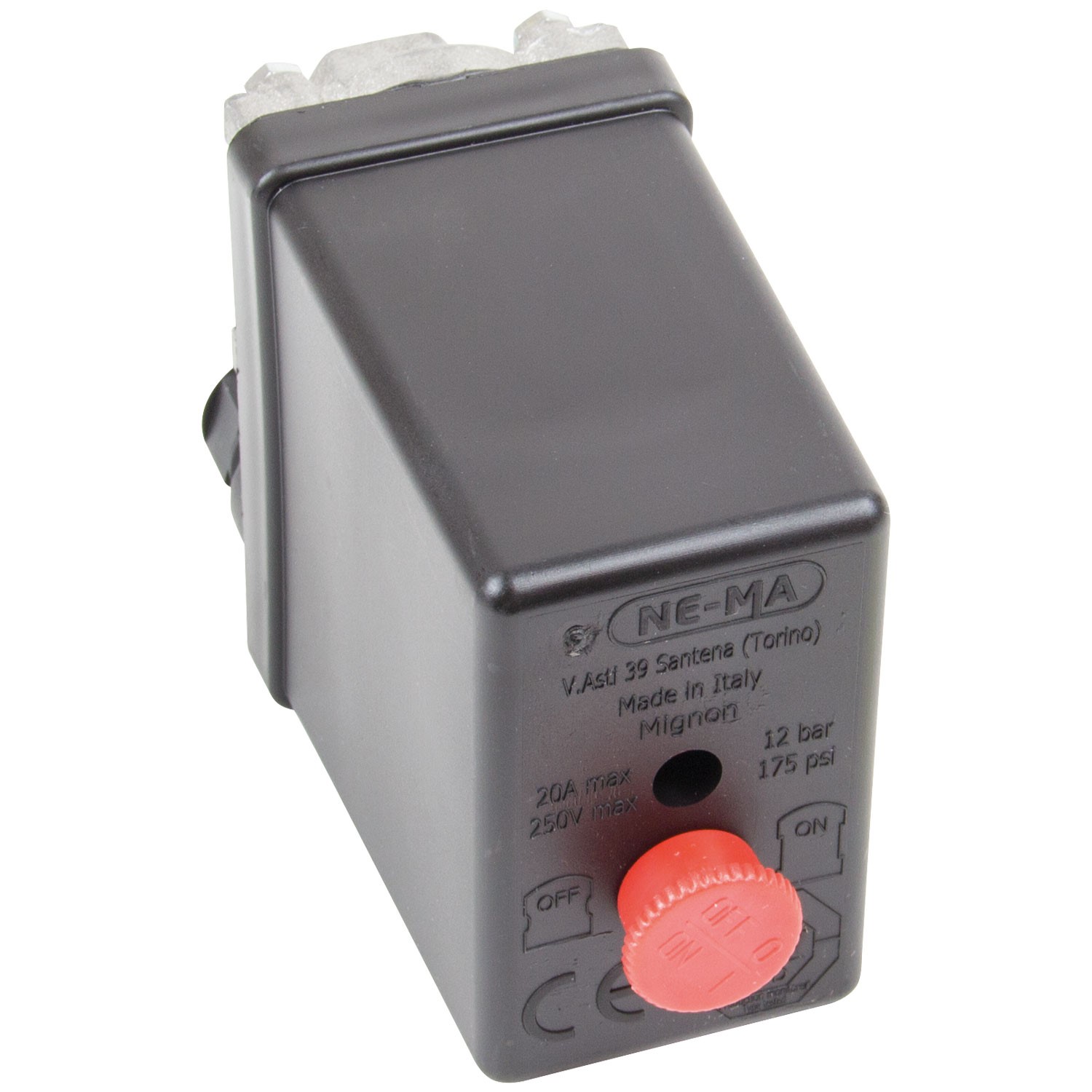

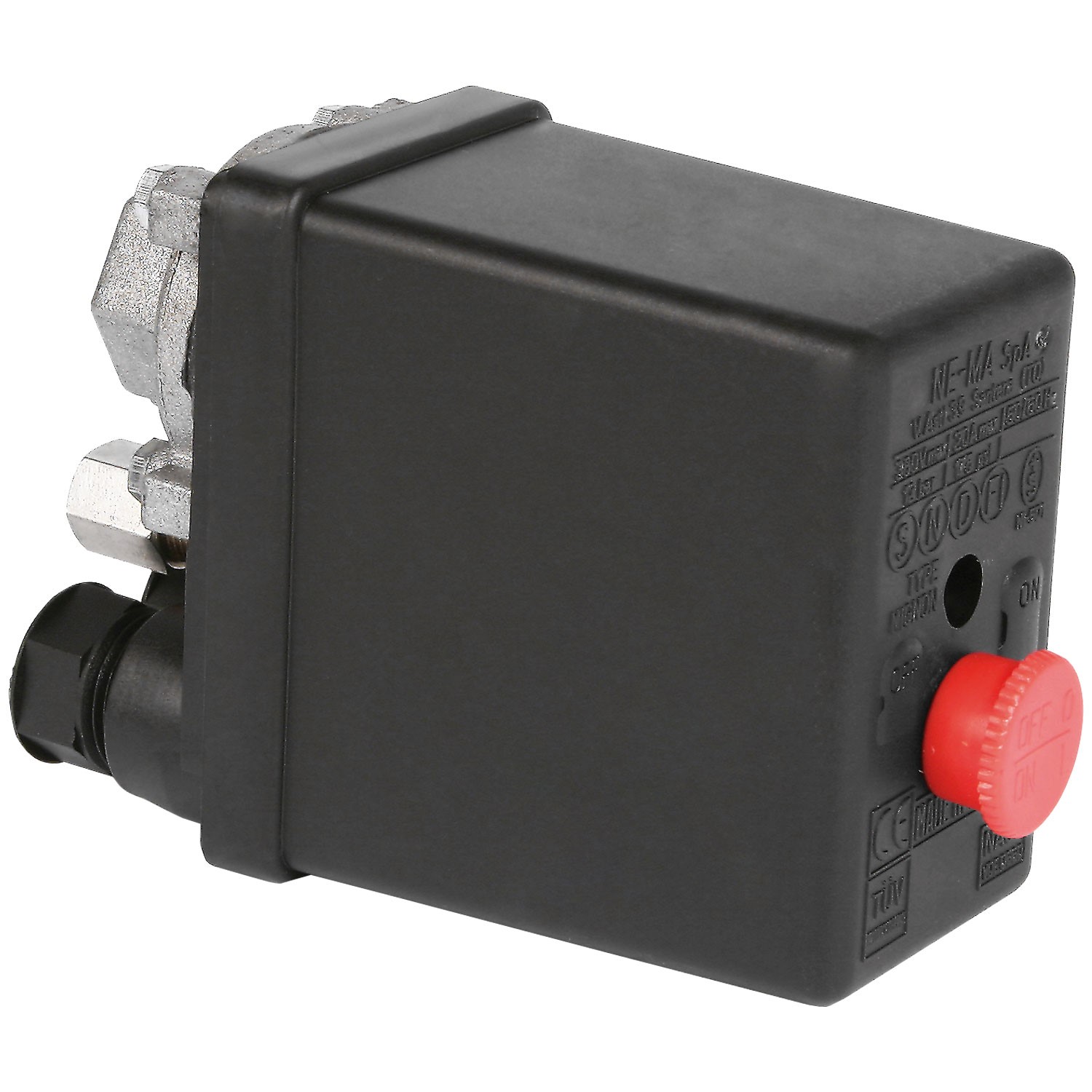

SIP 1/4 Inch 1-Way Pressure Switch


The SIP 1/4″ 1-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and offers dependable and long-lasting use.

  • 1/4″ 1-way pressure switch that is easy-to-install
  • Easily adjustable cut-off pressure via built-in switch
  • Designed to start and stop electric compressor motors
  • Manufactured for long-lasting and reliable use

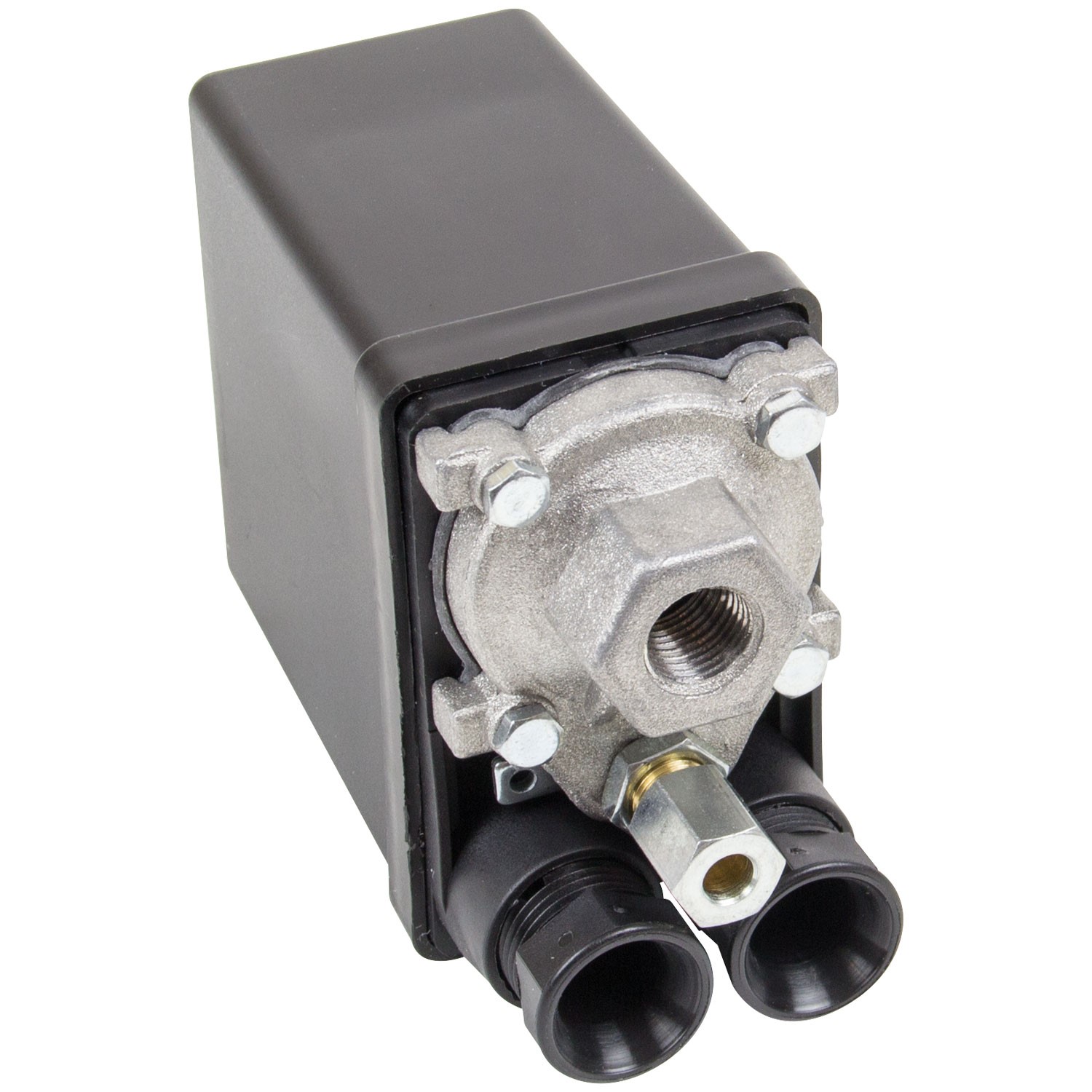

  • Integrated bleed facility with 6mm pipe entry


In stock

EAN: 5012713023141 SKU: 02314 Category:


ITEM NO. 02314
Switch Type: Mignon
Voltage / Current: 230v / 16A
Overload: N/A
Inlet Connection Size: 1/4″ BSP
Inlet Connection Type Bottom Entry
Side Port Size: None
Switch Type: Pull
Phase Type: 1-phase
No. of Poles: 2 poles
Product Weight: 0.95 kg
