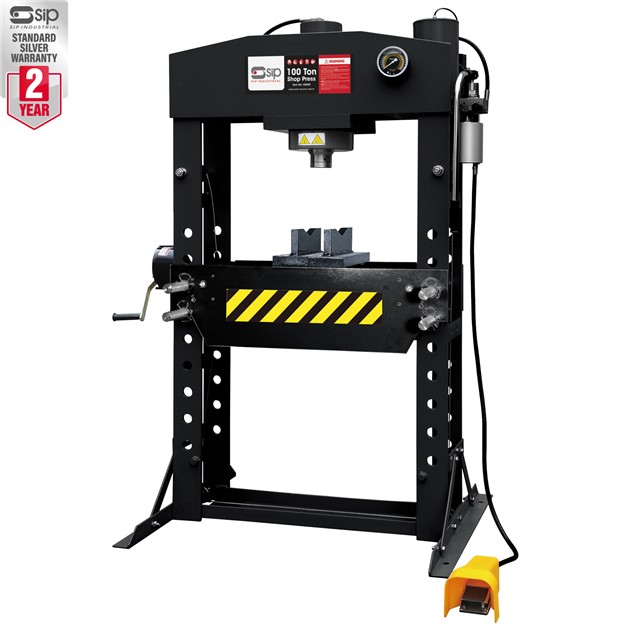

SIP 100 TON Shop Floor Press


The SIP 100 TON Shop Floor Press is perfect for garage and workshop applications, such as bending, straightening, riveting or bonding, forming and assembling. It is particularly suited for easy removal and installation of bearings, wrist pins, universal joints and pulleys.

A heavy-duty steel frame with pneumatically-assisted press provides exceptional durability and long service life, while a fully adjustable workbed offers increased versatility.

  • 93mm to 993mm work range and a 300mm ram stroke
  • Ideal for bending, bonding, straightening applications
  • Bearing, wrist pin, universal joint or pulley removal
  • Fully adjustable workbed for improved versatility
  • Heavy-duty steel frame for increased durability
  • Integrated Glycerine-filled manometer
  • SIP 2-YEAR


In stock

EAN: 5012713036868 SKU: 03686 Category:


ITEM NO. 03686
Press Capacity: 100 TON
Press Type: FLOOR
Press Operation: Pneumatic
Working Range: 93mm – 993mm
Max. Air Pressure: 108psi (7.5bar) – 123psi (8.5bar)
Air Inlet: 1/4″ NPT
Ram Stroke: 300mm
Bed Width: 787mm
Product Dimensions (HxWxD): 1850 x 1000 x 1250mm
Product Weight: 662.00 kg
