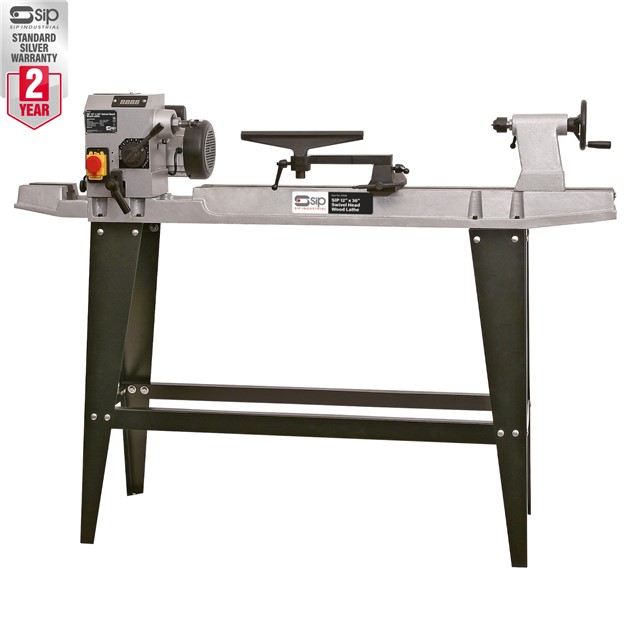

SIP 12 Inch x 36 Inch Swivel Head Wood Lathe


The SIP 12″ x 36″ Swivel Head Wood Lathe is an ideal solution for those seeking a robust, adaptable lathe to accurately shape, turn, drill and sand pieces to the desired specification.

For added functionality, the headstock swivel 360° with four locking positiong to allow outboard turning of larger wood materials. The lathe bed, headstock (MT1) and tailstock (MT2) are manufactured from heavy-duty cast iron and mounted on pressed steel legs with cross braces. A hollow tailstock is also fitted for long hole boring.

Supplied with tool rest holder, 6″ faceplate, drive and tailstock centres, 2x tool rests and bowl turning rest holder.

  • 3/4″ x 16TPI spindle thread size
  • 300mm max. turning diameter (900mm between centres)
  • Pressed steel legs with cross braces
  • Heavy-duty cast iron lathe bed
  • Digital speedometer display up to 2000rpm
  • 10 setting easy-change speed handle
  • SIP 2-YEAR


In stock

EAN: 5012713019380 SKU: 01938 Category:


ITEM NO. 01938
Input Supply: 230v (13A)
Motor Power: 550w (0.75hp)
Speed Range: 500rpm – 2000rpm
Distance Between Centres: 900mm (36″)
Turning Capacity: 310mm (12″)
Spindle Through Hole: 10mm (Drive) / 10mm (Tailstock)
Drive Spur Size: 1 Morse Taper
Tailstock Rotating Centre Size: 2 Morse Taper
Noise Level: 68dB(A)
Product Dimensions (HxWxD): 1120 x 1510 x 475mm
Product Weight: 77.00 kg
