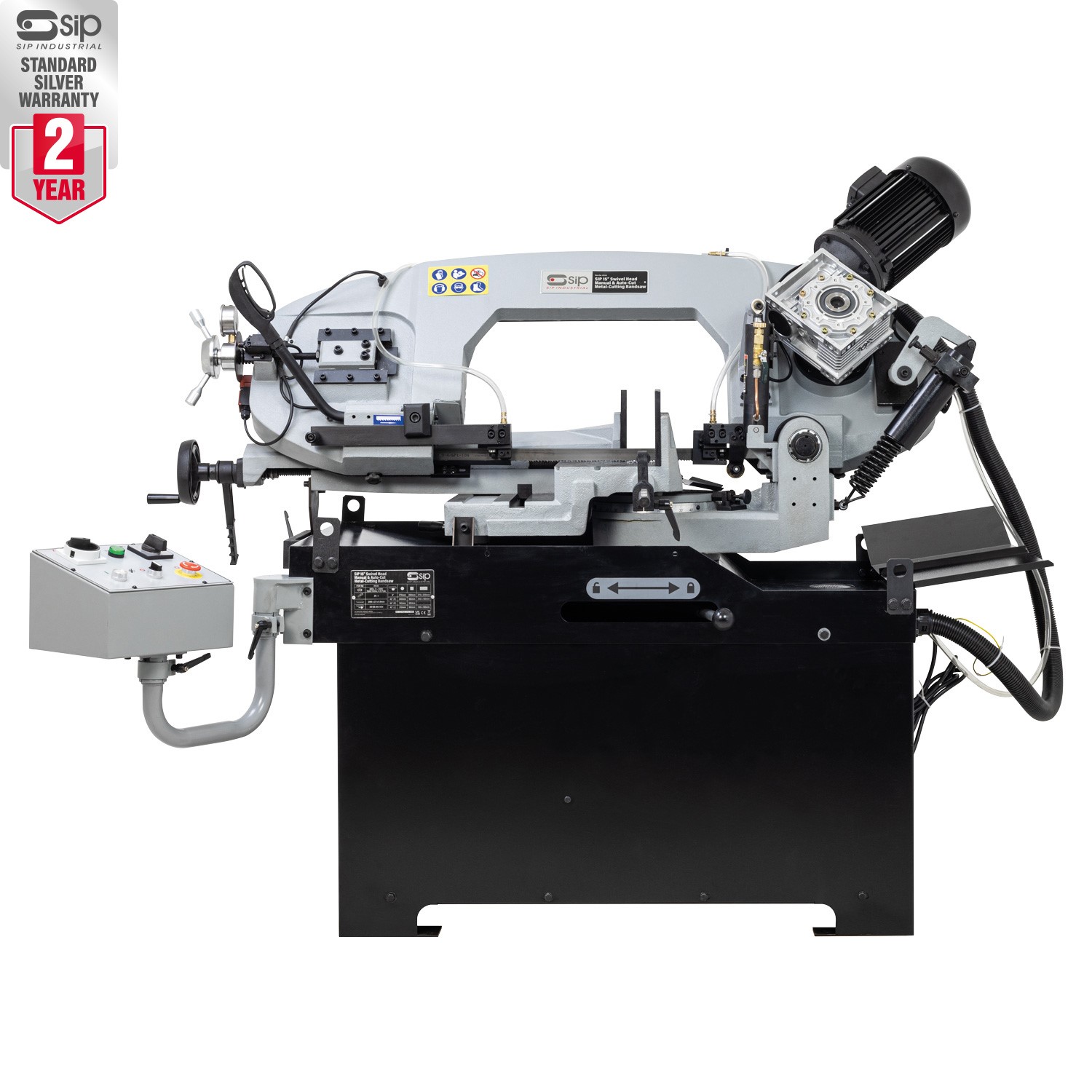

SIP 15 Inch Swivel Head Manual & Auto-Cut Metal Bandsaw

Description

The SIP 15″ Swivel Head Manual & Auto-Cut Metal Bandsaw is a powerful and accurate auto-cutting bandsaw machine ideal for cutting bar, tube and profile workpieces using a range of metal types. This includes mild steel, stainless steel, aluminium, copper, brass and alloys.

SIP Metal-Cutting Bandsaws are highly efficient, easy to use and safely cut metal to a high standard, helping to avoid use of manual cutting operations. They are an essential machine for metal and engineering workshops.

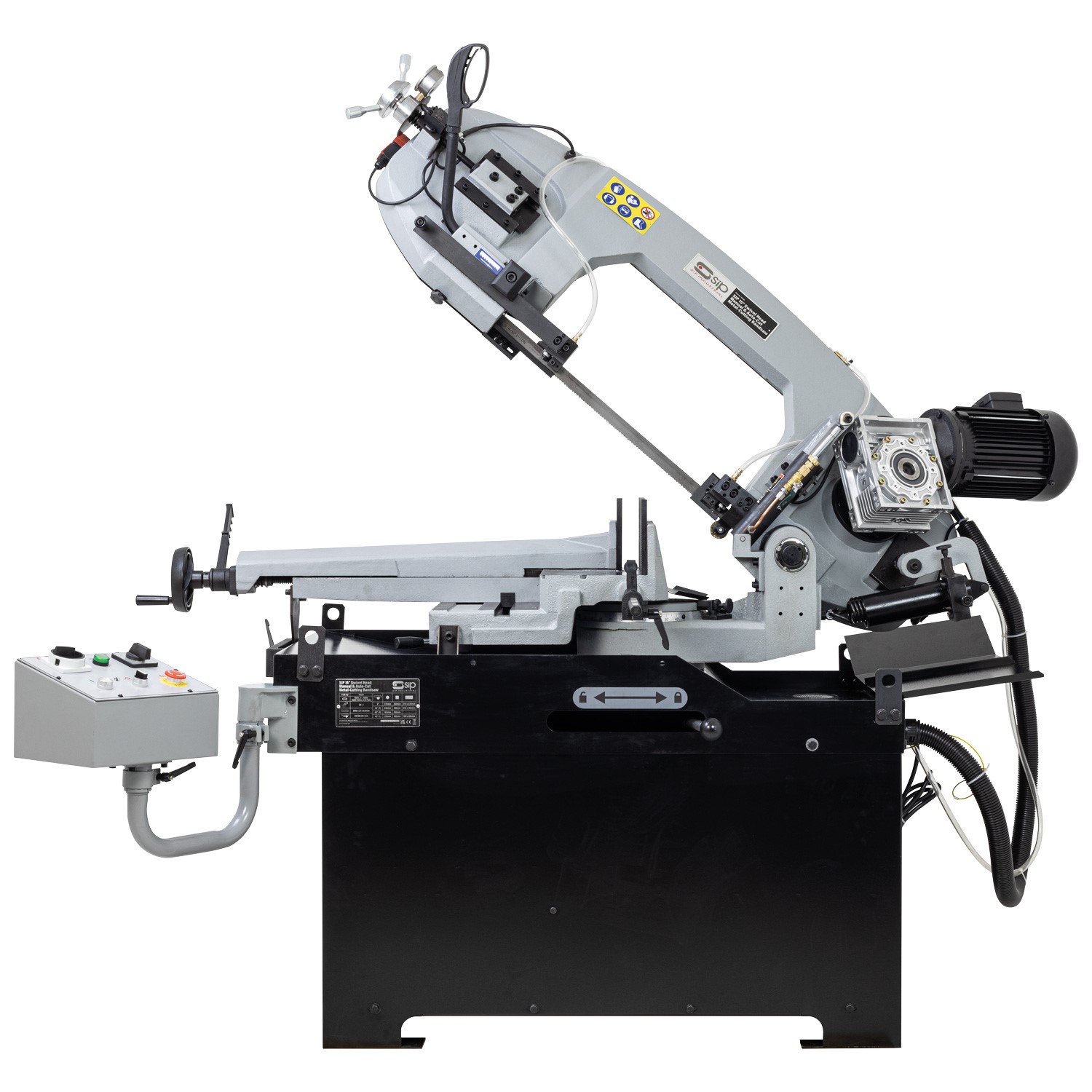

  • Dual swivel head function
  • Two-speed motor (1.1kW – 1.5kW)
  • Direct drive motor gearbox transmission
  • Semi-automatic and manual cut-down functions
  • Heavy-duty cast iron swivel bow head

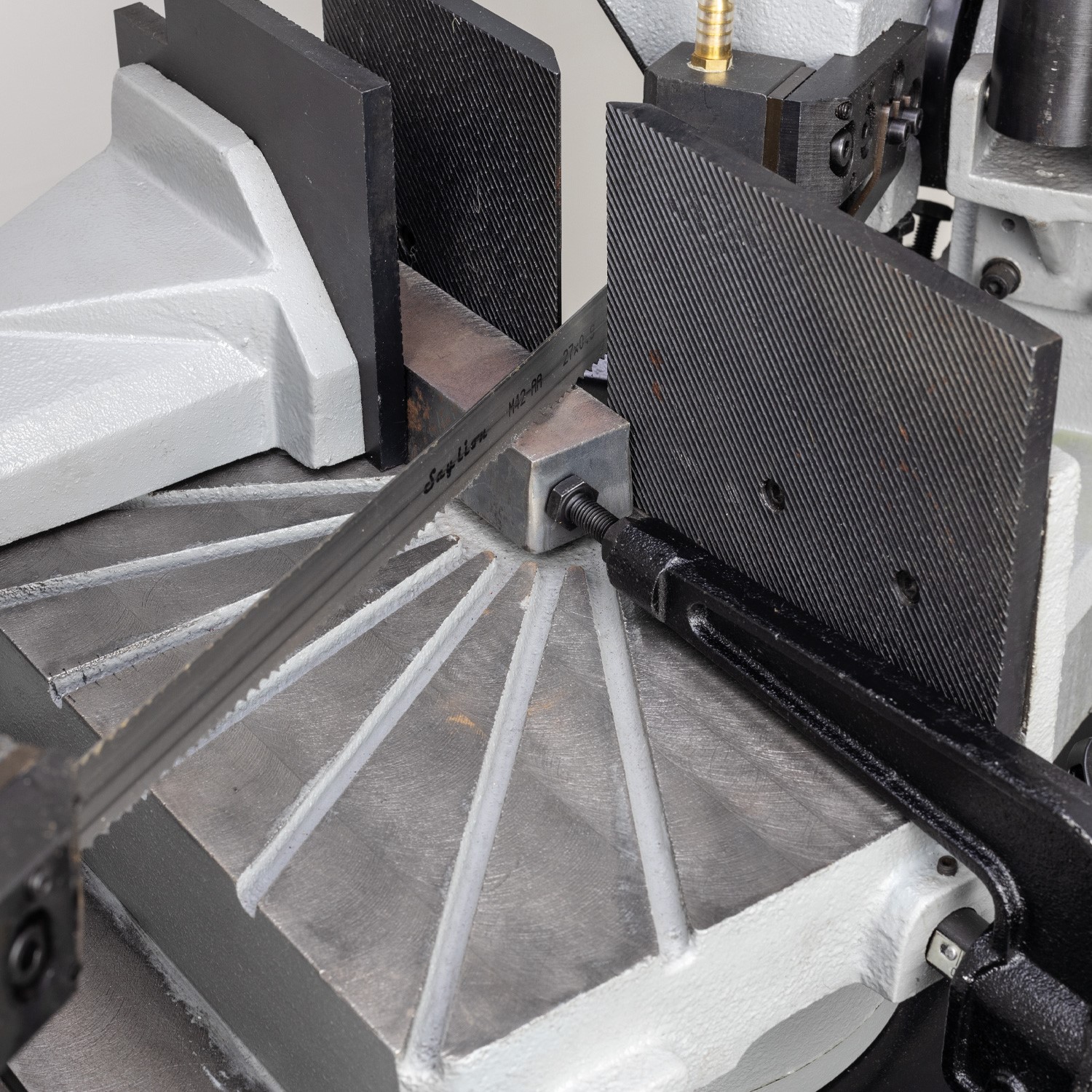

  • Adjustable cast iron vice
  • Enhanced safety features
  • SIP 2-YEAR

£5,493.86

In stock

EAN: 5012713015306 SKU: 01530 Category:

Specification

ITEM NO. 01530
Input Supply: 400v 3-PHASE
Motor Power: 1.5kW (2hp)
Transmission: 2-Speed Direct Drive Gearbox
Blade Speed Range: 34mtr/min / 68mtr/min
Blade Size: 3160mm x 27mm x 0.9mm

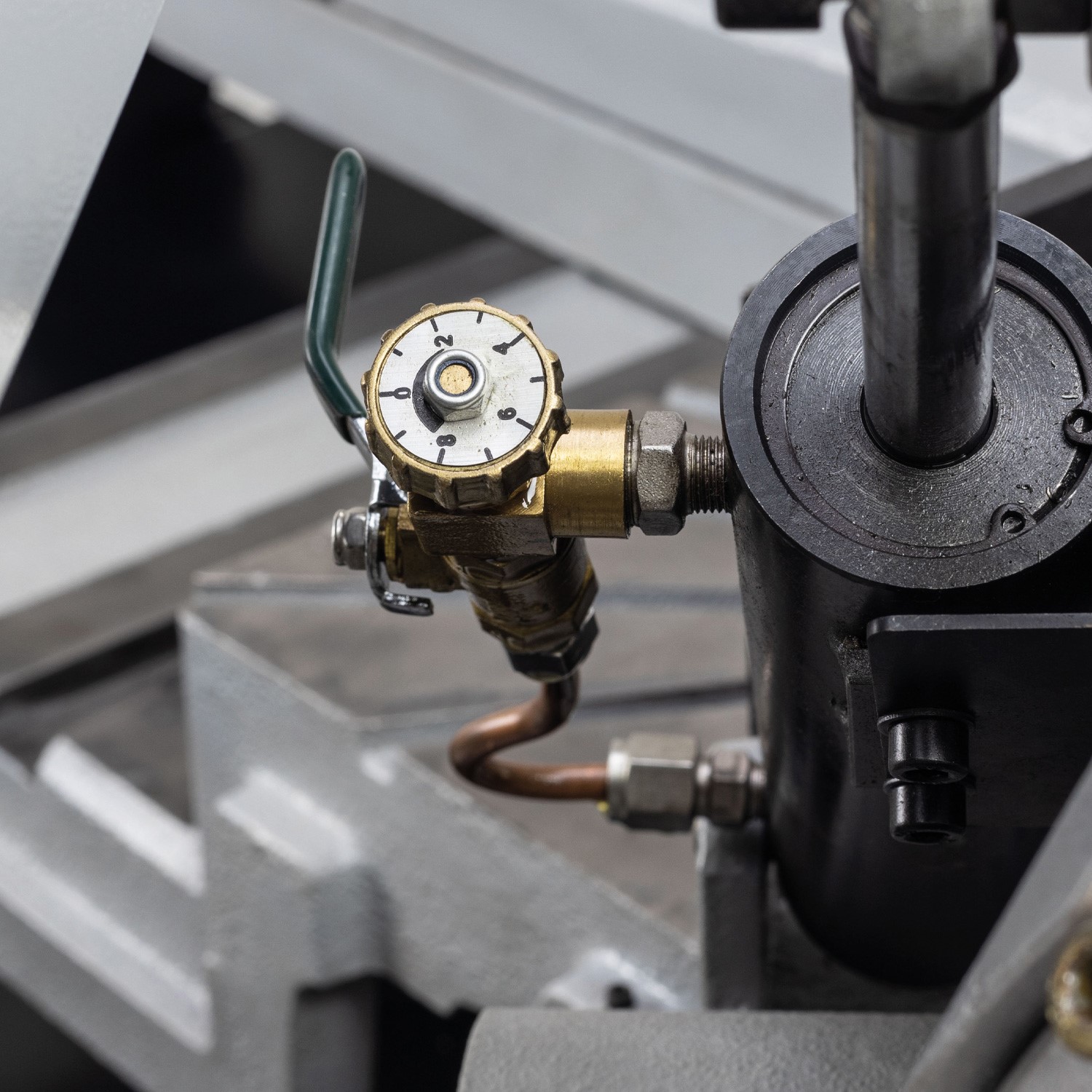

Coolant System: Yes
Angle Range: 45°, 30°, 15° (left), 0°, 15°, 30°, 45°, 60° (right)
Cutting Capacity @ 0°: 270mm (circle) / 260mm (square) / 220mm x 370mm (rectangle)
Cutting Capacity @ 45°: 240mm (circle) / 180mm (square) / 160mm x 240mm (rectangle)
Cutting Capacity @ 60°: 160mm (circle) / 100mm (square) / N/A (rectangle)
Cutting Capacity @ 45° (L): 210mm (circle) / 180mm (square) / 150mm x 180mm (rectangle)
Product Dimensions (HxWxD): 1535 x 800 x 1580mm
Product Weight: 365.00 kg
