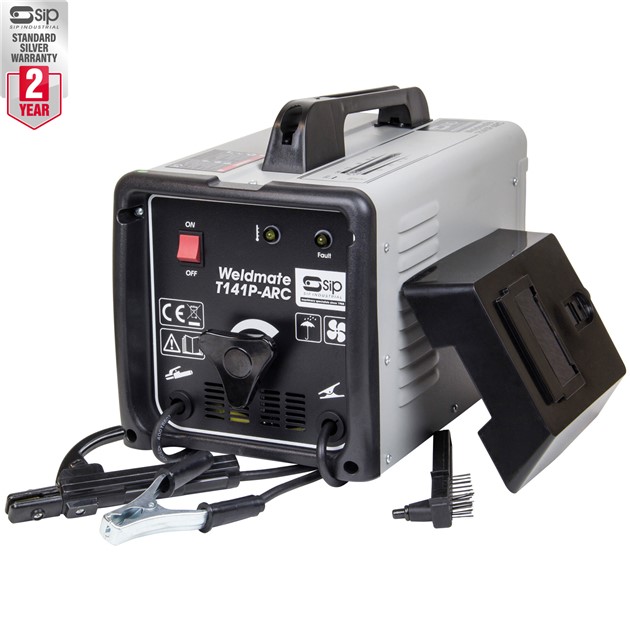

SIP T141P-ARC Transformer Welder


The SIP T141P-ARC Transformer Welder offers powerful performance via a selection of technologies that also provide superb versatility, including infinitely variable stepless output, double shunt power regulation, and electrode-to-material thickness gauge.

  • 40A to 115A output current; 115A @ 10% duty cycle
  • Integrated electrode-to-material thickness gauge
  • Turbo fan cooling for extended running times
  • Infinitely variable stepless power output
  • Integrated double shunt power regulation
  • SIP 2-YEAR


In stock

EAN: 5012713057412 SKU: 05741 Category:


ITEM NO. 05741
Input Supply: 230v (13A)
Output Current: 40A – 140A
Output Voltage: 19.6v – 22.6v
Duty Cycle: 115A @ 10%
Electrode Diameter: Ø 1.6mm – 3.2mm
Welding Thickness: 1.5mm – 5mm
Open Circuit Voltage: 48v
Power Factor: 0.60
Efficiency Level: 42%
Protection Level: IP21S
Insulation Class: Class F
Product Weight: 14.73 kg
