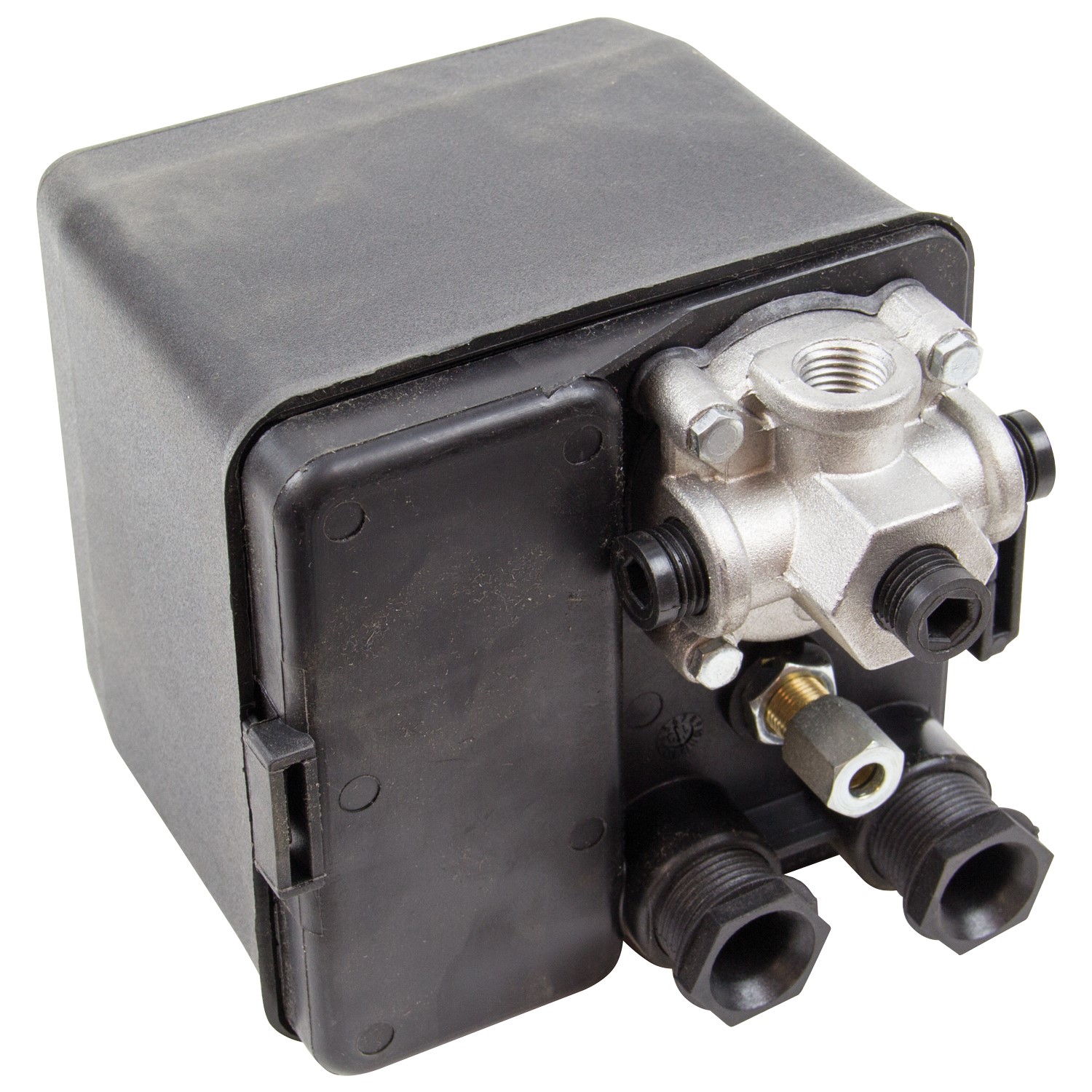

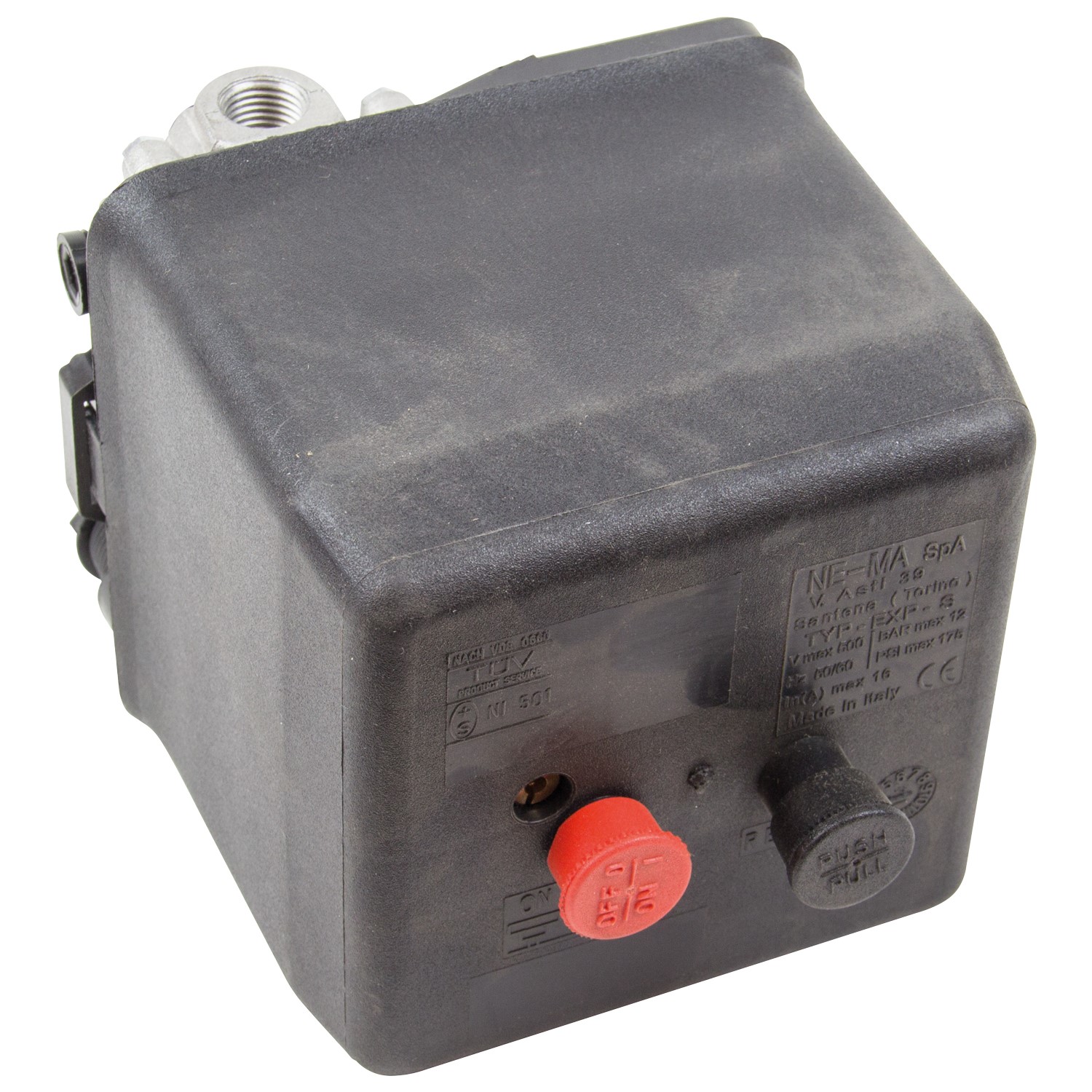

SIP TELE10 4-Way Pressure Switch

Description

The SIP TELE10 9A – 14A 4-Way Pressure Switch is an important component for any compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and features an integrated motor starter.

  • TELE10 4-way pressure switch with integrated motor starter
  • Easily adjustable cut-off pressure via built-in switch
  • Designed to start and stop electric compressor motors
  • Manufactured for long-lasting and reliable use
  • Integrated bleed facility with 6mm pipe entry

£101.12

Out of stock

Notify me when this is avaliable

EAN: 5012713065684 SKU: 06568 Category:

Specification

ITEM NO. 06568
Switch Type: TELE10 4-Way
Voltage / Current: 400v / 20A
Overload: 9A – 14A
Inlet Connection Size: 1/4″ BSP
Inlet Connection Type Bottom Entry
Side Port Size: 3x 1/4″ BSP
Switch Type: Pull
Phase Type: 3-phase
No. of Poles: 3 poles
Product Dimensions (HxWxD): 125 x 115 x 130mm
Product Weight: 1.00 kg
