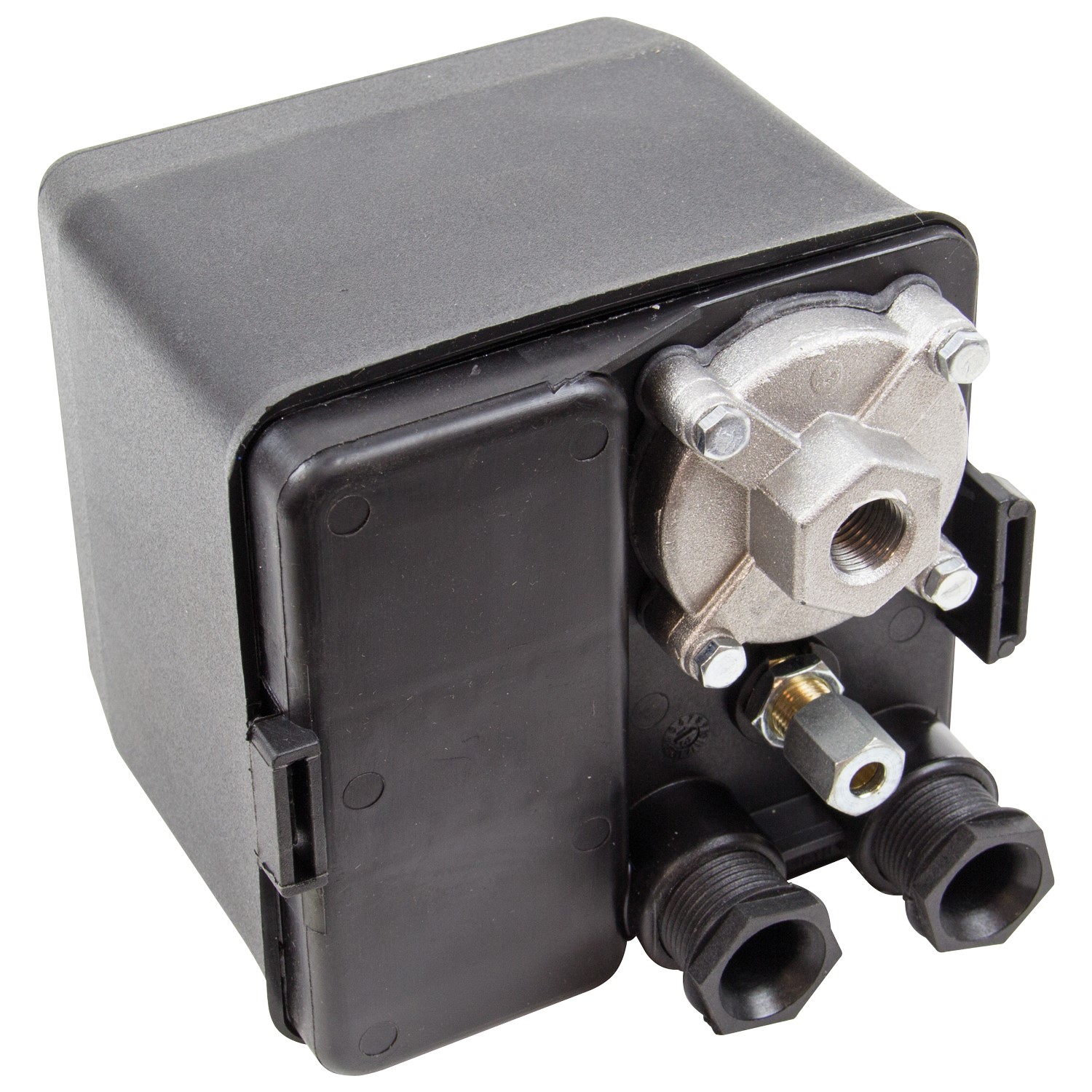

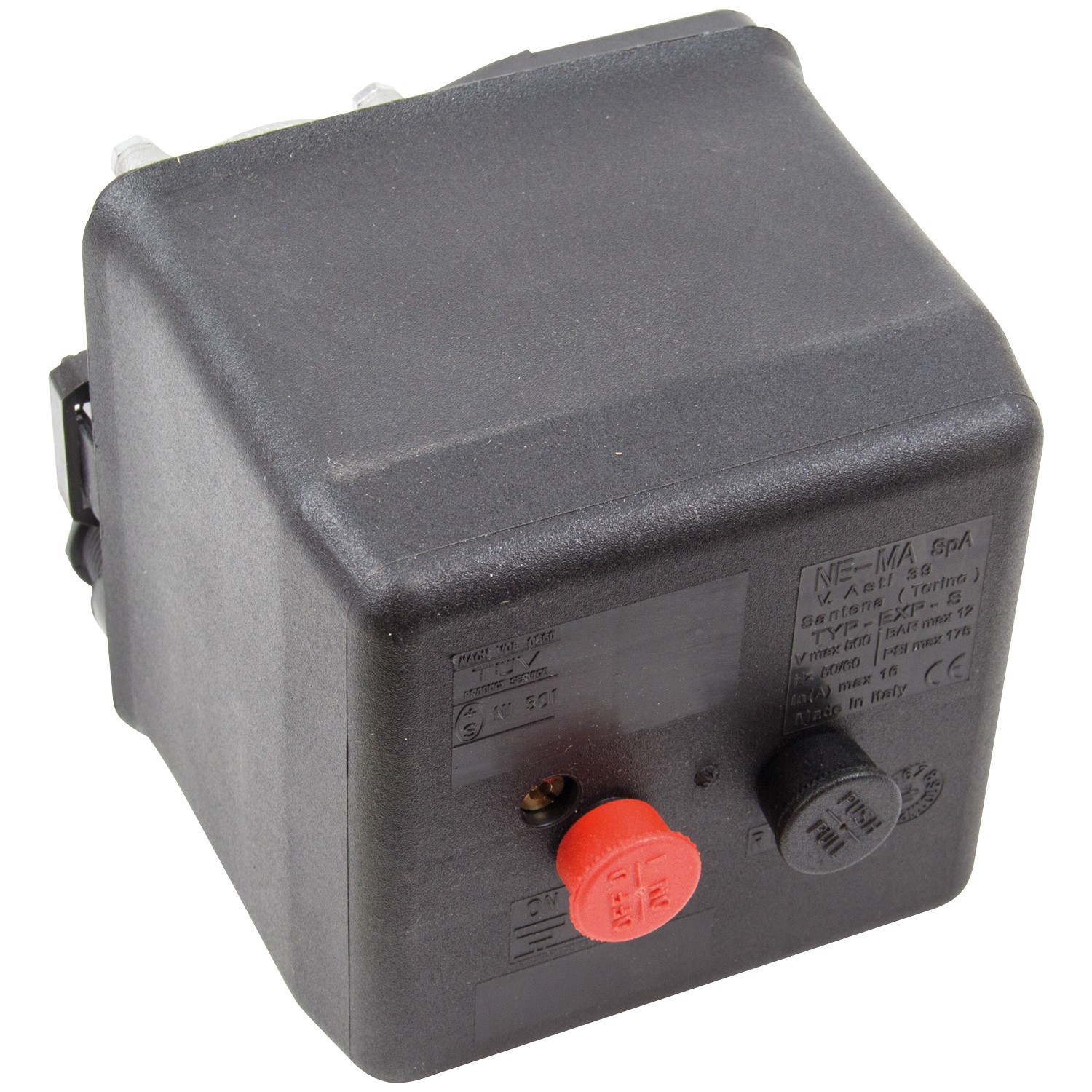

SIP TELE10 9A – 14A Pressure Switch


The SIP TELE10 9A – 14A Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached.

This pressure switch is easy-to-install and features an integrated motor starter.

  • TELE10 pressure switch with integrated motor starter
  • Easily adjustable cut-off pressure via built-in switch
  • Designed to start and stop electric compressor motors
  • Manufactured for long-lasting and reliable use
  • Integrated bleed facility with 6mm pipe entry


In stock

EAN: 5012713023448 SKU: 02344 Category:


ITEM NO. 02344
Switch Type: TELE10
Voltage / Current: 400v / 20A
Overload: 9A – 14A
Inlet Connection Size: 1/4″ BSP
Inlet Connection Type Bottom Entry
Side Port Size: None
Switch Type: Pull
Phase Type: 3-phase
No. of Poles: 3 poles
Product Weight: 1.00 kg
