Hyundai DHY45KSE 35kW/45kVA Three Phase Diesel Generator

Description

The Hyundai DHY45KSE is a three phase diesel generator with a maximum output of 33kW/45kVA. Designed for domestic or professional use, the DHY45KSE is powered by a 35hp 1500rpm diesel engine and is equipped an AVR alternator to produce clean energy. This means that any sensitive electronic equipment, such as televisions, PCs and laptops, can safely be powered by the DHY34KSE.
The DHY45KSE can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system. An ATS system will automatically detect a loss of power from the mains, turn your DHY45KSE on automatically, and then turn it off again when power returns from the mains.

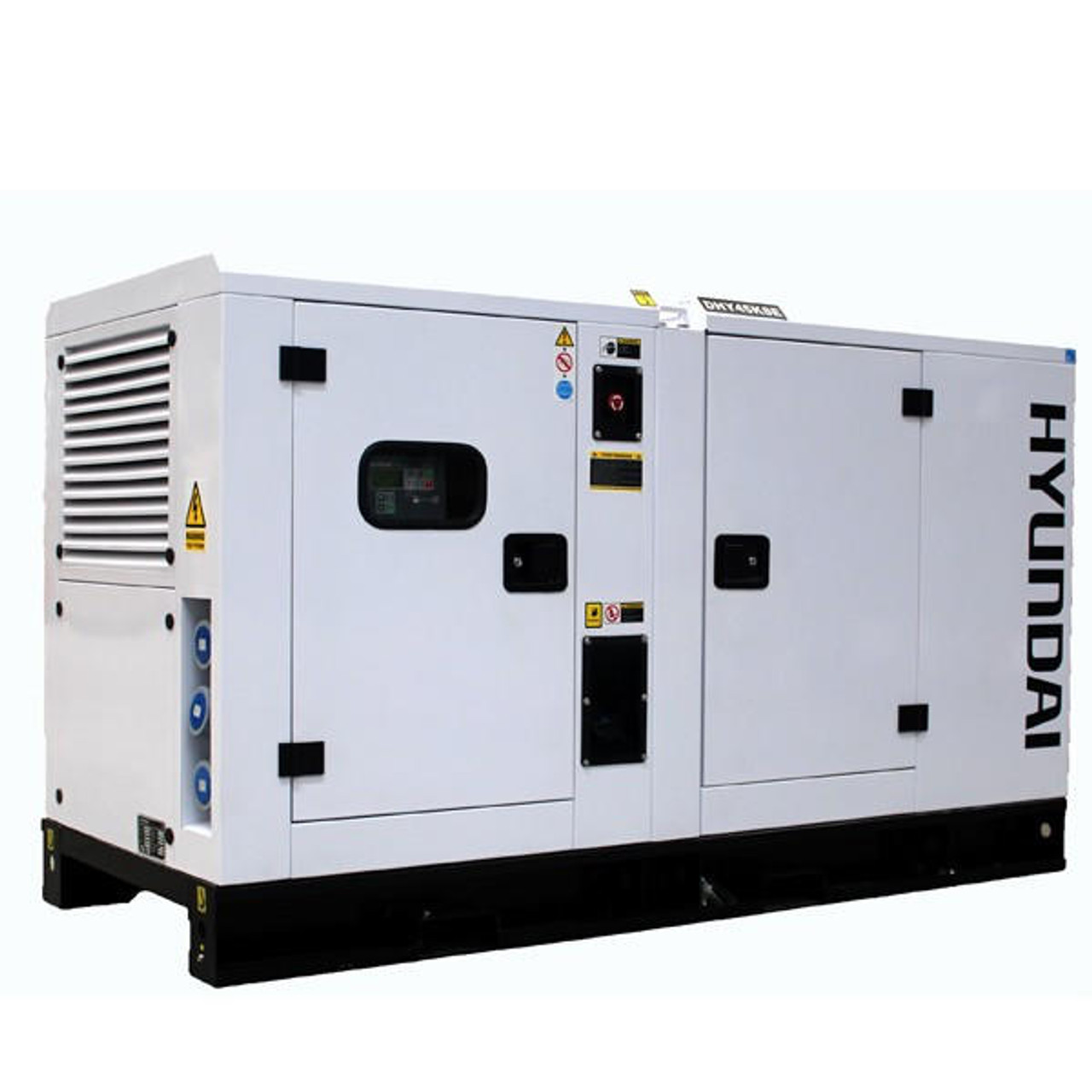

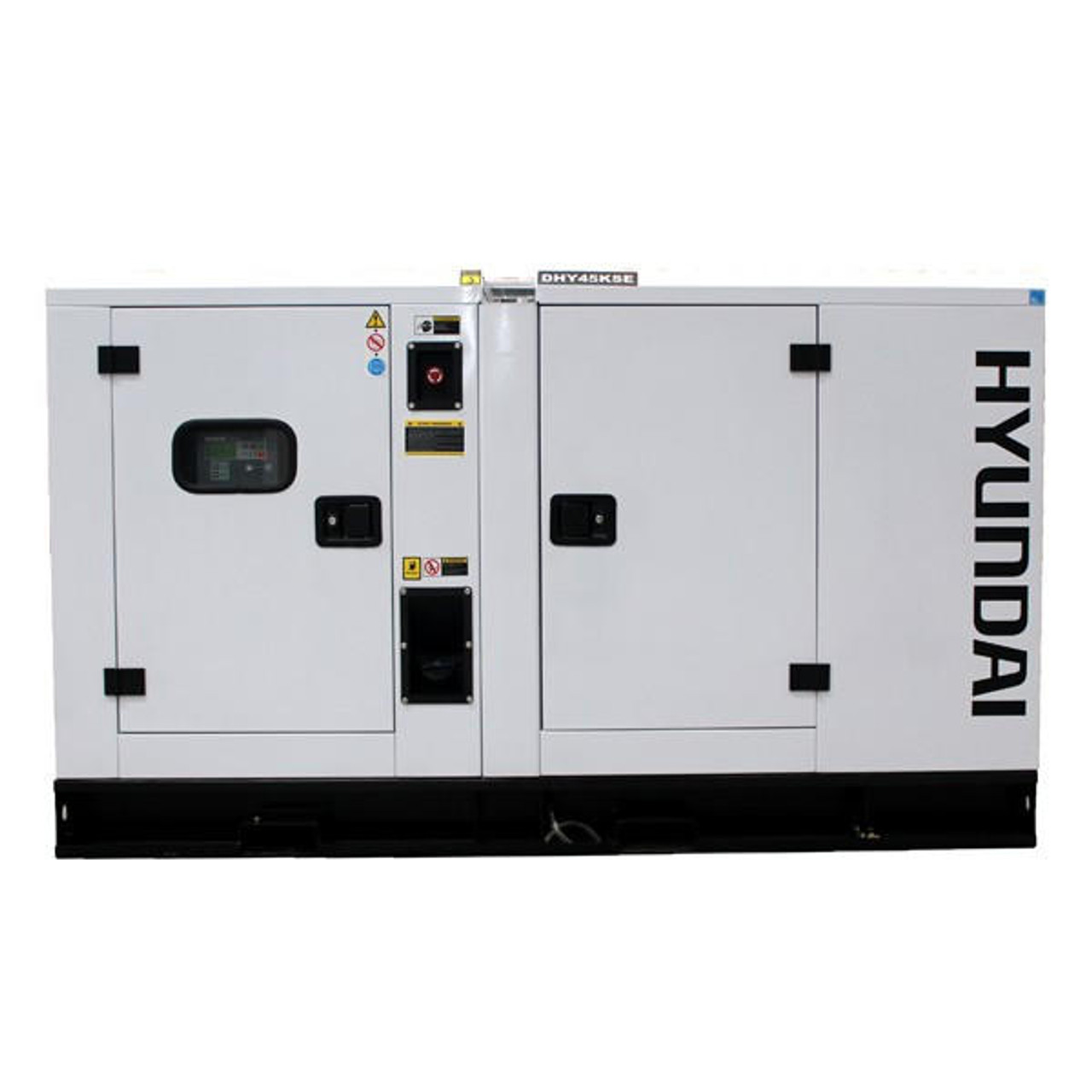

Housed in a weather-proof, silenced canopy, the DHY45KSE produces only 65dB @ 7 metres which makes it a quiet standby generator which won’t interrupt you at home or work.
All Hyundai 1500rpm diesel generator sound proof canopies undergo an anti-corrosion painting process called electrophoretic painting. This process ensures all areas of the canopy have an evenly applied thickness of paint, ensuring maximum corrosion protection.
The DHY45KSE benefits from being an economical diesel generator, capable of running on red diesel which is significantly cheaper than road diesel and is safer to store than petrol.

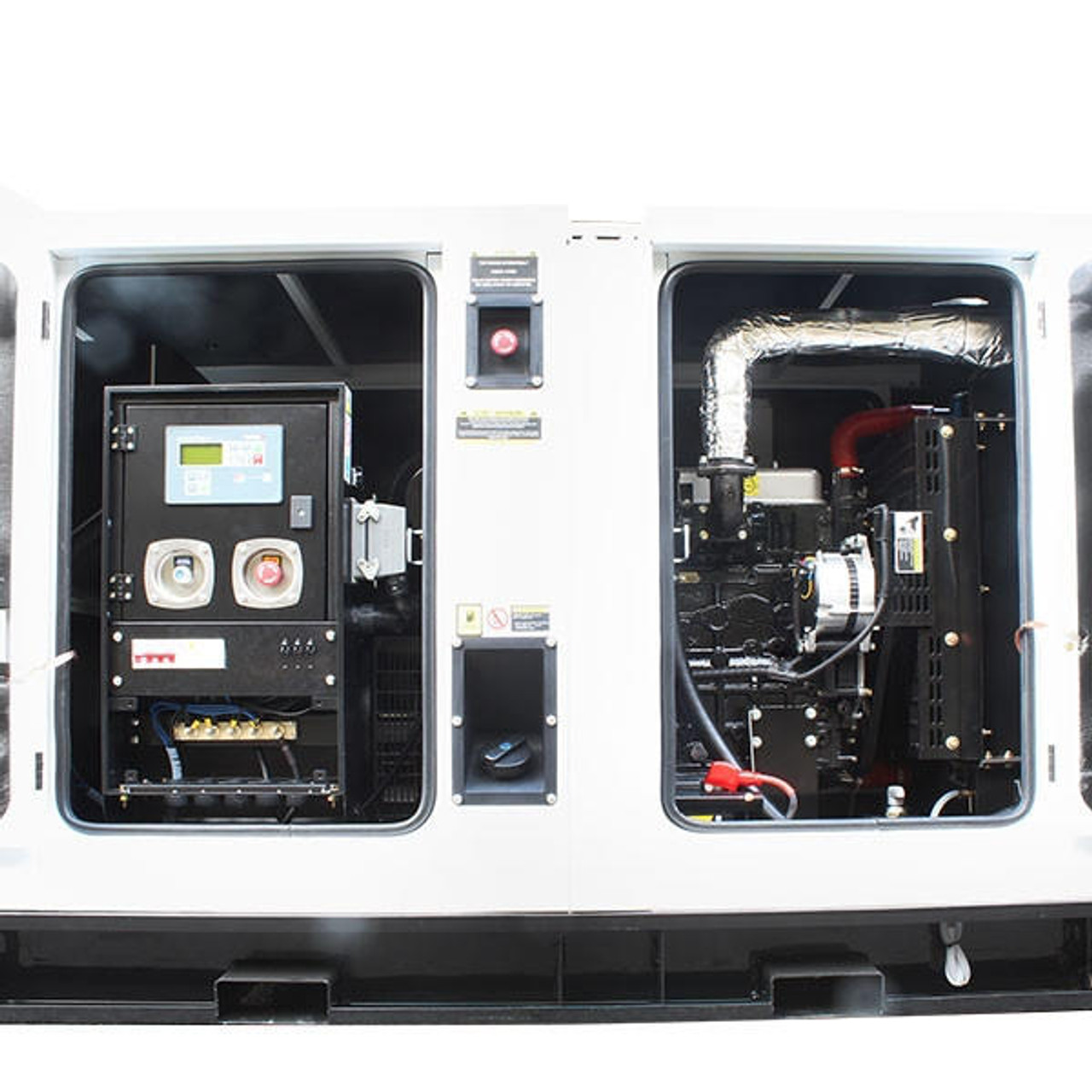

Fitted with an MRS 10 control panel interface as standard, its user friendly interface gives fingertip control over several operating parameters as well as providing information statistics relating to engine, output and generator running parameters.
Running at 1500rpm, the engine is stressed less than in 3000rpm generators and this helps extend the lifespan of the machine if properly serviced.
For the recommended usage of this generator, please see here.
3 Phase 400/230v generators are generally manufactured to power 400 volt 3 Phase equipment. Even though you can run a small amount of 230v on a solo basis from them, this is not their intended purpose and it can be difficult to ‘balance’ the phases and stop the generator from tripping out. In order to run 230v output only, and reach the generator’s output capacity you will need to accurately ‘balance’ the loads on each phase (the amount you are drawing from each phase of electricity). You can read more about phase imbalance, and the pitfalls of running 230v from a 400v generator in our article here. If you are unsure whether this is the right generator for your application, we advise you to speak to a qualified electrician/generator installer or speak to us for advice.
Read our warranty terms here.
Kerbside delivery included – please note – forklift required for unloading
Key Features
A three phase standby diesel generator with a maximum output of 33kW/45kVA.
Powered by a 35hp 1500rpm diesel engine.
Equipped with an AVR alternator for a clean energy output.
Can be connected to an ATS system for an automatic power transfer.
Housed in a silenced weather-proof canopy.

  • A three phase standby diesel generator with a maximum output of 33kW/45kVA.
  • Powered by a 35hp 1500rpm diesel engine.
  • Equipped with an AVR alternator for a clean energy output.
  • Can be connected to an ATS system for an automatic power transfer.
  • Housed in a silenced weather-proof canopy.

£9,214.99

EAN: 700621496298 SKU: DHY45KSE Category:

Specification

Model DHY45KSE
Rated/Prime kVA* 40
Rated/Prime kW 32
Max/Standby kVA* 45
Max/Standby kW 35
Phase Three
Voltage 230 / 400

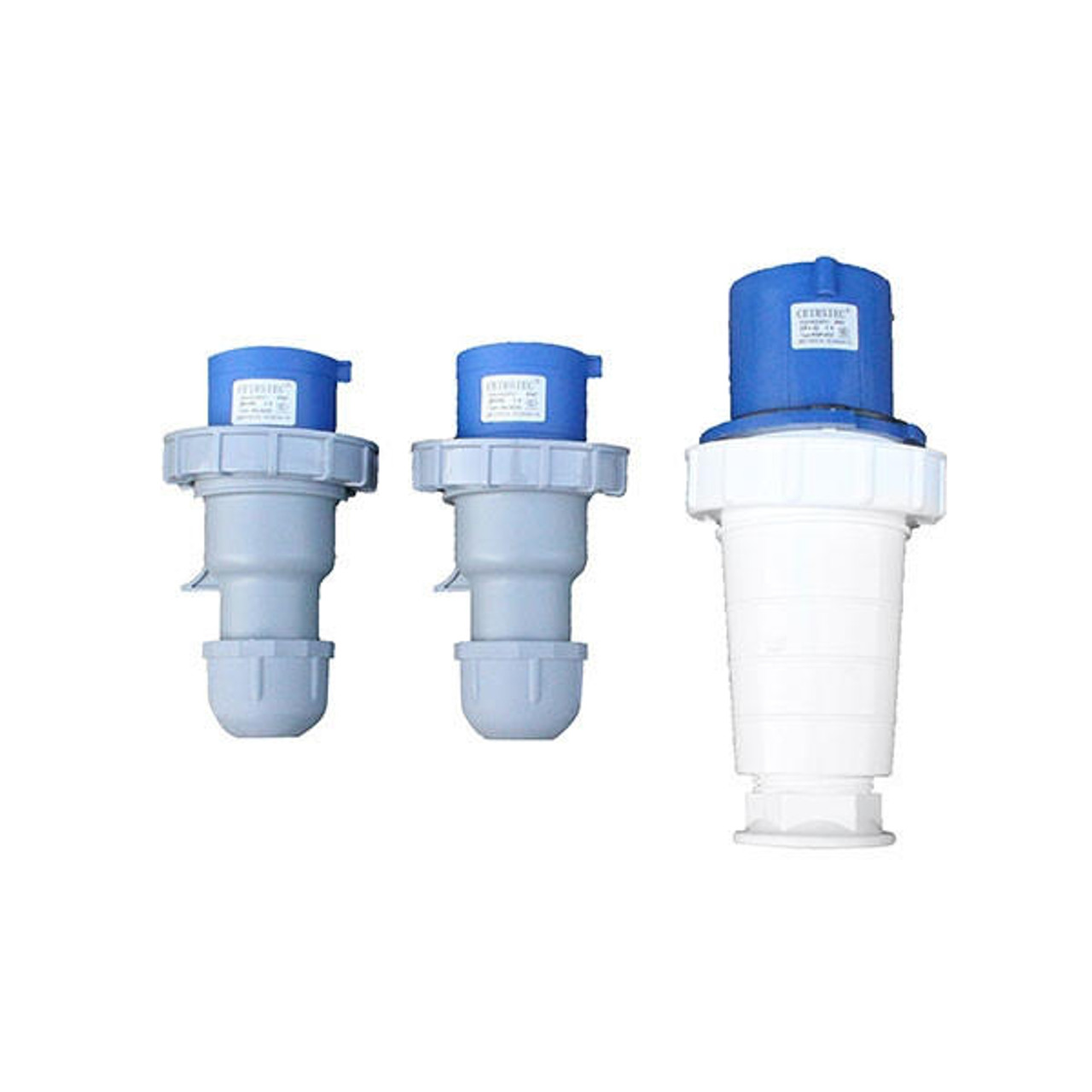

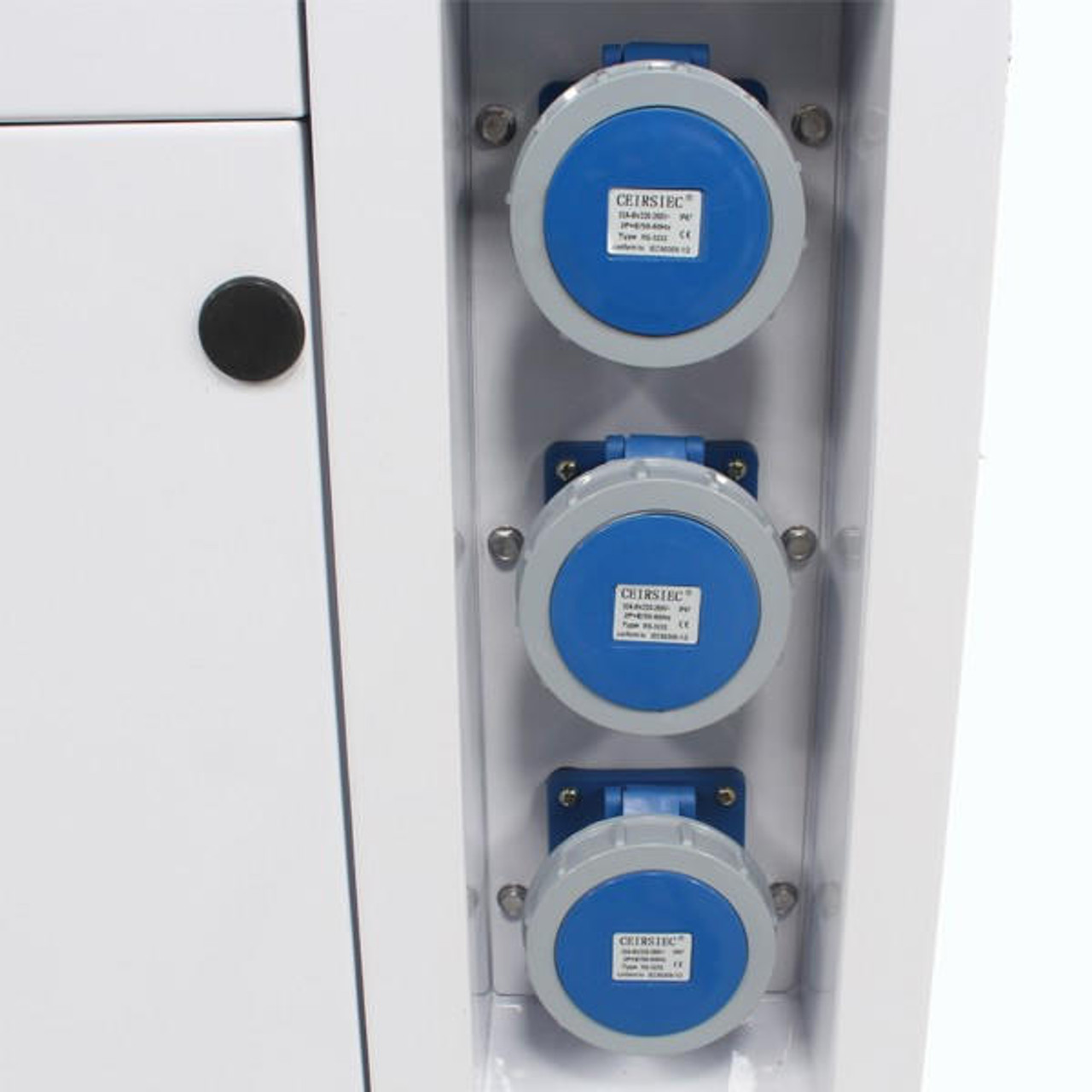

Connection Method(s) 2 x 230V/32A 1 x 230vV/63A Busbar
Rated Speed (RPM) 1500
Frequency (Hz) 50
Max/Continuous Current (Amps) 64 / 57
Power Factor (Cosφ) 0.8
Fuel/Power Source Diesel

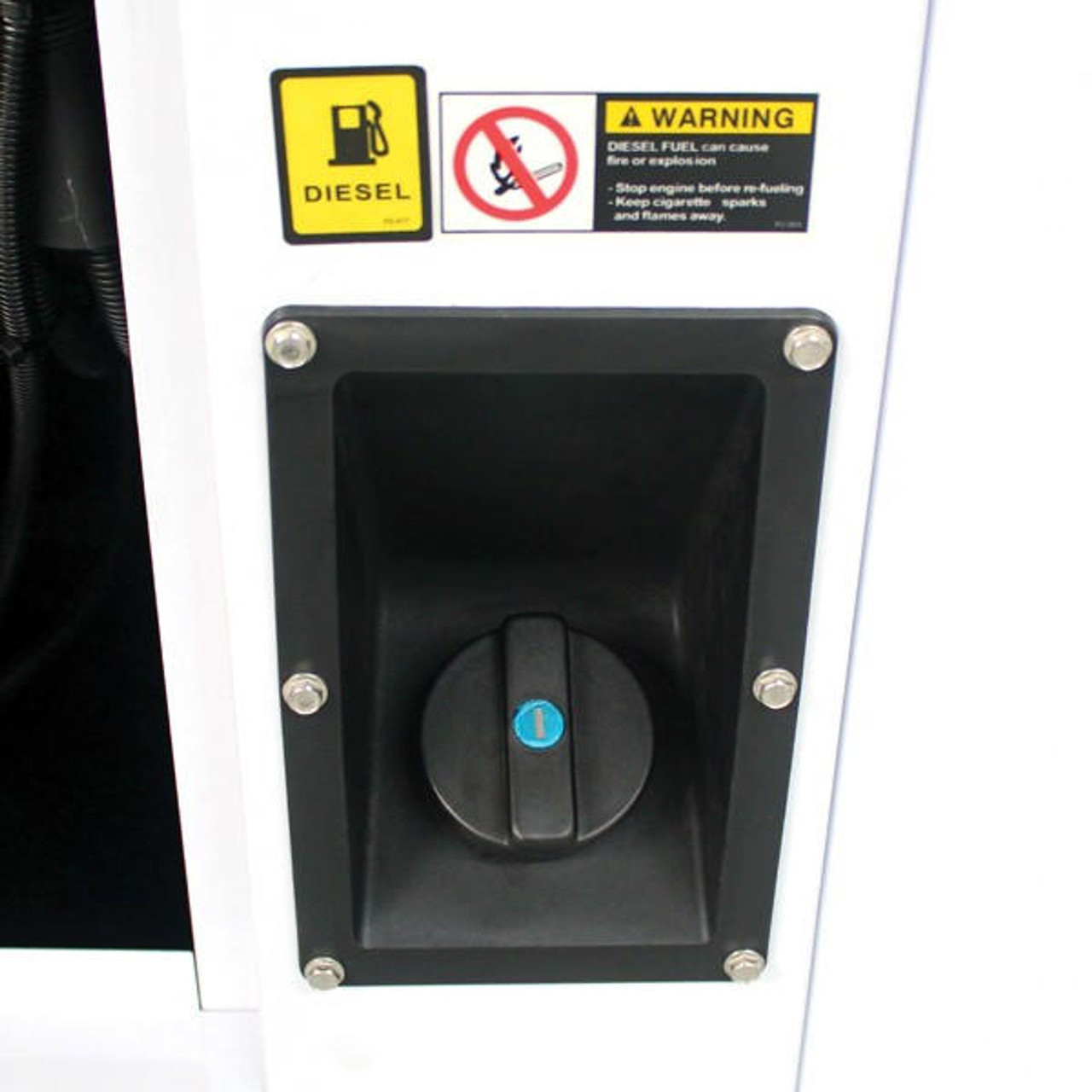

Fuel Tank (Litres) 93
Runtime (Hours) @ 100% Load 9.12
Noise Level @ 1m 75% load (dB) 72
Noise Level @ 7m 75% load (dB)

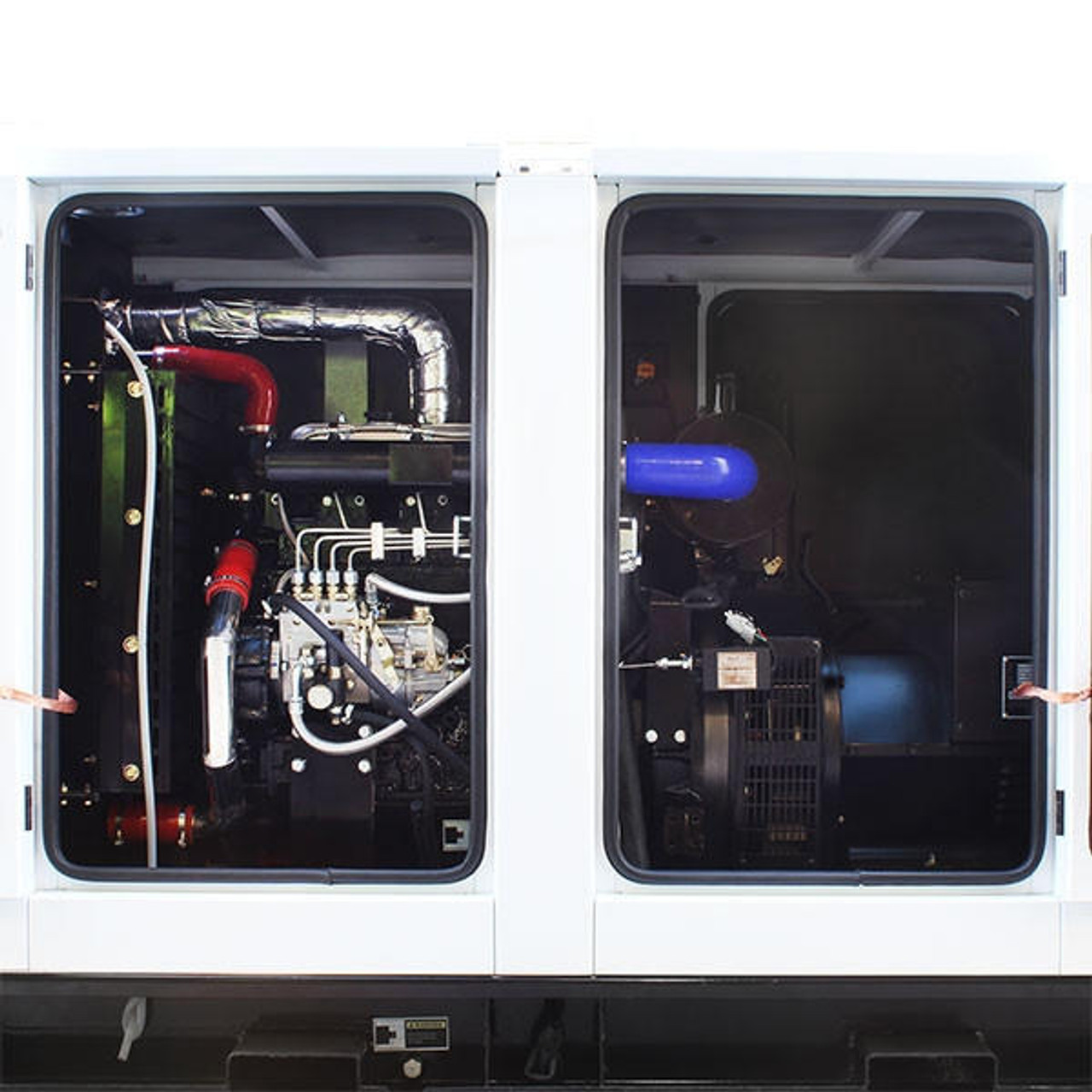

Hyundai Diesel Engine Model HY4DX21-53D
Power Output (kw) 39
Displacement (CC) 3860
No. of Cylinders 4
Displacement (Litres) 3.86
Recommended Oil Type SAE 15W40
Oil Capacity (Litres) 11
Oil Filter Part No. 1012101-A02-0000H
Aspiration Natural
Fuel Regulation/Governor System Electronic
Fuel Consumption (100% Load) [Litres] 10.2
Fuel Filter Part No. 1117101-A01-0001H
Cooling Water
Alternator Model 184J
Breakers 3P+N C63A 100mA
Alternator Type Brushless
Voltage Regulation AVR
Air Filter Part No. DHP-0029-04
Net Weight (kg) 1045
Gross Weight (kg) 1045
Dimensions L x W x H (mm) 2200 x 950 x 1250
Battery System / Starting (V – Ah) 2 x1 2V-45Ah
ATS / MTS Compatible Yes

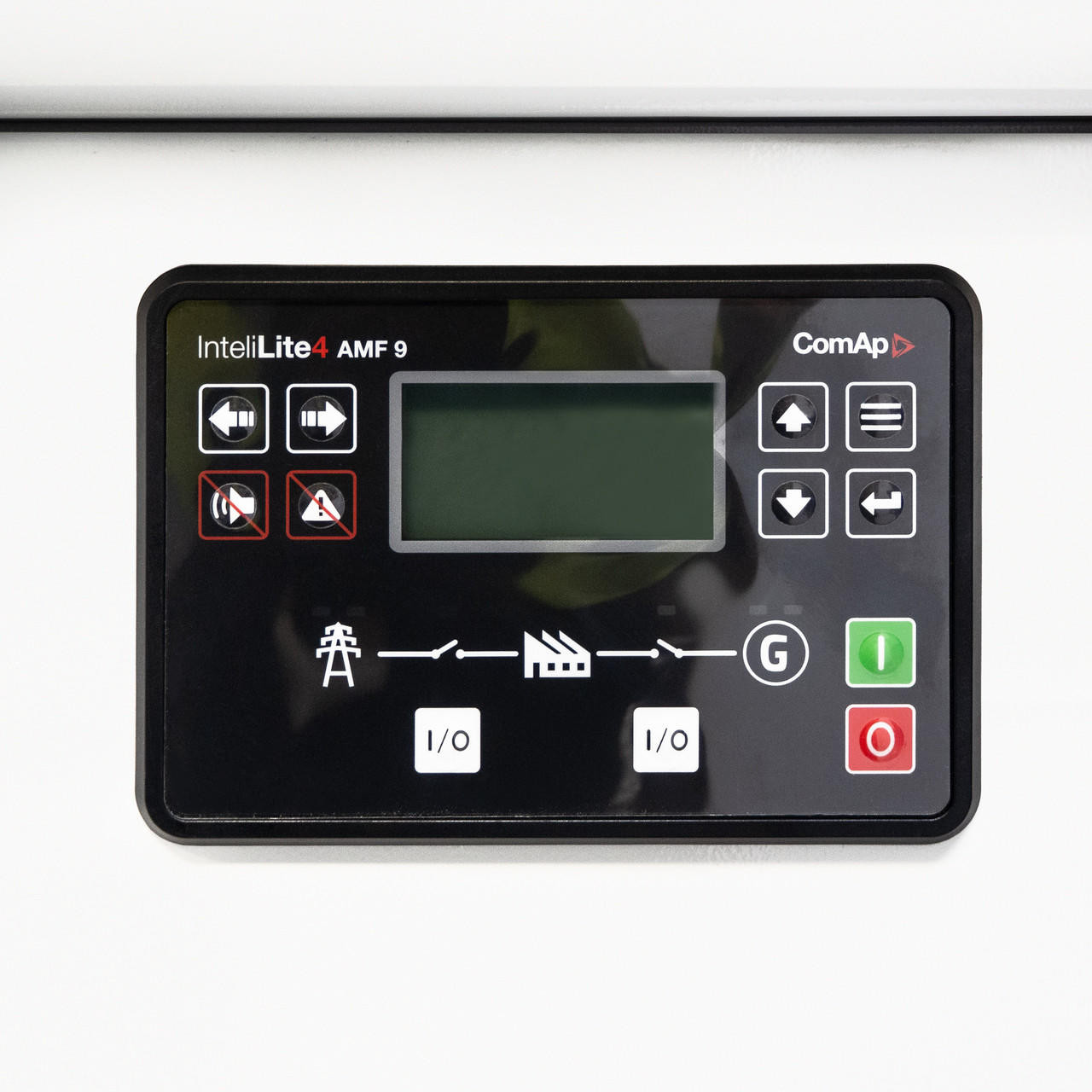

Control Panel ComAp AMF 9

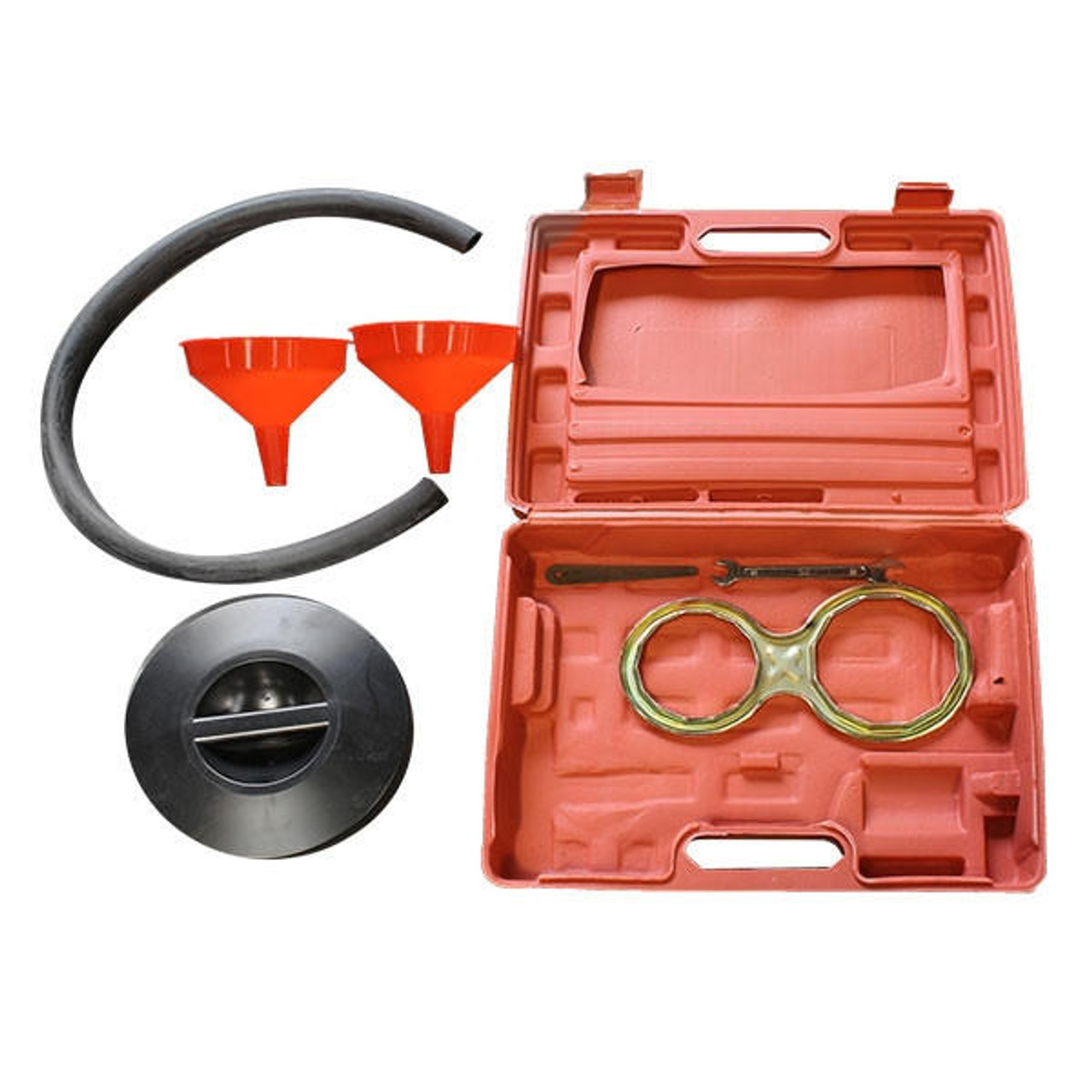

Accessories
Model EAN 700621496298
Warranty 1 Year / 1000 Hours (can extended to 2 years, subject to standby use of 500 hours per year. Terms apply*)
Product Type Diesel Generator
Assembly Required? Yes – some assembly may be required
