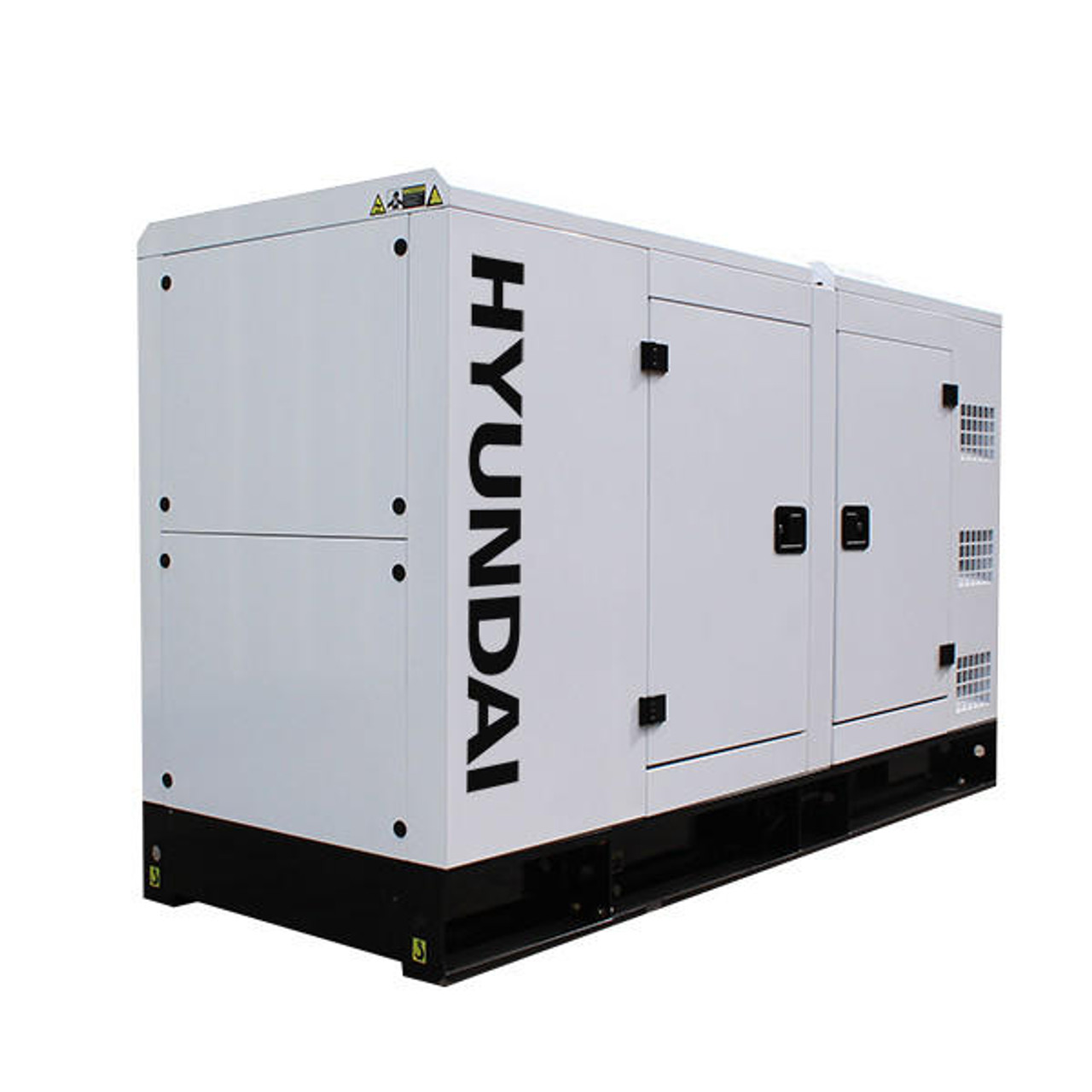

Hyundai DHY85KSE 68kW/85kVa Three Phase Diesel Generator

Description

68kW Three-Phase Diesel Generator
The DHY85KSE is a powerful three-phase diesel generator from Hyundai. Suitable for powering three-phase equipment in your home, business or factory, this diesel genset has a maximum output of 85KVA.
Powerful Hyundai Engine

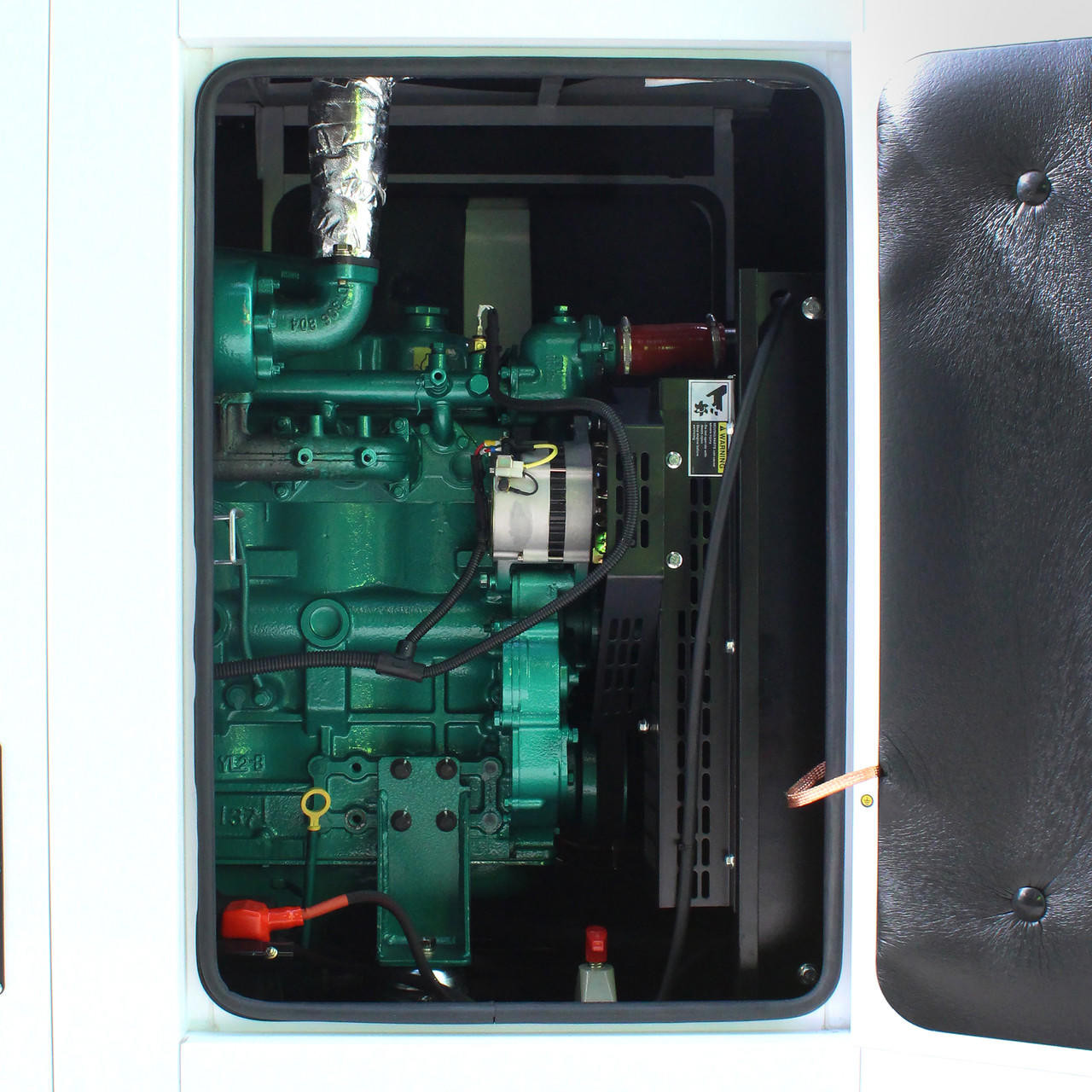

Powered by a HY4A100Z-D20 diesel engine, the DHY85KSE is able to produce a maximum output of 85KVA / 68kW.
Three-Phase Power
3-phase 400/230v generators are generally manufactured to power 400 volt, 3-phase equipment. Even though you can run a small amount of 230v equipment on a solo basis from them, this is not their intended purpose and it can be difficult to ‘balance’ the phases and stop the generator from tripping out.
In order to run 230v output only, and reach the generator’s output capacity, you will need to accurately ‘balance’ the loads on each phase (the amount you are drawing from each phase of electricity).
You can read more about phase imbalance and the pitfalls of running 230v from a 400v generator in our article here.
If you are unsure whether this is the right generator for your application, we advise you to speak to a qualified electrician/generator installer or speak to us for advice.
Fitted with AVR Alternator
Equipped with an AVR alternator to produce clean energy, the DHY85KSE is suitable for powering sensitive electronic equipment, such as TVs, PCs and laptops, in your home or business.
ATS Compatible
The DHY85KSE can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system, which will automatically turn on the generator when a loss of power to the property is detected. When power returns from the mains, the ATS module will then safely turn your generator off.
This is ideal for those who need to guarantee constant power – for example, if you run servers or have refrigeration units.
Silenced Generator
Housed in a weather-proof ‘silenced’ canopy, the DHY85KSE produces only 72dB @ 7 metres which makes it a quiet standby generator that won’t interrupt you at home or work.
Power Cut Protection
Power cuts cost UK businesses millions of pounds every year and a standby generator such as this is designed to protect your revenue. If your business relies on a server room, online sales, refrigeration or freezers, then regular or extended power cuts can be disastrous for your finances.
1500rpm Generator
1500rpm diesel generators are ideal for static installation for daily prime power, as well as for regular standby generator/backup generator use.
1500rpm generators have slower running, water-cooled engines which are less stressed than 3000rpm generators, which make them the best option if you’re going to use your generator as your main power source and will also prolong its lifespan.
Economical Generator
Diesel generators are ideal for backup applications as sometimes petrol can go stale and prevent a generator working. Our diesel generators also run happily on budget-friendly red diesel, without voiding the warranty and making it cost-effective to refuel.
Delivery
Kerbside delivery is included in the price. However, please note that a forklift will be required for unloading.
2 Year Warranty
This 85kVA diesel generator comes with a 2 year Hyundai warranty with full UK parts and service backup for added peace of mind. Read our warranty terms here.
Generator kVA Ratings
All of our generators have a kVA rating that is higher than the kW. This is because we have assumed the appliances you are going to power have a load factor/power factor of 0.8 – therefore the ‘assumed’ kVA rating of the load would be higher. This is industry standard and it is usually best to scope the right unit based on the kW.
Key Features
Three-phase diesel generator: Produces up to 85kVA of power
Powered by a 1500rpm engine: Extends the lifespan of the generator
Fitted with an AVR alternator: Able to produce a clean energy output
Silenced generator: Housed in a weather-proof canopy, producing only 72dB at 7m
ATS compatible: Automatically transfers power to the generator in the event of a power cut
Large fuel tank: For extended running time
Peace of mind: 2 year Hyundai warranty

  • Three-phase diesel generator: Produces up to 85kVA of power
  • Powered by a 1500rpm engine: Extends the lifespan of the generator
  • Fitted with an AVR alternator: Able to produce a clean energy output
  • Silenced generator: Housed in a weather-proof canopy, producing only 72dB at 7m
  • ATS compatible: Automatically transfers power to the generator in the event of a power cut
  • Large fuel tank: For extended running time
  • Peace of mind: 2 year Hyundai warranty

Notify me when this is avaliable

EAN: 600231977364 SKU: DHY85KSE Category:

Specification

Model DHY85KSE
Rated/Prime kVA* 78
Rated/Prime kW 62
Max/Standby kVA* 85
Max/Standby kW 68
Phase Three
Voltage 230 / 400
Connection Method(s) Busbar connection only
Rated Speed (RPM) 1500
Frequency (Hz) 50
Max/Continuous Current (Amps) 123 / 111
Power Factor (Cosφ) 0.8
Fuel/Power Source Diesel
Fuel Tank (Litres) 180
Runtime (Hours) @ 100% Load 10.17
Noise Level @ 1m 75% load (dB) 75
Noise Level @ 7m 75% load (dB) 70
Hyundai Diesel Engine Model HY4A100Z D20
Power Output (kw) 70
Displacement (CC) 4840
No. of Cylinders 4
Displacement (Litres) 4.84
Recommended Oil Type SAE 15W40
Oil Capacity (Litres) 13
Oil Filter Part No. 530-1012240
Aspiration Turbocharged
Fuel Regulation/Governor System Electronic
Fuel Consumption (100% Load) [Litres] 17.7
Fuel Filter Part No. 6105QA-1105300A
Cooling Water
Alternator Model 224G

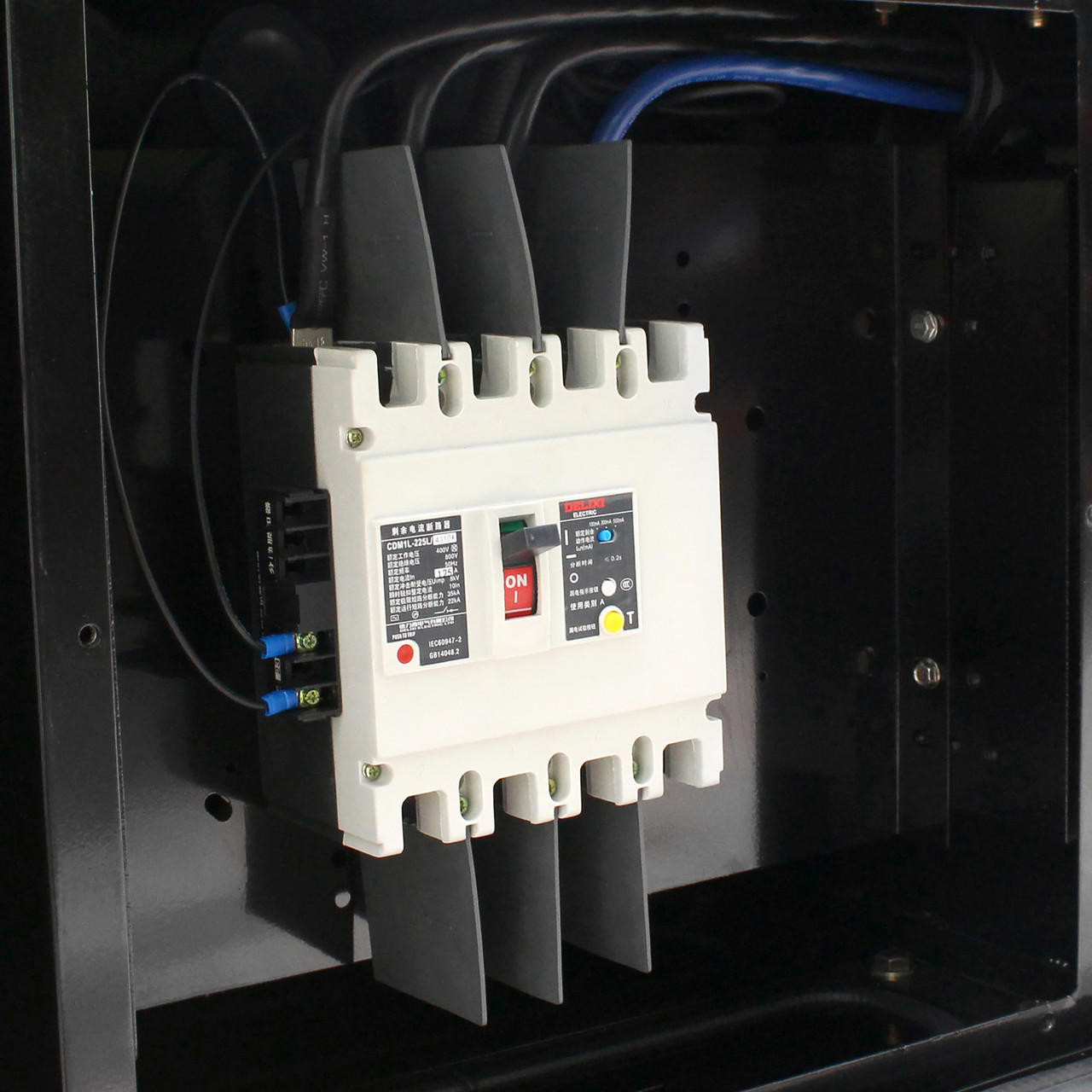

Breakers CDM1L-225L-125A- 4310
Alternator Type Brushless
Voltage Regulation AVR
Air Filter Part No. B9600-1109101*-937
Net Weight (kg) 1450
Gross Weight (kg) 1450
Dimensions L x W x H (mm) 2500 x 950 x 1500
Battery System / Starting (V – Ah) 2 x1 2V-60Ah
ATS / MTS Compatible Yes

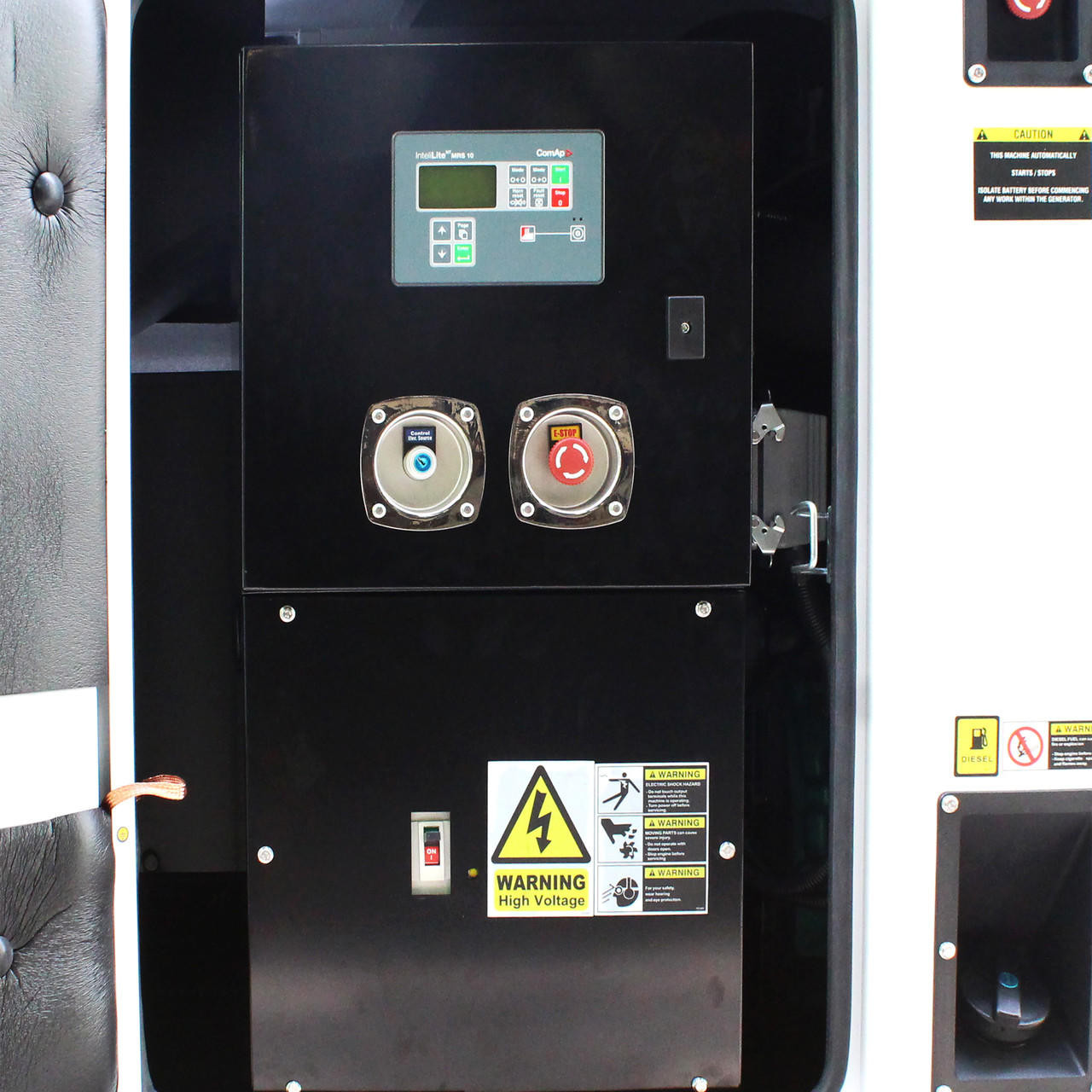

Control Panel ComAp MRS10
Engine Warranty
Alternator Warranty
General Component Warranty
Accessories
Model EAN 600231977364
Warranty 1 Year / 1000 Hours (can extended to 2 years, subject to standby use of 500 hours per year. Terms apply*)
Product Type Diesel Generator
Assembly Required? Yes – some assembly may be required
