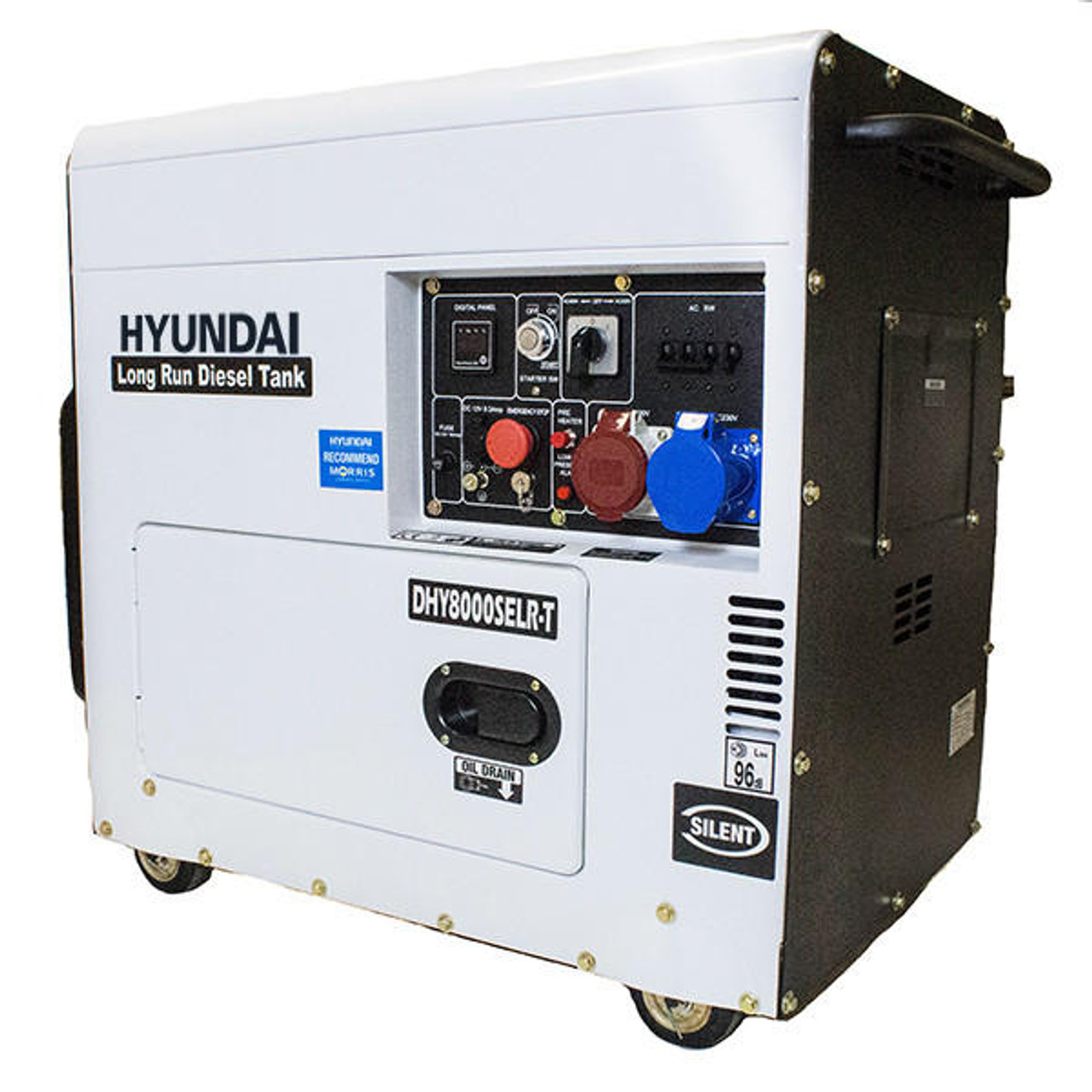

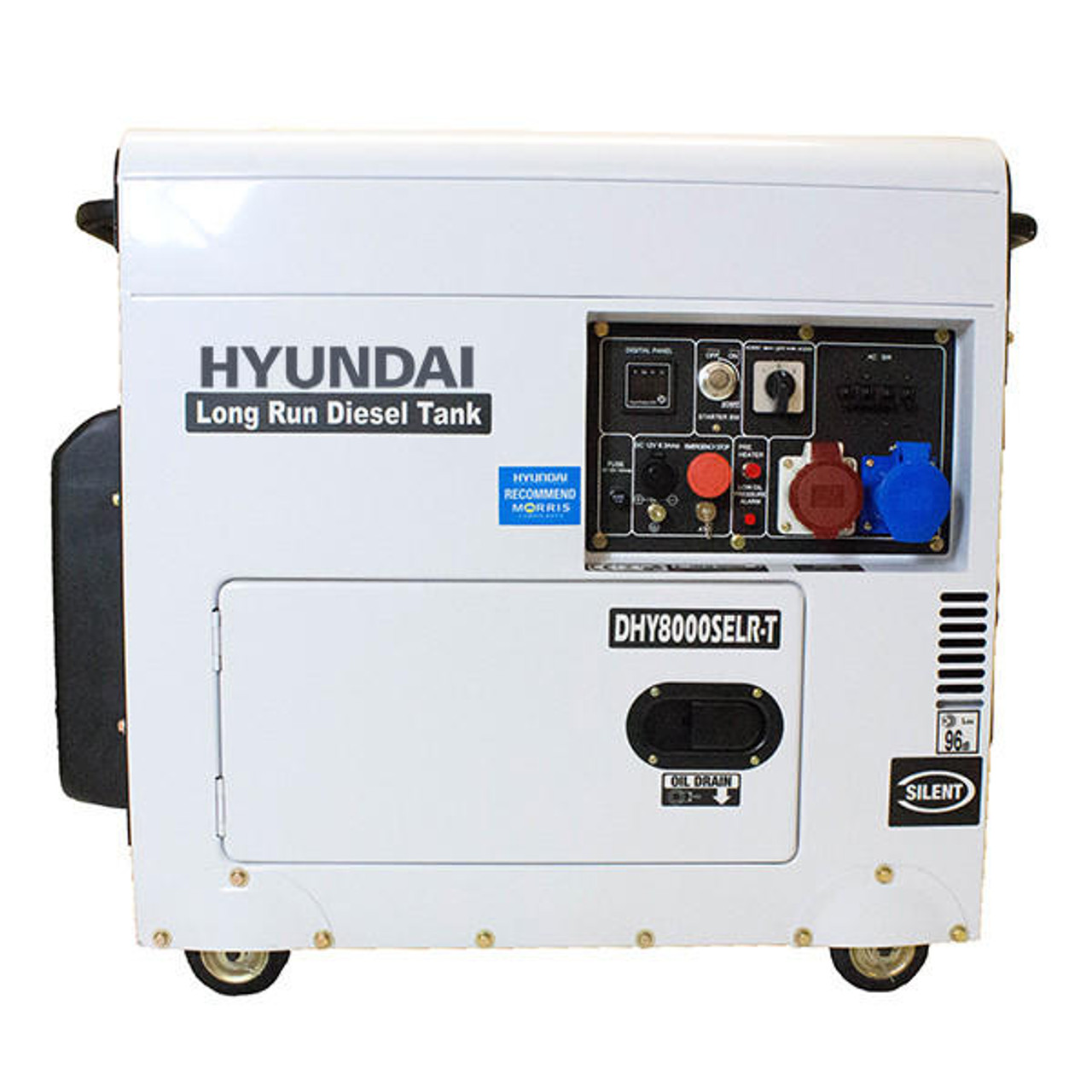

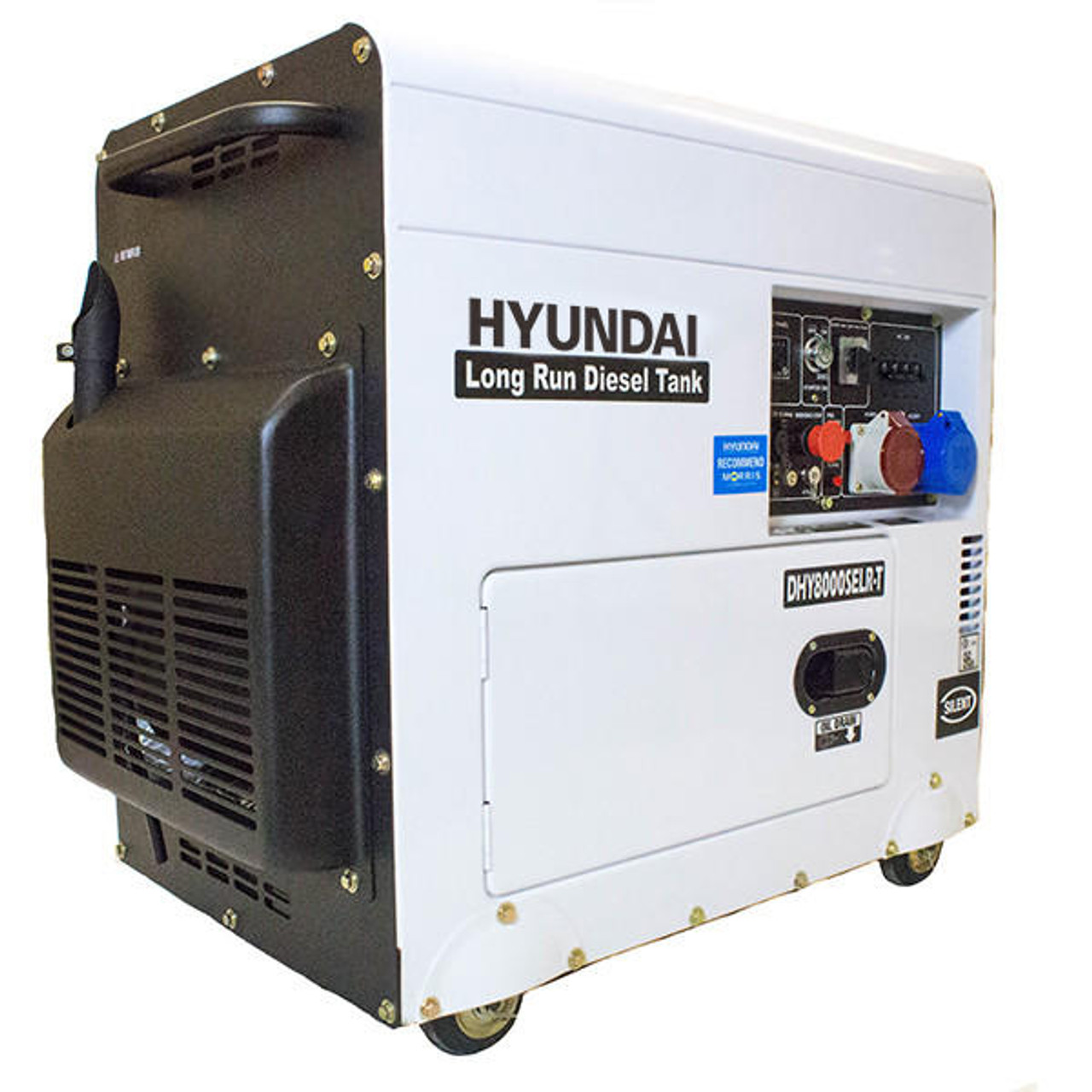

Hyundai DHY8000SELR-T 5.8kW/7.5kVA Multi-phase – Single and Three Phase – Silenced Long Run Standby Diesel Generator

Description

*for single phase kVA is based on an assumed load factor of 0.8.
The DHY8000SELR-T is a compact yet powerful long run standby generator from Hyundai offers either switchable 230v single phase or 400v 3-phase voltages. The DHY8000SELR-T is ideal for workshops, garages and home use.
The large 25L fuel tank increases running time to a maximum of 30 hours, powered by a 4-stroke, air-cooled 456cc single cylinder Hyundai diesel engine, the DHY8000SELR-T has a maximum output of 5.8kW / 7.25kVA.

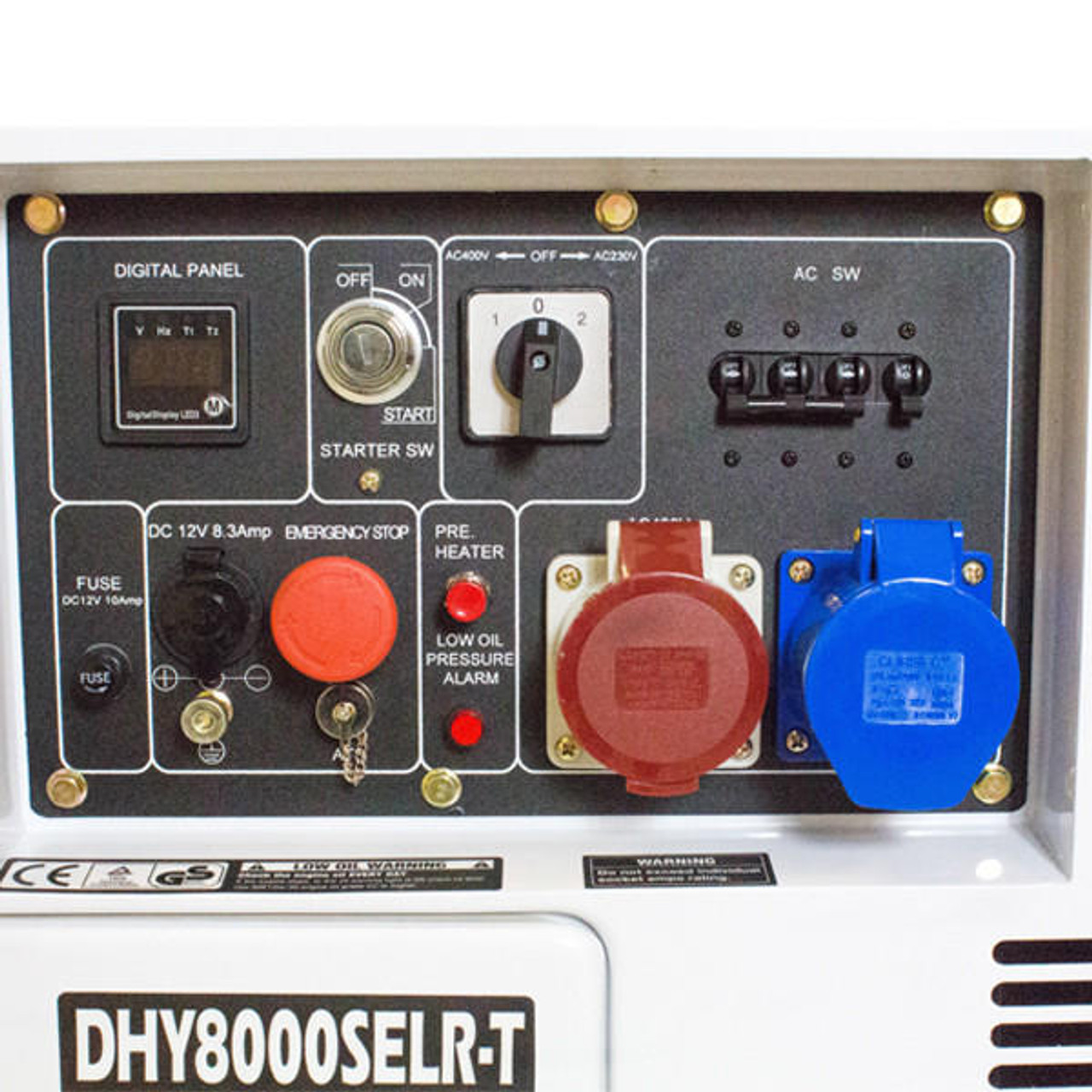

The control panel features 1 x 32A 230v single phase socket and 1 x 16A 400v three phase socket plus a 12v DC battery charging outlet.
An ATS (Automatic Transfer Switch) can be connected to an ATS system for maximum convenience. When the ATS module – sold separately –  detects a loss of power from the mains supply it starts your generator up automatically and switches the supply from mains to generator. When the mains power resumes, it switches back to mains supply and switches the generator off. This electric start diesel generator, can be started with a two wire start function or a simple turn of the key being all that’s required to start or stop the machine when controlled manually.
Housed in silenced casing, the DHY8000SELR-T is an extremely quiet machine and will keep disturbance to a minimum for you, your family or your employees when powering your building. With a sound rating of 70dB @ 7 metres.
The DHY8000SELR-T is economical to run, using roughly 1L of diesel every hour. Since the DHY8000SELR-T can run on red diesel, which is significantly cheaper than the white diesel you put into your car, running costs can be kept to a minimum.
For information on how to properly maintain this diesel generator, please view our diesel generator maintenance checklist here.
In The Box:
Main Unit, 3 Spanners
Screwdriver
12v DC Charging Cable
2 Manual Start Keys
Fuel Filter
1 x 16A 3-phase plug
1 x 32A 230v plug
Service Kit
Warranty
For peace of mind, this generator comes with a Hyundai 1 year / 1,000 hour warranty (whichever comes first), as well as full UK parts backup to maintain your genset for years to come.
Designed for standby use. For Continuous power supply, we recommend a 1500rpm diesel generator.
For the recommended usage of this generator, please see here.
Please note, this is a 3000rpm generator, ideal for backup power in the event of a power cut, or for powering a workshop for example. For more frequent use, or if running for extended periods of time every day (prime power) you should purchase a 1500rpm water-cooled, slow running generator that has a much longer lifespan. For more details on the recommended usage of 3000rpm or 1500rpm generators, please see here.
*All non inverter or converter generators except HY3400 Hirepro:
Fitted with an AVR (Automatic Voltage Regulator) controlled alternator to maintain voltage as near to 230v as possible. Non AVR alternators have a large fluctuation in voltage and can damage sensitive electronic equipment. If you require a portable generator to replicate the mains supply, it is recommended that a pure sine wave inverter generator is used.
*ATS module is sold separately*
ATS Module – Buy Now
Key Features
Equipped with a 25L fuel tank for an increased running time of up to 30 hours.
Multi-phase – Single & Three Phase capabilities, ideal for garages and workshops.
Powered by a 4-stroke, air-cooled Hyundai diesel engine.
Produces a maximum output of 5.8kW / 7.5kVA.
Uses ATS capabilities to automatically start and shutdown during a power cut. ATS sold separately.
Housed in a silenced case with a sound rating of just 70dB @ 7 metres.
Covered by a Hyundai 1 year standard warranty.
Full UK service and parts operation to maintain your generator for years to come.

  • Equipped with a 25L fuel tank for an increased running time of up to 30 hours.
  • Multi-phase – Single & Three Phase capabilities, ideal for garages and workshops.
  • Powered by a 4-stroke, air-cooled Hyundai diesel engine.
  • Produces a maximum output of 5.8kW / 7.5kVA.
  • Uses ATS capabilities to automatically start and shutdown during a power cut. ATS sold separately.
  • Housed in a silenced case with a sound rating of just 70dB @ 7 metres.
  • Covered by a Hyundai 1 year standard warranty.
  • Full UK service and parts operation to maintain your generator for years to come.

£1,399.99

Out of stock

Notify me when this is avaliable

EAN: 600231973434 SKU: DHY8000SELR-T Category:

Specification

Model DHY8000SELR-T
Rated/Prime kVA* 6.3
Rated/Prime kW 5
Max/Standby kVA* 7.25
Max/Standby kW 5.8
Phase Single / 3-Phase
Voltage 230 / 415
Connection Method(s) Sockets – 1 x 400V/16A 1 x 230V/32A
Rated Speed (RPM) 3000
Frequency (Hz) 50
Max/Continuous Current (Amps) 230v 25 / 21 – 400v 10.5 / 9
Power Factor (Cosφ) 1 (Single Phase) / 0.8 (3-Phase)
Fuel/Power Source Diesel
Power Output (hp) @ 3000rpm 9
Engine Displacement (CC) 456
No. of Cylinders 1
Displacement (Litres)
Recommended Oil Type 15w40 / 10w40
Oil Capacity (Litres) 1.65
Oil Filter Part No. D450-B9+D450-B8
Aspiration Natural
Fuel Regulation/Governor System Mechanical
Fuel Consumption (100% Load) [Litres] 1.71
Fuel Filter Part No. D450-R05
Cooling Forced Air-Cooled
Alternator Model D450/500-S01-2
Breakers 3P 9.5A 1P 21A
Alternator Type Brushed
Voltage Regulation AVR
Air Filter Part No. D450-I4
Net Weight (kg) 158
Gross Weight (kg) 167
Wheel Kit? Yes
Dimensions L x W x H (mm) 960 x 560 x 890
Battery (Ah) 12v 36a/h
ATS / MTS Compatible Yes
Control Panel LED3 DISPLAY
Alternator Warranty
General Component Warranty
Accessories
Model EAN 600231973434
Warranty 1 Year / 1000 Hours* (Terms apply)
Brand Hyundai
Condition New
