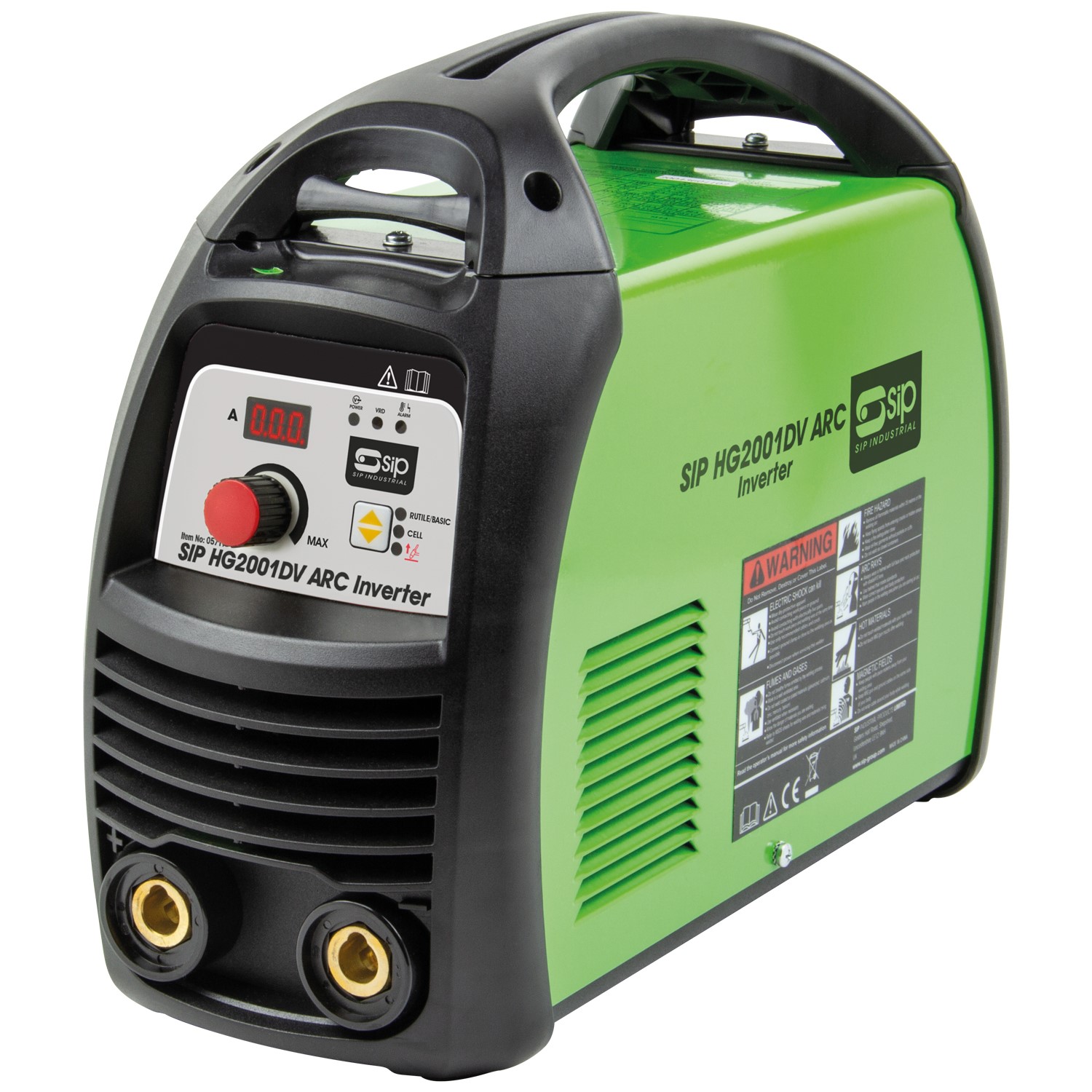

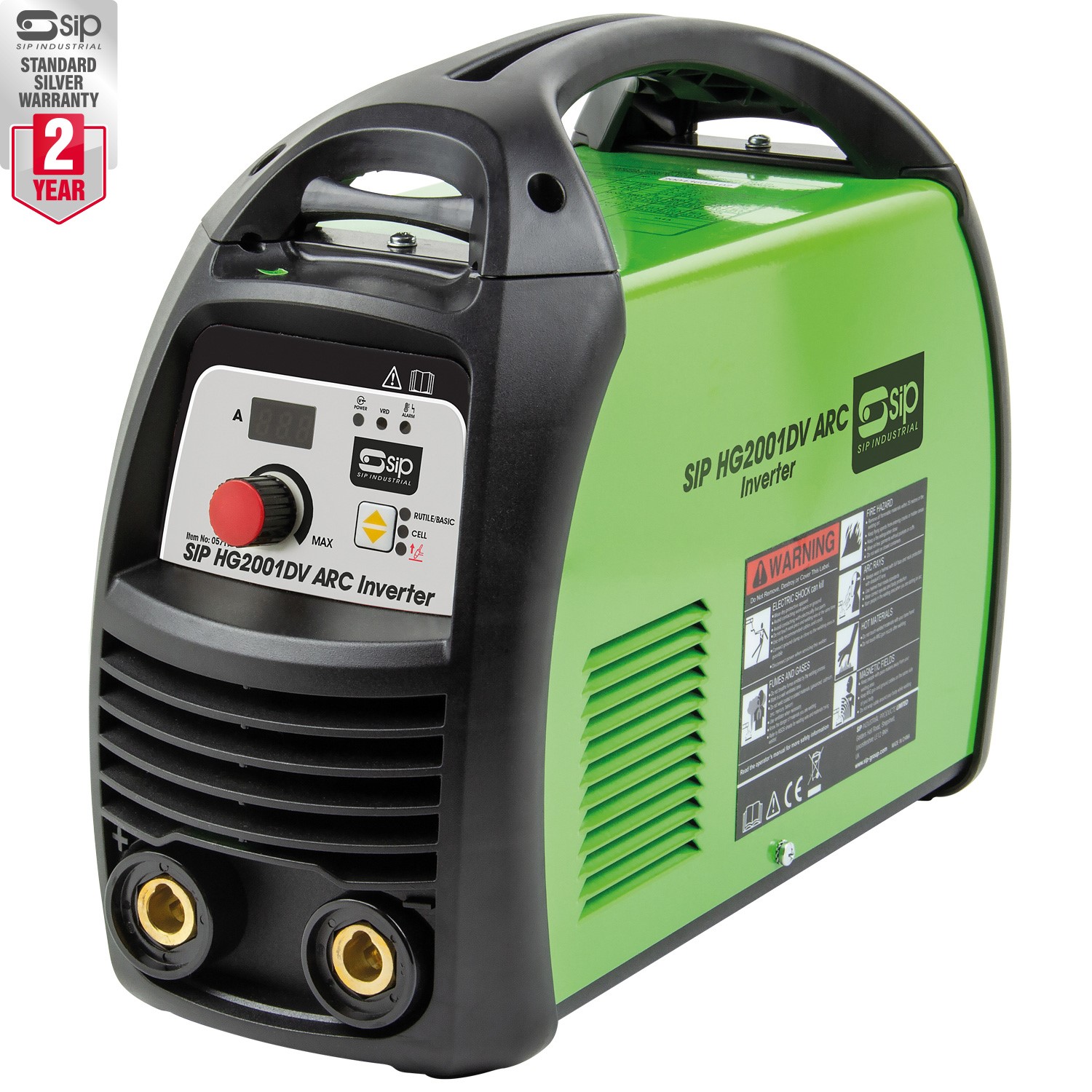

SIP HG2001DV ARC Inverter Welder


The SIP HG2001DV ARC Inverter Welder is built with Power Factor Correction (PFC) to help reduce mains power consumption and is incorporated in it’s electronic design, and offers other benefits including Hot Start, Arc Force, and electrode selection.

  • 20A to 120A (110v) / 20A to 200A (230v) output current
  • Reliable and switchable Voltage Reduction Device (VRD)
  • Electrode selection from Rutile / Basic to Cellulosic
  • Generator-friendly for suitability in all environments
  • Lift-TIG start function and anti-stick circuitry
  • SIP 2-YEAR


In stock

EAN: 5012713057177 SKU: 05717 Category:


ITEM NO. 05717
Input Supply: 230v (32A) / 110v (16A)
Output Current: 20A – 200A (230v) / 20A – 120A (110v)
Output Voltage: 20.8v – 28v (230v) (ARC) / 20.8v – 24.8v (110v) (ARC) / 10.8v – 18v (230v) (TIG) / 10.8v – 14.8v (110v) (TIG)
Duty Cycle: 200A @ 40% (230v) / 120A @ 40% (110v)
Electrode Diameter: Ø 1.6mm – 5mm (230v) / Ø 1.6mm – 3.2mm (110v)
Welding Thickness: 1.5mm – 9mm (230v) / 1.5mm – 5mm (110v)
Open Circuit Voltage: 90v
Power Factor: 0.99
Efficiency Level: 85%
Protection Level: IP21S
Insulation Class: Class H
Product Weight: 6.60 kg
